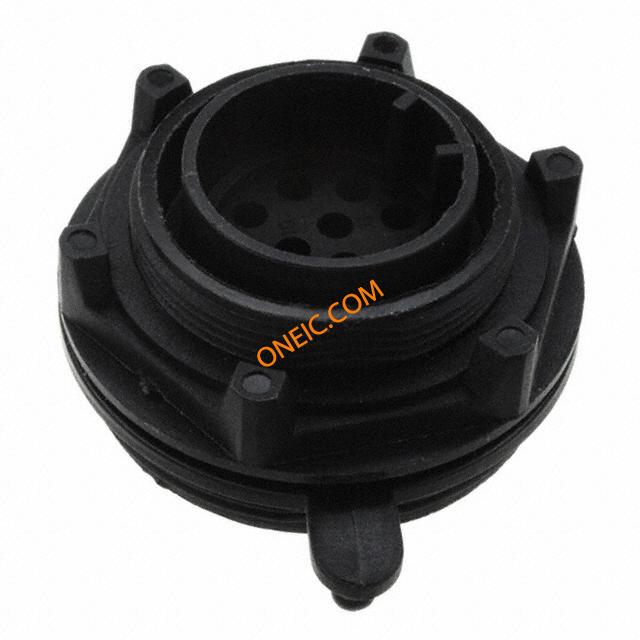

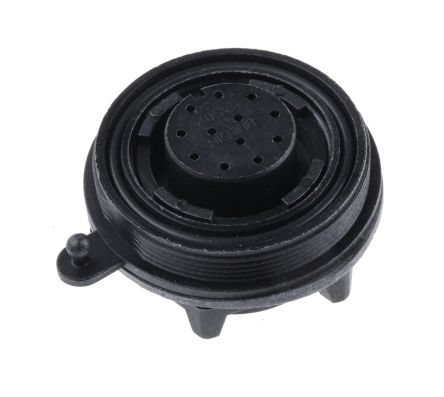

PX0796/S
| 制造商 | Bulgin |
| 描述 | Standard Circular Connector 12 POLE CHAS MT SKT CRIMP/SOLDER CONN HSNG RCPT JAM NUT 12POS SKT 12 Pole Straight Panel Mount Industrial & Automation Circular Connector with Female Contacts Buccaneer Series SOCKET, PANEL, 12WAY Connector,CircularIP68;12;Crimp/Solder;5A;50VAC/VDC;lt5Milliohms Bulgin Buccaneer 系列 12路 面板安装 直向 连接器 , 母触点 |
| 分类 |
商业参数
| 产品类别 | Standard Circular Connector | 标准包装数量 | 25 |
| 工厂包装数量 | 25 | ||
合规参数
| RoHS | Compliant | SVHC | :No SVHC (19-Dec-2012) |
| 海关税号 | 85369010 | 认证机构 | :CSA, UL, VDE |
| 材料阻燃等级 | :UL94V-0 | ||
电气参数
| 额定电压 | 50 V ac/dc | 工作电压 | :50V |
| 接触电阻 | :5mohm | 最大额定电流 | 5A |
| 绝缘电阻 | :100Mohm | ||
机械参数
| 重量 | 0.014 | 包装方式 | Bulk |
| 导线线规 | 22-26 | 方向 | Keyed |
| 外壳样式 | Receptacle | 端接方式 | Crimp, Solder |
| 触头类型 | Crimp and Solder Cup | 安装类型 | Panel Mount |
| 行程角度 | Straight | 电缆直径 | 6-8mm |
| 连接器类型 | Receptacle for Female Contacts | 接触镀层 | Gold over Nickel |
| 紧固类型 | Threaded | 安装样式 | Panel |
| 插入角度 | :- | 本体材料 | :Nylon (Polyamide) |
| 触头材料 | Copper Alloy | 壳体材料 | GlassFilledPolyamide |
| 主要材料 | Sealed | 端接样式 | Crimp / Solder |
| 第一触头极性 | Female | 连接器颜色 | :Black |
| 配接方向 | Threaded | 触点数 | 12 |
| 介电材料 | Polyamide | 位数 | 12 |
| 外壳尺寸-插件 | :- | 外壳材料及表面处理 | Polyamide, Glass Filled |
| 第一连接器安装类型 | :Panel | 外径-未扩张 | :8.1mm |
产品信息
| 备注 | Contacts Not Provided | 类型 | PanelSocket |
| 连接器性别 | :Receptacle | 系列 | Buccaneer |
| 产品子类型 | Connectors | ||
环境参数
| NEMA 机架尺寸 | :IP68 | 防护等级 | IP68/69K - Dust Tight, Waterproof |
| 工作温度 | +70°C | ||
