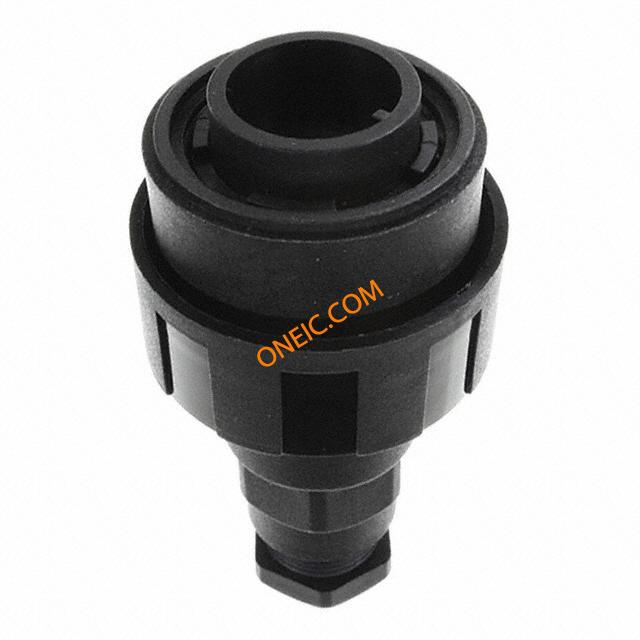

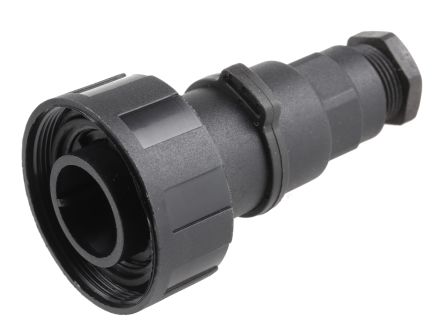

PX0794/P
| 制造商 | Bulgin |
| 描述 | Standard Circular Connector 12 POLE FLEX PLUG CRIMP/SOLDER CONN HSNG PLUG 12POS CABLE PIN 12 Pole Straight Cable Mount Industrial & Automation Circular Connector with Male Contacts Buccaneer Series Conn Buccaneer PIN 12 POS Crimp/Solder ST Cable Mount 12 Terminal 1 Port PLUG, FREE, 12WAY CONN HSNG PLUG 12POS INLINE PIN Connector,CircularIP68;12;Crimp/Solder;5A;50VAC/VDC;lt5Milliohms Bulgin Buccaneer 系列 12路 电缆安装 直向 连接器 , 公触点 |
| 分类 |
商业参数
| 产品类别 | Standard Circular Connector | 标准包装数量 | 25 |
| 工厂包装数量 | 25 | ||
合规参数
| RoHS | Compliant | SVHC | :No SVHC (19-Dec-2012) |
| 海关税号 | 85369010 | 认证机构 | :CSA, UL, VDE |
| 材料阻燃等级 | :UL94V-0 | ||
电气参数
| 额定电压 | 50 V ac/dc | 工作电压 | :50V |
| 接触电阻 | :5mohm | 最大额定电流 | 5A |
| 绝缘电阻 | :100Mohm | ||
机械参数
| 重量 | 0.026 | 包装方式 | Bulk |
| 导线线规 | 22-26 | 方向 | Keyed |
| 外壳样式 | Plug | 端接方式 | Crimp, Solder |
| 触头类型 | Crimp and Solder Cup | 安装类型 | Free Hanging (In-Line) |
| 行程角度 | Straight | 电缆直径 | 6-8mm |
| 连接器类型 | Plug for Male Contacts | 接触镀层 | Gold over Nickel |
| 紧固类型 | Threaded | 安装样式 | Free Hanging |
| 插入角度 | :- | 本体材料 | :Nylon (Polyamide) |
| 触头材料 | Copper Alloy | 壳体材料 | GlassFilledPolyamide |
| 主要材料 | Sealed | 端接样式 | Crimp / Solder |
| 第一触头极性 | Male | 连接器颜色 | :Black |
| 配接方向 | Threaded | 触点数 | 12 |
| 介电材料 | Polyamide | 位数 | 12 |
| 外壳尺寸-插件 | :- | 外壳材料及表面处理 | Polyamide, Glass Filled |
| 第一连接器安装类型 | :Cable | 外径-未扩张 | :8.1mm |
产品信息
| 备注 | Contacts Not Provided | 类型 | CablePlug |
| 连接器性别 | :Plug | 系列 | Buccaneer |
| 产品特性 | ScrewLocking | 产品子类型 | Connectors |
环境参数
| NEMA 机架尺寸 | :IP68 | 防护等级 | IP68/69K - Dust Tight, Waterproof |
| 工作温度 | +70°C | ||
文档与媒体
相关型号
12023
Bulgin
Cable Mounting & Accessories CABLE GLAND 6-8MM COLOR BLACK SEALING GLAND BLACK

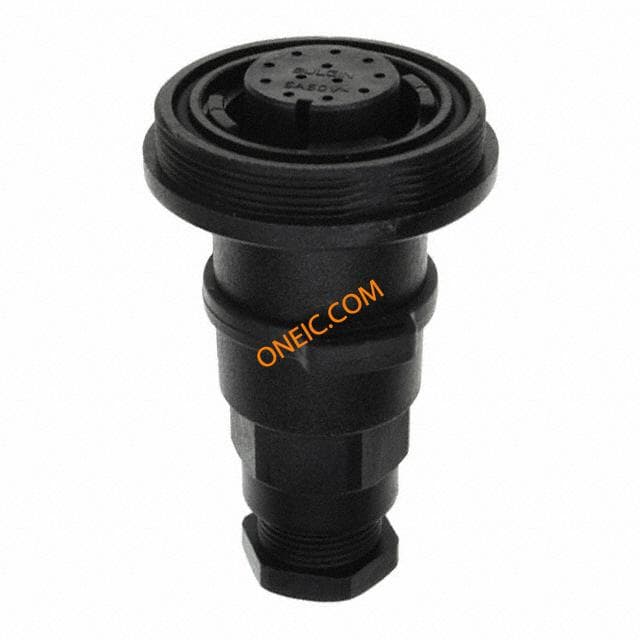

PX0795/S
Bulgin
Standard Circular Connector 12 POLE IN-LINE SKT CRIMP/SOLDER CONN HSNG RCPT 12POS INLINE SKT 12 Pole Straight Cable Mount Industrial & Automation Circular Connector with Female Contacts Buccaneer Series Conn Buccaneer SKT 12 POS Crimp/Solder ST Cable Mount 12 Terminal 1 Port SOCKET, INLINE, 12WAY Connector,CircularIP68;12;Crimp/Solder;5A;50VAC/VDC;lt5Milliohms Bulgin Buccaneer 系列 12路 电缆安装 直向 连接器 , 母触点
PX0708/S/12
Bulgin
Standard Circular Connector 12 P REAR PNL MNT SOCKET/CRIMP/SOLDER CONN HSNG RCPT 12POS JAM NUT SKT
PX0734
Bulgin
Standard Circular Connector SEALING CAP CONN CAP SEALING FOR USE W/CABLE Sealing Cap Tool CAP/ASSEMBLY TOOL Cap,Sealing;FitsflexMountingtypes,Buccaneer Protection cover; external thread; Buccaneer Standard; IP68 Protective cap, PX0734, Bulgin Bulgin 外壳
.JPG&w=3840&q=75)
SA3348/1
Bulgin
Standard Circular Contacts SOLDERPIN 4-8P 22AWG 1 = 1 PKT of 10/pcs CONT PIN 5A SLD 22-26AWG 1=10PC 5A solder pin contact,22-26awg Contact PIN Solder ST Cable Mount PIN, SOLDER, 22-26AWG CIRCULAR CONTACT, PIN, 26-22AWG, SOLDER Contacts,solderpins,12way,5A,50V,packof10 Contact; male; 22÷26AWG; Buccaneer 400; gold plated; soldering Soldering contact, male, for 4, 6 and 8-pole, SA3348/1, Bulgin Bulgin 400 系列 5A 公 焊接端接 圆形 连接器 触芯, 使用于Buccaneer 400 系列圆形连接器, 26 → 22 AWG 线规格
PX0733
Bulgin
Standard Circular Connector SEALING CAP CONN CAP SEALING FOR W/ALL OTHER Sealing cap for chassis connector Connector Accessories USB Sealing Cap SEALING CAP, FOR PX0847 CONNECTOR Cap,Sealing;Fitspanelmountandflex-in-lineconnector;Buccaneer Protection cover; Buccaneer Standard; IP68; internal thread Protective cap, PX0733, Bulgin Bulgin 插座 IP68 防尘盖
PX0796/S
Bulgin
Standard Circular Connector 12 POLE CHAS MT SKT CRIMP/SOLDER CONN HSNG RCPT JAM NUT 12POS SKT 12 Pole Straight Panel Mount Industrial & Automation Circular Connector with Female Contacts Buccaneer Series SOCKET, PANEL, 12WAY Connector,CircularIP68;12;Crimp/Solder;5A;50VAC/VDC;lt5Milliohms Bulgin Buccaneer 系列 12路 面板安装 直向 连接器 , 母触点
SA3348
Bulgin
Standard Circular Contacts CRIMP PIN 4-8P 22AWG 1 = 1 PKT of 10/pcs CONT PIN 5A 22-26AWG CRMP 1=10PC Bulgin 400 Series Gold Plated Crimp Pin Connector, 26 to 22AWG Contact PIN Crimp ST Cable Mount CIRCULAR CONTACT, PIN, 26-22 AWG, CRIMP Contacts,CrimpPin,4&8Pole Crimp contact, male, for 4, 6 and 8-pole, SA3348, Bulgin Bulgin 400 系列 公 压接端接 圆形 连接器 触芯, 使用于Buccaneer 400 系列连接器, 26 → 22 AWG 线规格
12237
Bulgin
Standard Circular Connector STR REL 5-7 & 7-9MM CABLE SUPPORT FOR STD BUCCANEER Cable strain relief for IP68 connector STRAIN RELIEF, BUCCANEER CableSupport;BuccaneerSuitablefor5-7mmand7-9mmcablediameters Bend protection; Buccaneer Standard; IP68; 5÷7mm Anti-kink sleeve for for cable 5...9 mm, 12237, Bulgin Bulgin 应变消除, 使用于Buccaneer 系列

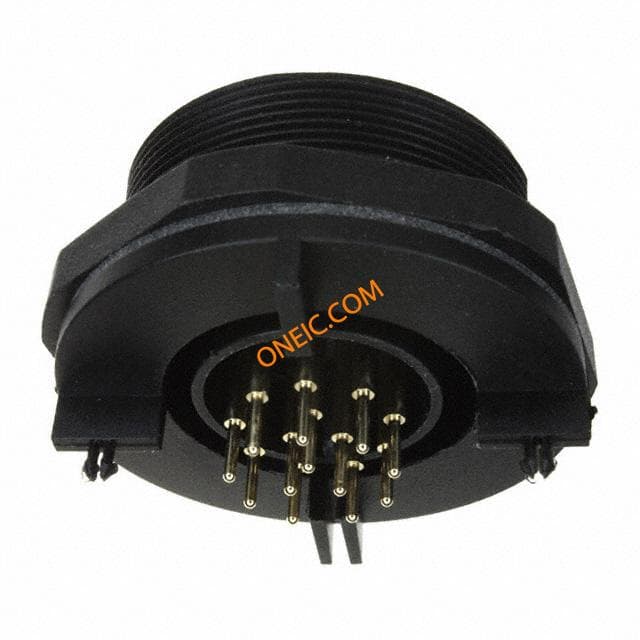

PX0707/S/12
