点击放大查看

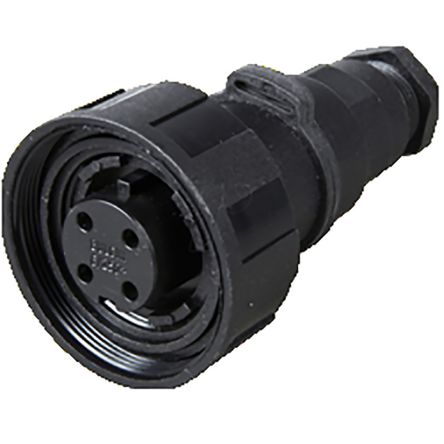

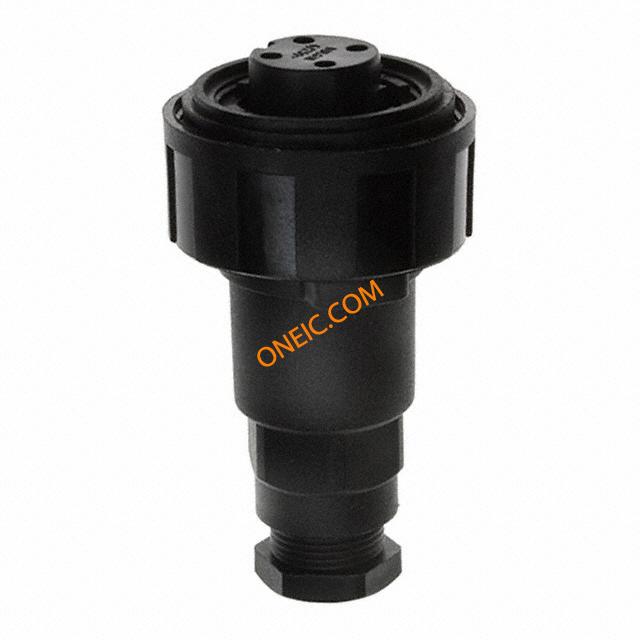

PX0748/S
| 制造商 | Bulgin |
| 描述 | Standard Circular Connector 4 POLE FLEX SKT CONN PLUG 4POS CABLE SKT 4 Pole Straight Cable Mount Industrial & Automation Circular Connector with Female Contacts Buccaneer Series Conn Buccaneer SKT 4 POS Screw ST Cable Mount 4 Terminal 1 Port SOCKET, FREE, 4 POLE CONN PLUG 4POS INLINE SKT Connector,StandardBuccaneer;Socket;4;69.0mm;38.1mm;3.5to9mm;6A Connector: circular; plug; female; PIN:4; Buccaneer Standard; IP68 Bulgin Buccaneer 系列 4路 电缆安装 直向 连接器 插座 |
| 分类 |
商业参数
| 产品类别 | Standard Circular Connector | 标准包装数量 | 25 |
| 工厂包装数量 | 25 | ||
合规参数
| RoHS | Compliant | SVHC | :No SVHC (19-Dec-2012) |
| 海关税号 | 85369010 | 认证机构 | ULRecognized/CSA/VDE |
| 材料阻燃等级 | :UL94V-0 | ||
电气参数
| 额定电压 | 277VAC/DC | 工作电压 | :250V |
| 接触电阻 | :10mohm | 最大额定电流 | 10A |
| 绝缘电阻 | :100Mohm | ||
机械参数
| 长度 | :65mm | 重量 | 0.032 |
| 材料（通用） | :Glass Filled Nylon | 包装方式 | Bulk |
| 导线线规 | 16 | 方向 | Keyed |
| 外壳样式 | Receptacle | 端接方式 | Screw |
| 触头类型 | Socket | 基体材料 | polyamide |
| 安装类型 | Free Hanging (In-Line) | 行程角度 | Straight |
| 电缆直径 | 6-8mm | 连接器类型 | Plug, Female Sockets |
| 接触镀层 | Nickel | 紧固类型 | Threaded |
| 安装样式 | Free Hanging | 插入角度 | :- |
| 锁定特性 | threaded joint, internal thread | 本体材料 | :Glass Filled Nylon (Polyamide) |
| 触头材料 | Brass | 壳体材料 | GlassFilledPolyamide |
| 包装数量 | 25 | 主要材料 | Sealed |
| 连接器 - 电缆 | plug | 端接样式 | Screw |
| 第一触头极性 | Female | 连接器颜色 | :Black |
| 外径 | :38.1mm | 配接方向 | Threaded |
| 触点数 | 4 | 接触件端接 | :Screw |
| 介电材料 | Polyamide | 位数 | 4 |
| 外壳尺寸-插件 | :- | 外壳材料及表面处理 | Polyamide, Glass Filled |
| 第一连接器安装类型 | :Cable | 外径-未扩张 | :8.1mm |
产品信息
| SPG | 25 | 类型 | CableSocket |
| 连接器性别 | :Receptacle | 系列 | Buccaneer |
| 产品特性 | ScrewLocking | 产品子类型 | Connectors |
| 适配器系列 | Buccaneer Standard | 单元数量 | 1 |
环境参数
| NEMA 机架尺寸 | :IP68 | 防护等级 | IP68/69K - Dust Tight, Waterproof |
| 工作温度 | -20°C ~ 70°C | ||
文档与媒体
相关型号
12023
Bulgin
Cable Mounting & Accessories CABLE GLAND 6-8MM COLOR BLACK SEALING GLAND BLACK
13826
Bulgin
Crimpers CRIMP TOOL 9 WAY TOOL HAND 9POS CRIMP Tool; Crimp; 9; Inserting and Extracting 25 Way Contacts Crimp Tools For 3, 9,12 And 25 Pole Crimp Contacts Tool,Crimp;9;InsertingandExtracting25WayContacts Bulgin Standard Buccaneer 系列 9 触点 压接工具 压接工具
PX0734
Bulgin
Standard Circular Connector SEALING CAP CONN CAP SEALING FOR USE W/CABLE Sealing Cap Tool CAP/ASSEMBLY TOOL Cap,Sealing;FitsflexMountingtypes,Buccaneer Protection cover; external thread; Buccaneer Standard; IP68 Protective cap, PX0734, Bulgin Bulgin 外壳
SA3253
Bulgin
Standard Circular Connector GLAND 3 PACK 3.5-5MM 5-7MM & 7-9MM STANDARD BUCCANEER GLAND PACK Gland pack Cable Accessories Gland CABLE GLAND, CLAMP STANDARD CableGland(Clamp);3/pk Gaskets set; Buccaneer Standard; IP68; 3.5÷9mm Bulgin 电缆固定头 , -20°C至+70°C
PX0733
Bulgin
Standard Circular Connector SEALING CAP CONN CAP SEALING FOR W/ALL OTHER Sealing cap for chassis connector Connector Accessories USB Sealing Cap SEALING CAP, FOR PX0847 CONNECTOR Cap,Sealing;Fitspanelmountandflex-in-lineconnector;Buccaneer Protection cover; Buccaneer Standard; IP68; internal thread Protective cap, PX0733, Bulgin Bulgin 插座 IP68 防尘盖
PX0748/S
Bulgin
Standard Circular Connector 4 POLE FLEX SKT CONN PLUG 4POS CABLE SKT 4 Pole Straight Cable Mount Industrial & Automation Circular Connector with Female Contacts Buccaneer Series Conn Buccaneer SKT 4 POS Screw ST Cable Mount 4 Terminal 1 Port SOCKET, FREE, 4 POLE CONN PLUG 4POS INLINE SKT Connector,StandardBuccaneer;Socket;4;69.0mm;38.1mm;3.5to9mm;6A Connector: circular; plug; female; PIN:4; Buccaneer Standard; IP68 Bulgin Buccaneer 系列 4路 电缆安装 直向 连接器 插座
12237
Bulgin
Standard Circular Connector STR REL 5-7 & 7-9MM CABLE SUPPORT FOR STD BUCCANEER Cable strain relief for IP68 connector STRAIN RELIEF, BUCCANEER CableSupport;BuccaneerSuitablefor5-7mmand7-9mmcablediameters Bend protection; Buccaneer Standard; IP68; 5÷7mm Anti-kink sleeve for for cable 5...9 mm, 12237, Bulgin Bulgin 应变消除, 使用于Buccaneer 系列

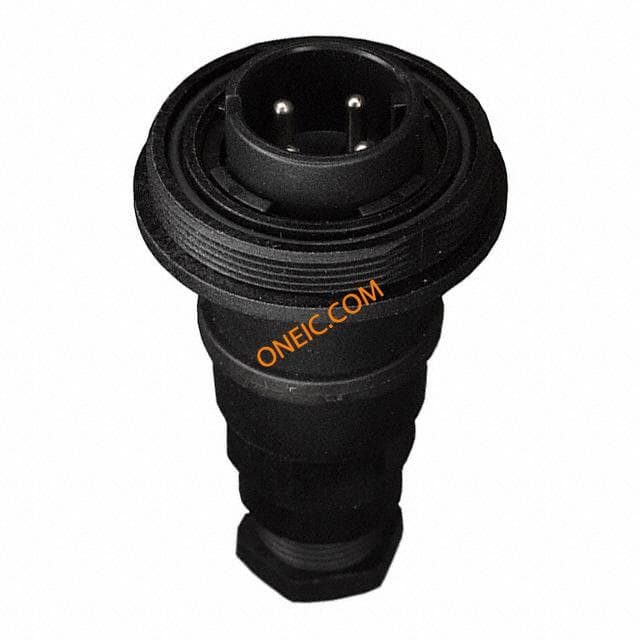

PX0749/P
