点击放大查看

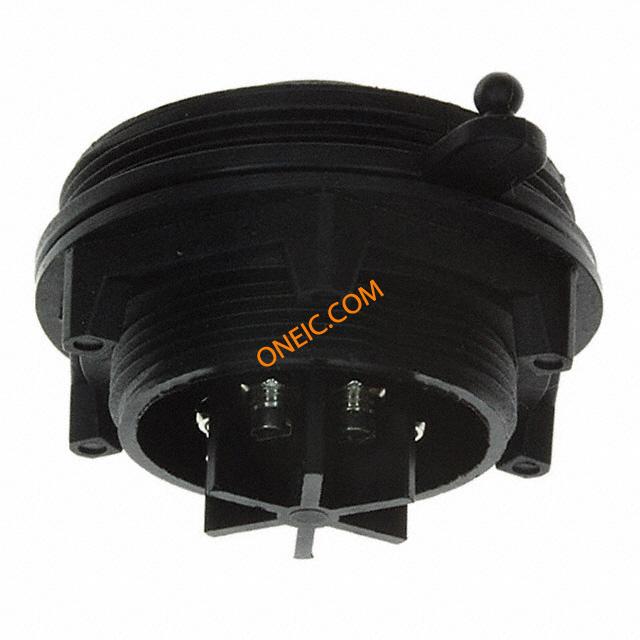

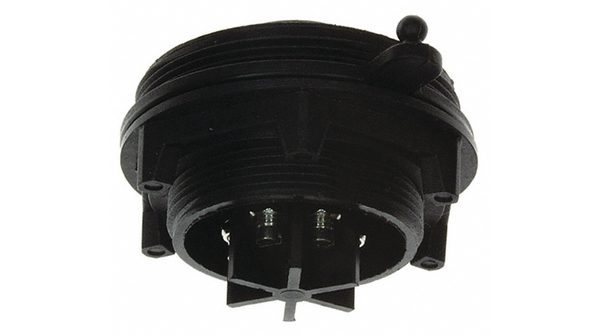

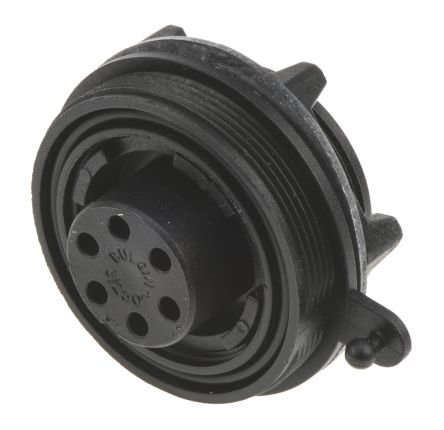

PX0738/S
| 制造商 | Bulgin |
| 描述 | Standard Circular Connector 6 POLE CHAS MT SKT CONN RCPT 6POS PNL MNT SKT 6 Pole Straight Panel Mount Industrial & Automation Circular Connector with Female Contacts Buccaneer Series Conn Buccaneer SKT 6 POS Screw ST Panel Mount 6 Terminal 1 Port SOCKET, SEALED PANEL, 6WAY Connector;Socket;6;16AWG;Screw;3A;250V;10Milliohms(Max.);Panel Connector: circular; socket; female; PIN:6; Buccaneer Standard Device bushing Buccaneer, 6-pin 6, PX0738/S, Bulgin Bulgin Buccaneer 系列 6路 面板安装 直向 连接器 插座 |
| 分类 |
商业参数
| 产品类别 | Standard Circular Connector | 标准包装数量 | 25 |
| 工厂包装数量 | 25 | ||
合规参数
| RoHS | Compliant | SVHC | :No SVHC (19-Dec-2012) |
| 海关税号 | 85369010 | 认证机构 | ULRecognized/CSA/VDE |
| 材料阻燃等级 | :UL94V-0 | ||
电气参数
| 额定电压 | 277VAC/DC | 工作电压 | :250V |
| 接触电阻 | :10mohm | 最大额定电流 | 5A |
| 绝缘电阻 | :100Mohm | ||
机械参数
| 高度 | :28mm | 长度 | :28mm |
| 重量 | 0.022 | 材料（通用） | :Glass Filled Nylon |
| 包装方式 | Bulk | 导线线规 | 16 |
| 方向 | Keyed | 外壳样式 | Receptacle |
| 端接方式 | Screw | 触头类型 | Socket |
| 安装类型 | Panel Mount | 外壳镀层 | Nickel |
| 行程角度 | Straight | 电缆直径 | 6-8mm |
| 连接器类型 | Receptacle, Female Sockets | 接触镀层 | Nickel |
| 紧固类型 | Threaded | 安装样式 | Panel |
| 插入角度 | :- | 锁定特性 | threaded joint, external thread |
| 本体材料 | :Glass Filled Nylon (Polyamide) | 面板厚度 | :6.4mm |
| 触头材料 | Brass | 壳体材料 | GlassFilledPolyamide |
| 包装数量 | 25 | 主要材料 | Sealed |
| 连接器 - 电缆 | socket | 端接样式 | Screw |
| 第一触头极性 | Female | 连接器颜色 | :Black |
| 外径 | :38.1mm | 配接方向 | Threaded |
| 触点数 | 6 | 接触件端接 | :Screw |
| 介电材料 | Polyamide | 位数 | 6 |
| 外壳尺寸-插件 | :- | 外壳材料及表面处理 | Polyamide, Glass Filled |
| 外壳与棱镜材料 | polyamide | 第一连接器安装类型 | :Panel |
| 外径-未扩张 | :8.1mm | ||
产品信息
| SPG | 25 | 类型 | PanelSocket |
| 连接器性别 | :Receptacle | 系列 | Buccaneer |
| 产品子类型 | Connectors | 适配器系列 | Buccaneer Standard |
| 单元数量 | 1 | ||
环境参数
| NEMA 机架尺寸 | :IP68 | 防护等级 | IP68/69K - Dust Tight, Waterproof |
| 工作温度 | -20°C ~ 70°C | ||
文档与媒体
相关型号
12023
Bulgin
Cable Mounting & Accessories CABLE GLAND 6-8MM COLOR BLACK SEALING GLAND BLACK
12023/5
Bulgin
Cable Mounting & Accessories CABLE GLAND 3.5-5MM COLOR GRAY SEALING GLAND WHITE
12023/1
Bulgin
Cable Mounting & Accessories CABLE GLAND 5-7MM COLOR WHITE SEALING GLAND WHITE BUSHES 5-7MM Cable Accessories Gland White SEALINGGLAND Bulgin 电缆固定头
13826
Bulgin
Crimpers CRIMP TOOL 9 WAY TOOL HAND 9POS CRIMP Tool; Crimp; 9; Inserting and Extracting 25 Way Contacts Crimp Tools For 3, 9,12 And 25 Pole Crimp Contacts Tool,Crimp;9;InsertingandExtracting25WayContacts Bulgin Standard Buccaneer 系列 9 触点 压接工具 压接工具
PX0734
Bulgin
Standard Circular Connector SEALING CAP CONN CAP SEALING FOR USE W/CABLE Sealing Cap Tool CAP/ASSEMBLY TOOL Cap,Sealing;FitsflexMountingtypes,Buccaneer Protection cover; external thread; Buccaneer Standard; IP68 Protective cap, PX0734, Bulgin Bulgin 外壳
PX0738/S
Bulgin
Standard Circular Connector 6 POLE CHAS MT SKT CONN RCPT 6POS PNL MNT SKT 6 Pole Straight Panel Mount Industrial & Automation Circular Connector with Female Contacts Buccaneer Series Conn Buccaneer SKT 6 POS Screw ST Panel Mount 6 Terminal 1 Port SOCKET, SEALED PANEL, 6WAY Connector;Socket;6;16AWG;Screw;3A;250V;10Milliohms(Max.);Panel Connector: circular; socket; female; PIN:6; Buccaneer Standard Device bushing Buccaneer, 6-pin 6, PX0738/S, Bulgin Bulgin Buccaneer 系列 6路 面板安装 直向 连接器 插座
SA3253
Bulgin
Standard Circular Connector GLAND 3 PACK 3.5-5MM 5-7MM & 7-9MM STANDARD BUCCANEER GLAND PACK Gland pack Cable Accessories Gland CABLE GLAND, CLAMP STANDARD CableGland(Clamp);3/pk Gaskets set; Buccaneer Standard; IP68; 3.5÷9mm Bulgin 电缆固定头 , -20°C至+70°C
PX0799
Bulgin
Standard Circular Connector BACKSHELL REAR OF PANEL STANDARD BUCCANEER REAR COVER Sealing backshell Backshell 180° BACKSHELL, IP68
PX0733
Bulgin
Standard Circular Connector SEALING CAP CONN CAP SEALING FOR W/ALL OTHER Sealing cap for chassis connector Connector Accessories USB Sealing Cap SEALING CAP, FOR PX0847 CONNECTOR Cap,Sealing;Fitspanelmountandflex-in-lineconnector;Buccaneer Protection cover; Buccaneer Standard; IP68; internal thread Protective cap, PX0733, Bulgin Bulgin 插座 IP68 防尘盖

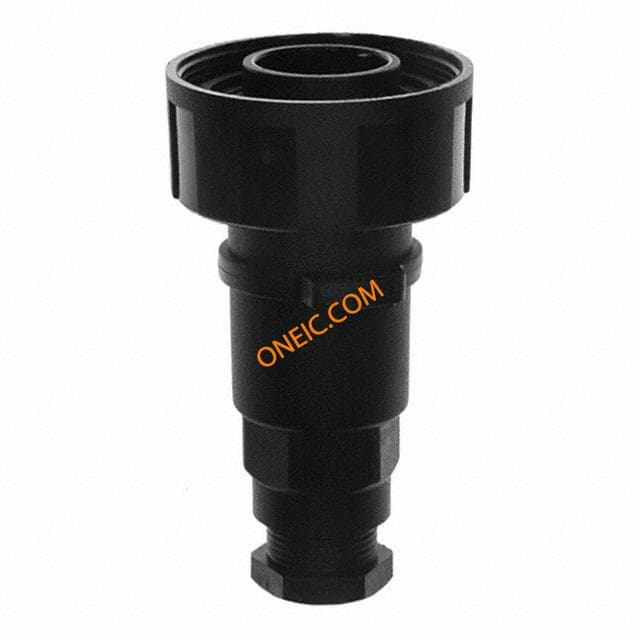

PX0739/P
