PX0738/P
| 制造商 | Bulgin |
| 描述 | Standard Circular Connector 6 POLE CHAS MT PLUG CONN RCPT 6POS PNL MNT PIN 6 Pole Straight Panel Mount Industrial & Automation Circular Connector with Male Contacts Buccaneer Series Conn Buccaneer PIN 6 POS Screw ST Panel Mount 6 Terminal 1 Port CIRCULAR CONNECTOR, PLUG, 6 WAY, PANEL Connector;Pin;6;16AWG;Screw;3A;250V;10Milliohms(Max.);Panel Connector: circular; socket; male; PIN:6; Buccaneer Standard; IP68 Panel-mount male receptacle, 6-pin 6, PX0738/P, Bulgin Bulgin Buccaneer 系列 6路 面板安装 直向 连接器 插头 |
| 分类 |
商业参数
| 产品类别 | Standard Circular Connector | 标准包装数量 | 25 |
| 工厂包装数量 | 25 | ||
合规参数
| RoHS | Compliant | SVHC | :No SVHC (19-Dec-2012) |
| 海关税号 | 85369010 | 认证机构 | ULRecognized/CSA/VDE |
| 材料阻燃等级 | :UL94HB | ||
电气参数
| 额定电压 | 277VAC/DC | 最大额定电流 | 5A |
机械参数
| 重量 | 0.02 | 包装方式 | Bulk |
| 导线线规 | 16 | 方向 | Keyed |
| 外壳样式 | Plug | 端接方式 | Screw |
| 触头类型 | Pin | 安装类型 | Panel Mount |
| 外壳镀层 | Nickel | 行程角度 | Straight |
| 电缆直径 | 6-8mm | 连接器类型 | Receptacle, Male Pins |
| 接触镀层 | Nickel | 紧固类型 | Threaded |
| 安装样式 | Panel | 插入角度 | :- |
| 锁定特性 | threaded joint, external thread | 本体材料 | :Glass Filled Nylon (Polyamide) |
| 触头材料 | Brass | 壳体材料 | GlassFilledPolyamide |
| 包装数量 | 25 | 主要材料 | Sealed |
| 连接器 - 电缆 | socket | 端接样式 | Screw |
| 第一触头极性 | Male | 连接器颜色 | :Black |
| 配接方向 | Threaded | 触点数 | 6 |
| 接触件端接 | :Screw | 介电材料 | Polyamide |
| 位数 | 6 | 外壳尺寸-插件 | :- |
| 外壳材料及表面处理 | Polyamide, Glass Filled | 外壳与棱镜材料 | polyamide |
| 第一连接器安装类型 | :Panel | 外径-未扩张 | :8mm |
产品信息
| SPG | 25 | 类型 | PanelPlug |
| 连接器性别 | :Plug | 系列 | Buccaneer |
| 产品子类型 | Connectors | 适配器系列 | Buccaneer Standard |
| 单元数量 | 1 | ||
环境参数
| NEMA 机架尺寸 | :IP68 | 防护等级 | IP68/69K - Dust Tight, Waterproof |
| 工作温度 | -20°C ~ 70°C | ||
文档与媒体
相关型号
12023
Bulgin
Cable Mounting & Accessories CABLE GLAND 6-8MM COLOR BLACK SEALING GLAND BLACK
12023/5
Bulgin
Cable Mounting & Accessories CABLE GLAND 3.5-5MM COLOR GRAY SEALING GLAND WHITE
12023/1
Bulgin
Cable Mounting & Accessories CABLE GLAND 5-7MM COLOR WHITE SEALING GLAND WHITE BUSHES 5-7MM Cable Accessories Gland White SEALINGGLAND Bulgin 电缆固定头
13826
Bulgin
Crimpers CRIMP TOOL 9 WAY TOOL HAND 9POS CRIMP Tool; Crimp; 9; Inserting and Extracting 25 Way Contacts Crimp Tools For 3, 9,12 And 25 Pole Crimp Contacts Tool,Crimp;9;InsertingandExtracting25WayContacts Bulgin Standard Buccaneer 系列 9 触点 压接工具 压接工具

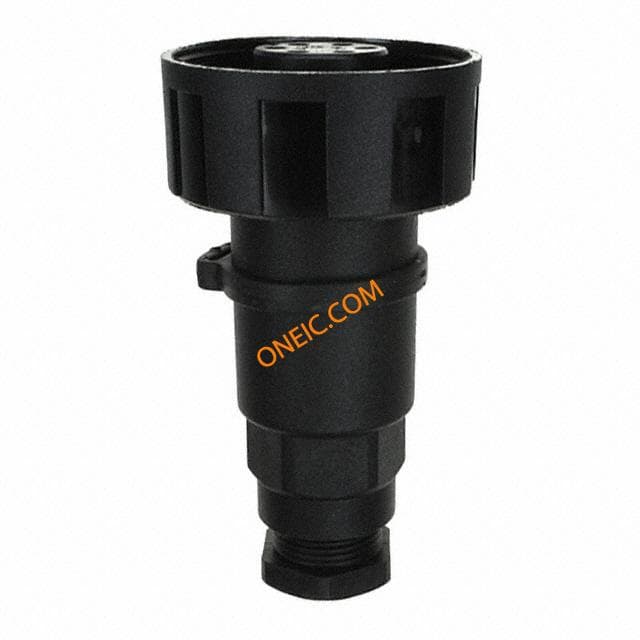

PX0739/S
