点击放大查看

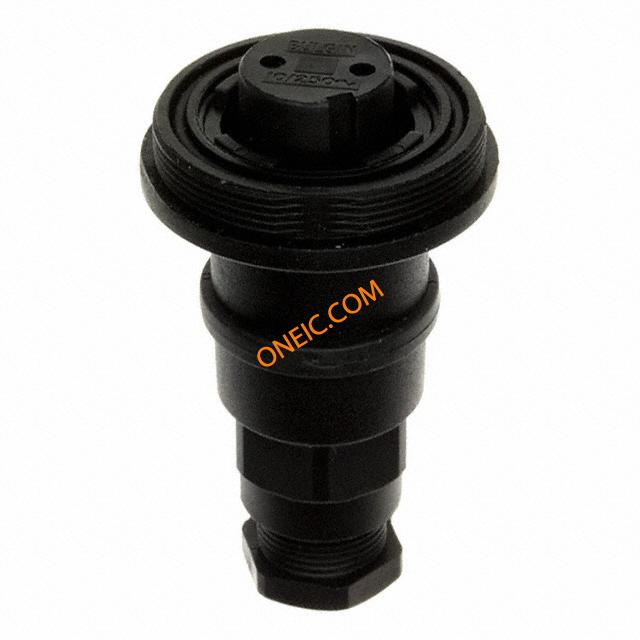

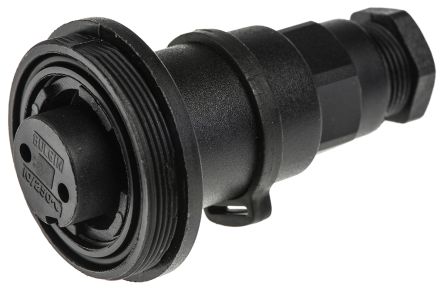

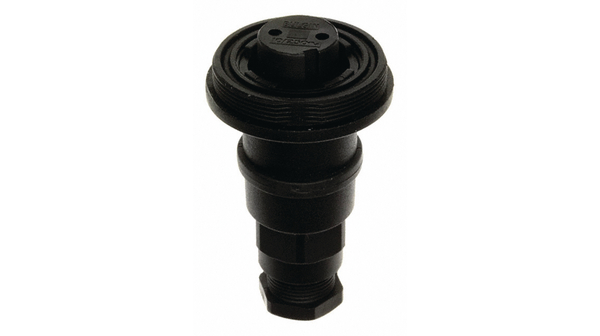

PX0737/S
| 制造商 | Bulgin |
| 描述 | Standard Circular Connector 2 POLE IN-LINE SKT CONN RCPT 2POS INLINE SKT 2 Pole Straight Cable Mount Industrial & Automation Circular Connector with Female Contacts Buccaneer Series Conn Buccaneer SKT 2 POS Screw ST Cable Mount 2 Terminal 1 Port SOCKET, SEALED, INLINE, 2WAY CableConnector,In-Line;2;Socket;6to8mmDia;In-LineFlex;Screw;10A Connector: circular; plug; female; PIN:2; Buccaneer Standard; IP68 Coupling bushing Buccaneer, 2-pin 2, PX0737/S, Bulgin Bulgin Buccaneer 系列 2路 电缆安装 直向 连接器 插座 |
| 分类 |
商业参数
| 产品类别 | Standard Circular Connector | 标准包装数量 | 25 |
| 工厂包装数量 | 25 | ||
合规参数
| RoHS | Compliant | SVHC | :No SVHC (19-Dec-2012) |
| 海关税号 | 85369010 | 认证机构 | ULRecognized/CSA/VDE |
| 材料阻燃等级 | :UL94V-0 | ||
电气参数
| 额定电压 | 277VAC/DC | 工作电压 | :250V |
| 接触电阻 | :10mohm | 最大额定电流 | 12A |
| 绝缘电阻 | :100Mohm | ||
机械参数
| 长度 | :64.4mm | 重量 | 0.002 |
| 材料（通用） | :Glass Filled Nylon | 包装方式 | Bulk |
| 导线线规 | 12 | 方向 | Keyed |
| 外壳样式 | Receptacle | 端接方式 | Screw |
| 触头类型 | Socket | 基体材料 | polyamide |
| 安装类型 | Free Hanging (In-Line) | 外壳镀层 | Nickel |
| 行程角度 | Straight | 电缆直径 | 6-8mm |
| 连接器类型 | Receptacle, Female Sockets | 接触镀层 | Nickel |
| 紧固类型 | Threaded | 安装样式 | Free Hanging |
| 插入角度 | :- | 锁定特性 | threaded joint, external thread |
| 本体材料 | :Glass Filled Nylon (Polyamide) | 触头材料 | Brass |
| 壳体材料 | GlassFilledPolyamide | 包装数量 | 25 |
| 主要材料 | Sealed | 连接器 - 电缆 | plug |
| 端接样式 | Screw | 第一触头极性 | Female |
| 连接器颜色 | :Black | 外径 | :38.1mm |
| 触点数 | 2 | 接触件端接 | :Screw |
| 介电材料 | Polyamide | 位数 | 2 |
| 外壳尺寸-插件 | :- | 外壳材料及表面处理 | Polyamide, Glass Filled |
| 第一连接器安装类型 | :Cable | 外径-未扩张 | :8.1mm |
产品信息
| SPG | 25 | 类型 | CableSocket |
| 连接器性别 | :Receptacle | 系列 | Buccaneer |
| 产品子类型 | Connectors | 适配器系列 | Buccaneer Standard |
| 单元数量 | 1 | ||
环境参数
| NEMA 机架尺寸 | :IP68 | 防护等级 | IP68/69K - Dust Tight, Waterproof |
| 工作温度 | -20°C ~ 70°C | ||
