点击放大查看

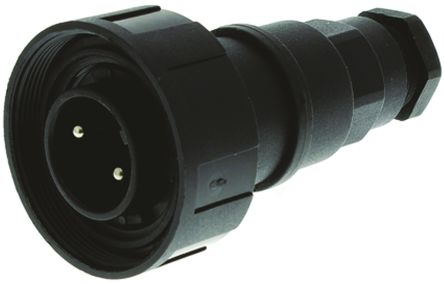

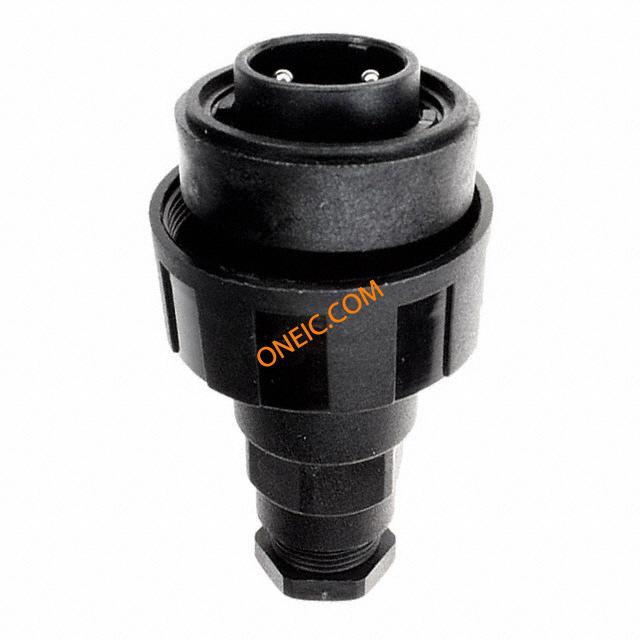

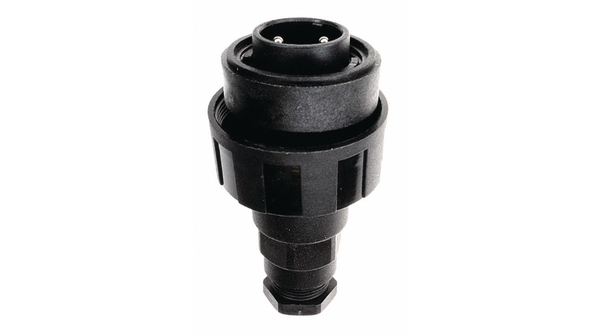

PX0736/P
| 制造商 | Bulgin |
| 描述 | Standard Circular Connector 2 POLE FLEX PLUG CONN PLUG 2POS CABLE PIN 2 Pole Straight Cable Mount Industrial & Automation Circular Connector with Male Contacts Buccaneer Series Conn Buccaneer PIN 2 POS Screw ST Cable Mount 2 Terminal 1 Port CIRCULAR CONNECTOR, PLUG, 2 WAY, CABLE CONN PLUG 2POS INLINE PIN Connector,StandardBuccaneer;Pin;2;69.0mm;38.1mm;3.5to9mm;10A Connector: circular; plug; male; PIN:2; Buccaneer Standard; IP68 Cable plug Buccaneer, 2-pin 2, PX0736/P, Bulgin Bulgin Buccaneer 系列 2路 电缆安装 直向 连接器 插头 |
| 分类 |
商业参数
| 产品类别 | Standard Circular Connector | 标准包装数量 | 25 |
| 工厂包装数量 | 25 | ||
合规参数
| RoHS | Compliant | SVHC | :No SVHC (19-Dec-2012) |
| 海关税号 | 85369010 | 认证机构 | ULRecognized/CSA/VDE |
| 材料阻燃等级 | :UL94V-0 | ||
电气参数
| 额定电压 | 277VAC/DC | 工作电压 | :277V |
| 接触电阻 | :10mohm | 最大额定电流 | 12A |
机械参数
| 长度 | :69mm | 重量 | 0.028 |
| 材料（通用） | :Black nylon | 包装方式 | Bulk |
| 导线线规 | 12 | 方向 | Keyed |
| 外壳样式 | Plug | 端接方式 | Screw |
| 触头类型 | Pin | 基体材料 | polyamide |
| 安装类型 | Free Hanging (In-Line) | 外壳镀层 | Nickel |
| 行程角度 | Straight | 电缆直径 | 6-8mm |
| 连接器类型 | Plug, Male Pins | 接触镀层 | Nickel |
| 紧固类型 | Threaded | 安装样式 | Free Hanging |
| 插入角度 | :- | 锁定特性 | threaded joint, internal thread |
| 本体材料 | :Glass Filled Nylon (Polyamide) | 触头材料 | Brass |
| 壳体材料 | GlassFilledPolyamide | 包装数量 | 25 |
| 主要材料 | Sealed | 连接器 - 电缆 | plug |
| 端接样式 | Screw | 第一触头极性 | Male |
| 外径 | :38.1mm | 配接方向 | Threaded |
| 触点数 | 2 | 接触件端接 | :Screw |
| 介电材料 | Polyamide | 位数 | 2 |
| 外壳尺寸-插件 | :- | 外壳材料及表面处理 | Polyamide, Glass Filled |
| 第一连接器安装类型 | :Cable | 外径-未扩张 | :8mm |
产品信息
| SPG | 25 | 类型 | CablePlug |
| 连接器性别 | :Plug | 系列 | Buccaneer |
| 产品特性 | ScrewLocking | 产品子类型 | Connectors |
| 适配器系列 | Buccaneer Standard | 单元数量 | 1 |
环境参数
| NEMA 机架尺寸 | :IP68 | 防护等级 | IP68/69K - Dust Tight, Waterproof |
| 工作温度 | -20°C ~ 70°C | ||
文档与媒体
相关型号
12023
Bulgin
Cable Mounting & Accessories CABLE GLAND 6-8MM COLOR BLACK SEALING GLAND BLACK

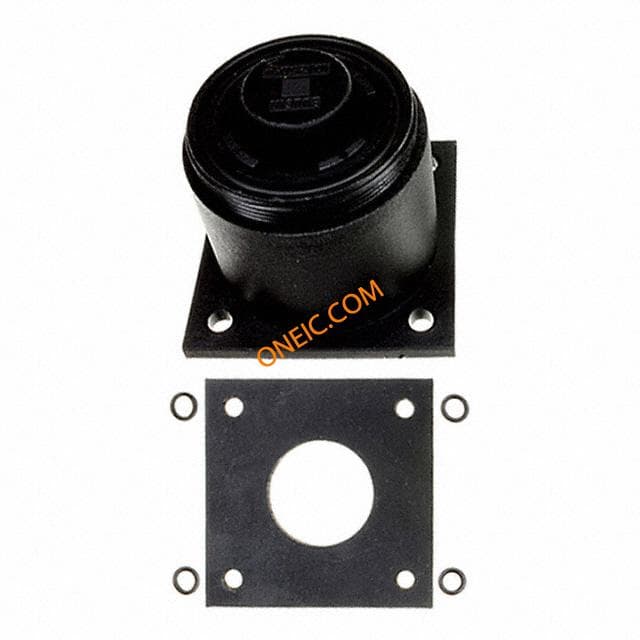

PX0757/S
Bulgin
Standard Circular Connector 2 POLE FLANGE SKT BULKHEAD CONN RCPT 2POS PNL MNT SKT Conn Buccaneer SKT 2 POS Screw ST Flange Mount 2 Terminal 1 Port SOCKET, SEALED, BULKHEAD, 2W Connector;Socket;2;SuppliedFitted;43.0mm;44.5mm;ScrewTerminal;10A
PX0764/S
Bulgin
Standard Circular Connector 2 POLE FLANGE SKT LOW PROFILE CONN RCPT 2POS PNL MNT SKT 2 Pole Straight Panel Mount Industrial & Automation Circular Connector with Female Contacts Buccaneer Series Conn Buccaneer SKT 2 POS Screw ST Flange Mount 2 Terminal 1 Port SOCKET, LOW PROFILE, 2 POLE Connector;Socket;2;SuppliedFitted;ScrewTerminal;10A;250VAC/VDC Connector: circular; socket; female; PIN:2; Buccaneer Standard Panel Mount Sockets Standard Buccaneer® with flange 2, PX0764/S, Bulgin Bulgin Buccaneer 系列 2路 面板安装 直向 连接器 , 母触点
PX0734
Bulgin
Standard Circular Connector SEALING CAP CONN CAP SEALING FOR USE W/CABLE Sealing Cap Tool CAP/ASSEMBLY TOOL Cap,Sealing;FitsflexMountingtypes,Buccaneer Protection cover; external thread; Buccaneer Standard; IP68 Protective cap, PX0734, Bulgin Bulgin 外壳
PX0735/S
Bulgin
Standard Circular Connector 2 POLE CHAS MT SKT CONN RCPT 2POS PNL MNT SKT 2 Pole Straight Panel Mount Industrial & Automation Circular Connector with Female Contacts Buccaneer Series Conn Buccaneer SKT 2 POS Screw ST Panel Mount 2 Terminal 1 Port CIRCULAR CONNECTOR, RCPT, 2 WAY, PANEL Connector;Socket;2;12AWG;Screw;10A;250V;10Milliohms(Max.);Panel Connector: circular; socket; female; PIN:2; Buccaneer Standard Device bushing Buccaneer, 2-pin 2, PX0735/S, Bulgin Bulgin Buccaneer 系列 2路 面板安装 直向 连接器 , 母触点
PX0733
Bulgin
Standard Circular Connector SEALING CAP CONN CAP SEALING FOR W/ALL OTHER Sealing cap for chassis connector Connector Accessories USB Sealing Cap SEALING CAP, FOR PX0847 CONNECTOR Cap,Sealing;Fitspanelmountandflex-in-lineconnector;Buccaneer Protection cover; Buccaneer Standard; IP68; internal thread Protective cap, PX0733, Bulgin Bulgin 插座 IP68 防尘盖
12237
Bulgin
Standard Circular Connector STR REL 5-7 & 7-9MM CABLE SUPPORT FOR STD BUCCANEER Cable strain relief for IP68 connector STRAIN RELIEF, BUCCANEER CableSupport;BuccaneerSuitablefor5-7mmand7-9mmcablediameters Bend protection; Buccaneer Standard; IP68; 5÷7mm Anti-kink sleeve for for cable 5...9 mm, 12237, Bulgin Bulgin 应变消除, 使用于Buccaneer 系列

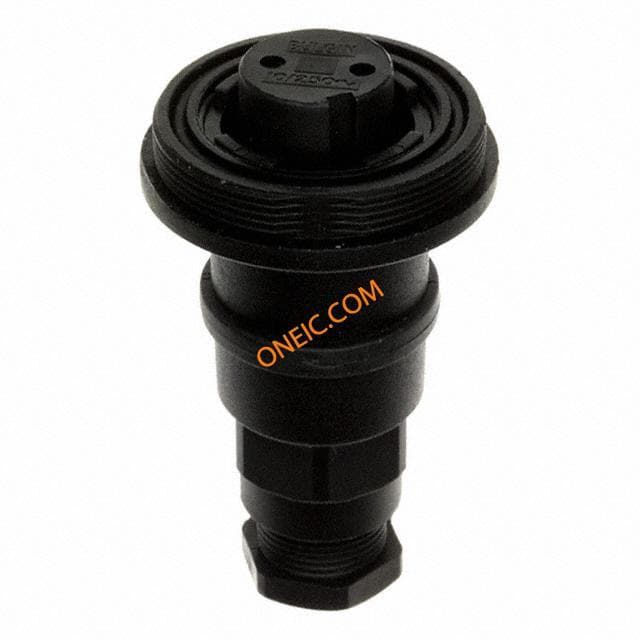

PX0737/S
