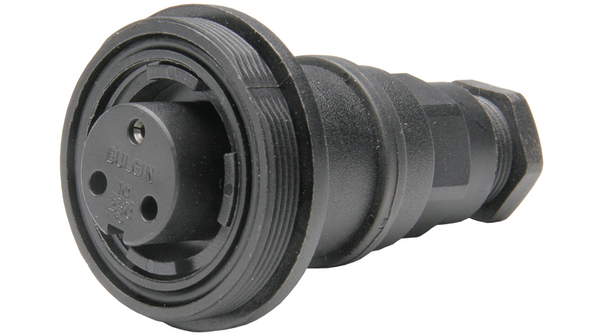

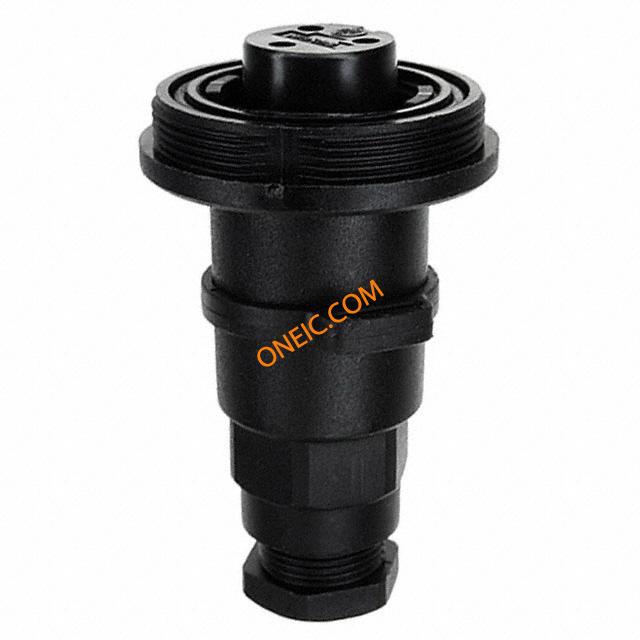

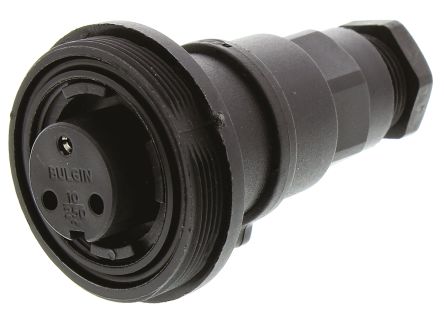

PX0732/S
| 制造商 | Bulgin |
| 描述 | Standard Circular Connector 3 POLE IN-LINE SKT CONN RCPT 3POS INLINE SKT 3 Pole Straight Cable Mount Industrial & Automation Circular Connector with Female Contacts Buccaneer Series Conn Buccaneer SKT 3 POS Screw ST Cable Mount 3 Terminal 1 Port CIRCULAR, RECEPTACLE, 3 WAY, CABLE CableConnector,In-Line;3;Socket;6to8mmDia;In-LineFlex;Screw;10A Connector: circular; plug; female; PIN:3; Buccaneer Standard; IP68 Coupling bushing Buccaneer, 3-pin 3, PX0732/S, Bulgin Bulgin Buccaneer 系列 3路 电缆安装 直向 连接器 插座 |
| 分类 |
商业参数
| 产品类别 | Standard Circular Connector | 标准包装数量 | 25 |
| 工厂包装数量 | 25 | ||
合规参数
| RoHS | Compliant | SVHC | :No SVHC (19-Dec-2012) |
| 海关税号 | 85369010 | 认证机构 | ULRecognized/CSA/VDE |
| 材料阻燃等级 | :UL94V-0 | ||
电气参数
| 额定电压 | 277VAC/DC | 接触电阻 | :10mohm |
| 最大额定电流 | 12A | 绝缘电阻 | :100Mohm |
机械参数
| 长度 | :65mm | 重量 | 0.032 |
| 包装方式 | Bulk | 导线线规 | 12 |
| 方向 | Keyed | 外壳样式 | Receptacle |
| 端接方式 | Screw | 触头类型 | Socket |
| 基体材料 | polyamide | 安装类型 | Free Hanging (In-Line) |
| 外壳镀层 | Nickel | 行程角度 | Straight |
| 电缆直径 | 6-8mm | 连接器类型 | Receptacle, Female Sockets |
| 接触镀层 | Nickel | 紧固类型 | Threaded |
| 安装样式 | Free Hanging | 插入角度 | :- |
| 锁定特性 | threaded joint, external thread | 本体材料 | :Glass Filled Nylon (Polyamide) |
| 触头材料 | Brass | 壳体材料 | GlassFilledPolyamide |
| 包装数量 | 25 | 主要材料 | Sealed |
| 连接器 - 电缆 | plug | 端接样式 | Screw |
| 第一触头极性 | Female | 连接器颜色 | :Black |
| 外径 | :38.1mm | 触点数 | 3 |
| 接触件端接 | :Screw | 介电材料 | Polyamide |
| 位数 | 3 | 外壳尺寸-插件 | :- |
| 外壳材料及表面处理 | Polyamide, Glass Filled | 第一连接器安装类型 | :Cable |
| 外径-未扩张 | :8mm | ||
产品信息
| SPG | 25 | 类型 | CableSocket |
| 连接器性别 | :Receptacle | 系列 | Buccaneer |
| 产品子类型 | Connectors | 适配器系列 | Buccaneer Standard |
| 单元数量 | 1 | ||
环境参数
| NEMA 机架尺寸 | :IP68 | 防护等级 | IP68/69K - Dust Tight, Waterproof |
| 工作温度 | -20°C ~ 70°C | ||
