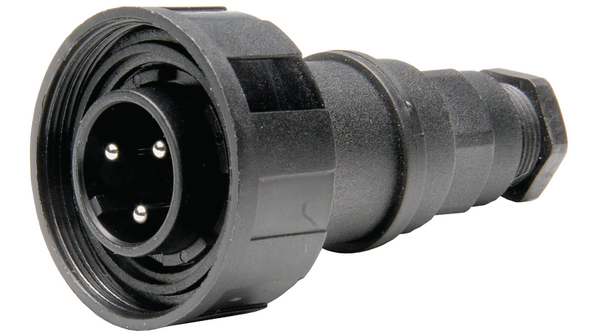

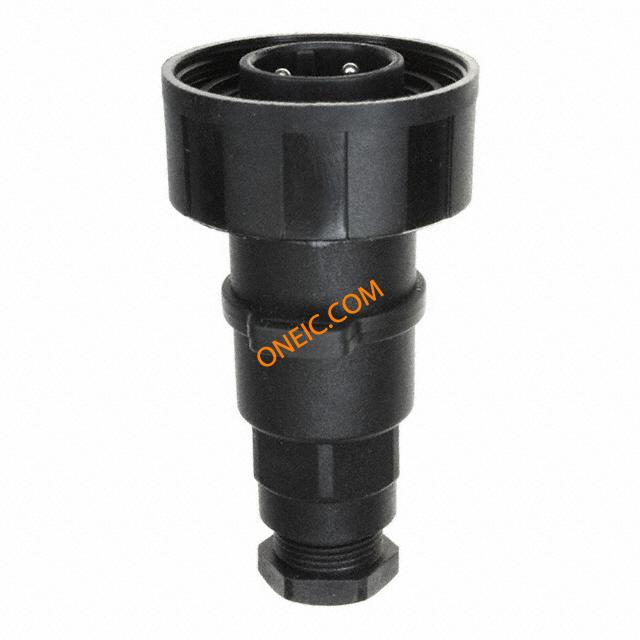

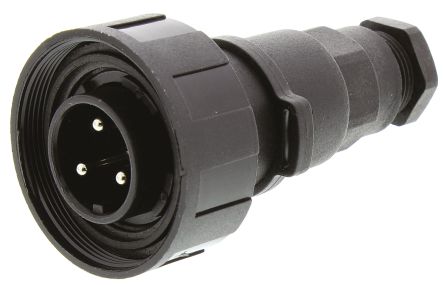

PX0731/P
| 制造商 | Bulgin |
| 描述 | Standard Circular Connector 3 POLE FLEX PLUG CONN PLUG 3POS CABLE PIN 3 Pole Straight Cable Mount Industrial & Automation Circular Connector with Male Contacts Buccaneer Series Conn Buccaneer PIN 3 POS Screw ST Cable Mount 3 Terminal 1 Port CIRCULAR CONNECTOR, PLUG, 3 WAY, CABLE CONN PLUG 3POS INLINE PIN Connector,StandardBuccaneer;Pin;3;69.0mm;38.1mm;3.5to9mm;10A Connector: circular; plug; male; PIN:3; Buccaneer Standard; IP68 Cable plug Buccaneer, 3-pin 3, PX0731/P, Bulgin Bulgin Buccaneer 系列 3路 电缆安装 直向 连接器 插头 |
| 分类 |
商业参数
| 产品类别 | Standard Circular Connector | 标准包装数量 | 25 |
| 工厂包装数量 | 25 | ||
合规参数
| RoHS | Compliant | 海关税号 | 85369010 |
| 认证机构 | ULRecognized/CSA/VDE | 材料阻燃等级 | :UL94V-0 |
电气参数
| 额定电压 | 277VAC/DC | 接触电阻 | :10mohm |
| 最大额定电流 | 12A | 绝缘电阻 | :100Mohm |
机械参数
| 长度 | :65mm | 重量 | 0.032 |
| 材料（通用） | :Glass Filled Nylon | 包装方式 | Bulk |
| 导线线规 | 12 | 方向 | Keyed |
| 外壳样式 | Plug | 端接方式 | Screw |
| 触头类型 | Pin | 基体材料 | polyamide |
| 安装类型 | Free Hanging (In-Line) | 外壳镀层 | Nickel |
| 行程角度 | Straight | 电缆直径 | 6-8mm |
| 连接器类型 | Plug, Male Pins | 接触镀层 | Nickel |
| 紧固类型 | Threaded | 安装样式 | Free Hanging |
| 插入角度 | :- | 锁定特性 | threaded joint, internal thread |
| 本体材料 | :Glass Filled Nylon (Polyamide) | 触头材料 | Brass |
| 壳体材料 | GlassFilledPolyamide | 包装数量 | 25 |
| 主要材料 | Sealed | 连接器 - 电缆 | plug |
| 端接样式 | Screw | 第一触头极性 | Male |
| 连接器颜色 | :Black | 外径 | :38.1mm |
| 配接方向 | Threaded | 触点数 | 3 |
| 接触件端接 | :Screw | 介电材料 | Polyamide |
| 位数 | 3 | 外壳尺寸-插件 | :- |
| 外壳材料及表面处理 | Polyamide, Glass Filled | 第一连接器安装类型 | :Cable |
| 外径-未扩张 | :8.1mm | ||
产品信息
| SPG | 25 | 类型 | CablePlug |
| 连接器性别 | :Plug | 系列 | Buccaneer |
| 产品特性 | ScrewLocking | 产品子类型 | Connectors |
| 适配器系列 | Buccaneer Standard | 单元数量 | 1 |
环境参数
| NEMA 机架尺寸 | :IP68 | 防护等级 | IP68/69K - Dust Tight, Waterproof |
| 工作温度 | -20°C ~ 70°C | ||
文档与媒体
相关型号
12023
Bulgin
Cable Mounting & Accessories CABLE GLAND 6-8MM COLOR BLACK SEALING GLAND BLACK

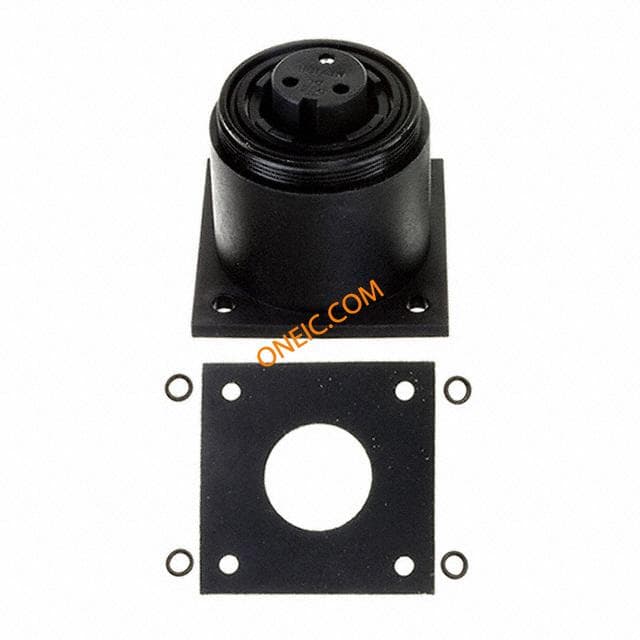

PX0756/S
Bulgin
Standard Circular Connector 3 POLE FLANGE SKT BULKHEAD CONN RCPT 3POS PNL MNT SKT Connector; Socket; 3; Supplied Fitted; 43.0 mm; 44.5 mm; Screw Terminal; 10 A Conn Buccaneer SKT 3 POS Screw ST Flange Mount 3 Terminal 1 Port SOCKET, SEALED, BULKHEAD, 3W Connector;Socket;3;SuppliedFitted;43.0mm;44.5mm;ScrewTerminal;10A
PX0707/S/03
Bulgin
Standard Circular Connector 3 POLE PCB SKT CONN RCPT 3POS PNL MNT PCB SKT Conn Buccaneer SKT 3 POS Solder ST Thru-Hole 3 Terminal 1 Port Connector,CircularIP68;3;PCB;10A;250VAC/VDC;lt10Milliohms;IP68
PX0734
Bulgin
Standard Circular Connector SEALING CAP CONN CAP SEALING FOR USE W/CABLE Sealing Cap Tool CAP/ASSEMBLY TOOL Cap,Sealing;FitsflexMountingtypes,Buccaneer Protection cover; external thread; Buccaneer Standard; IP68 Protective cap, PX0734, Bulgin Bulgin 外壳

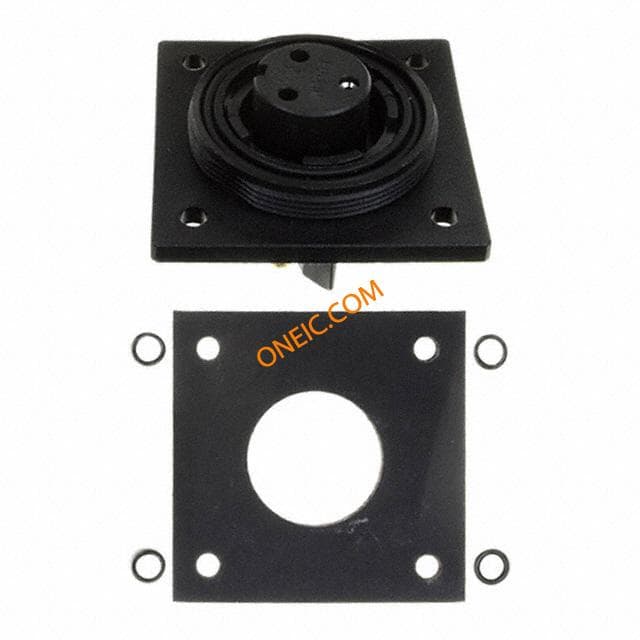

PX0765/S
