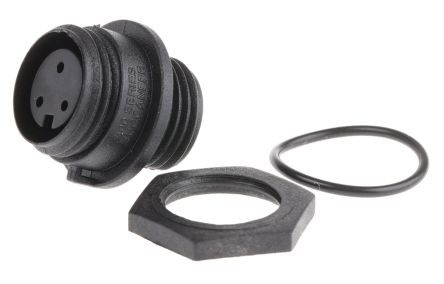

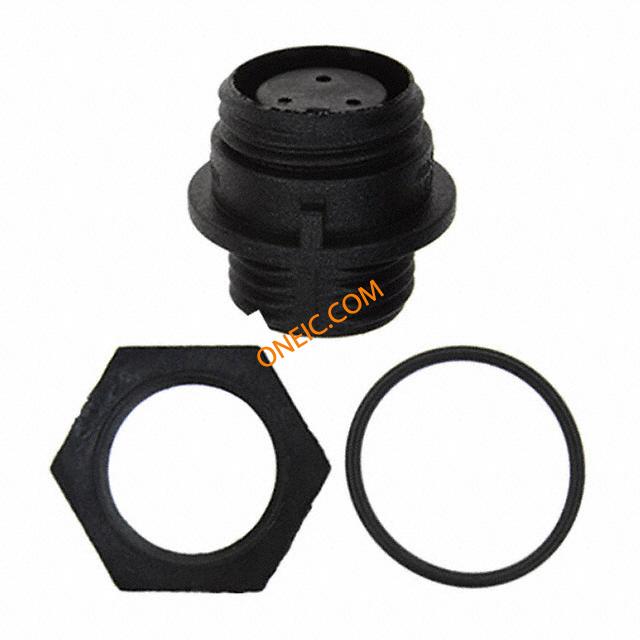

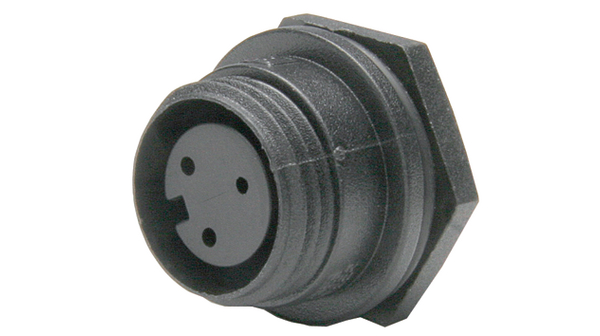

PX0412/03S
| 制造商 | Bulgin |
| 描述 | Standard Circular Connector 3 POLE CHAS MT SKT CONN HSNG RCPT JAM NUT 3POS SKT 3 Pole Straight Panel Mount Industrial & Automation Circular Connector with Female Contacts Buccaneer Series Conn Buccaneer SKT 3 POS Crimp ST Panel Mount 3 Terminal 1 Port SOCKET, CHASSIS, 3WAY Connector;Socket;3;20to24AWG;CrimpandSolder;8A;250VAC/VDC;UL94V-0 Connector: circular; socket; female; PIN:3; w/o terminals; IP68 appliance socket Buccaneer 400, 3-pole 3, PX0412/03S, Bulgin Bulgin Buccaneer 系列 3路 面板安装 直向 连接器 , 母触点 |
| 分类 |
商业参数
| 产品类别 | Standard Circular Connector | 标准包装数量 | 25 |
| 工厂包装数量 | 25 | ||
合规参数
| RoHS | Compliant | SVHC | :No SVHC (19-Dec-2012) |
| 海关税号 | 85366990 | 认证机构 | ULRecognized/CSA/VDE |
| 材料阻燃等级 | :UL94V-0 | ||
电气参数
| 额定电压 | 250 V ac/dc | 工作电压 | :250V |
| 接触电阻 | :5mohm | 最大额定电流 | 8A |
| 绝缘电阻 | :10Mohm | 连接器类型 - 电压输入 | w/o terminals |
机械参数
| 重量 | 0.004 | 材料（通用） | :Nitrile |
| 包装方式 | Bulk | 导线线规 | :20AWG |
| 方向 | Keyed | 外壳样式 | Receptacle |
| 本体尺寸 | Ø22 x 19.9mm | 端接方式 | Crimp |
| 触头类型 | Crimp and Solder Cup | 基体材料 | polyamide |
| 安装类型 | Panel Mount, Bulkhead - Rear Side Nut | 行程角度 | Straight |
| 连接器类型 | Receptacle for Female Contacts | 接触镀层 | Gold |
| 紧固类型 | Threaded | 安装样式 | Panel |
| 外壳材料（壳体） | Plastic | 插入角度 | :- |
| 锁定特性 | threaded joint, external thread | 本体材料 | :Nylon (Polyamide) |
| 触头材料 | Copper Alloy | 壳体材料 | Polyamide |
| 包装数量 | 25 | 主要材料 | Sealed |
| 连接器 - 电缆 | socket | 第一触头极性 | Female |
| 配接方向 | Threaded | 触点数 | 3 |
| 位数 | 3 | 外壳尺寸-插件 | :- |
| 外壳材料及表面处理 | Polyamide | 线规或范围 - AWG | :24AWG |
| 第一连接器安装类型 | :Cable | 外径-未扩张 | :7mm |
产品信息
| SPG | 25 | 备注 | Contacts Not Provided |
| 类型 | PanelSocket | 连接器性别 | :Receptacle |
| 系列 | Buccaneer | 制造商全称 | 400Series |
| 产品子类型 | Connectors | 适配器系列 | Buccaneer 400 |
| 单元数量 | 1 | ||
环境参数
| NEMA 机架尺寸 | :IP68 | 防护等级 | IP68 - Dust Tight, Waterproof |
| 工作温度 | +80°C | ||
文档与媒体
相关型号
SA3350/1
Bulgin
Standard Circular Contacts SOLDER PIN 2&3P AWG 1 = 1 PKT of 10/pcs CONT PIN 8A SLD 20-24AWG 1=10PC 8A solder pin contact,20-24awg Contact PIN Solder ST Cable Mount CIRCULAR CONTACT, PIN, 20-24AWG, SOLDER Contacts,Solder,Pin,2and3Pole Contact; male; 20÷24AWG; Buccaneer 400; gold plated; soldering Soldering contact, male, for , 2 and 3-pole, SA3350/1, Bulgin Bulgin 400 系列 8A 公 焊接端接 圆形 连接器 触芯, 使用于Buccaneer 400 系列圆形连接器, 24 → 20 AWG 线规格
SA3349/1
Bulgin
Standard Circular Contacts SOLDR SKT 2&3P 20AWG 1 = 1 PKT of 10/pcs CONT SKT 8A SLD 20-24AWG 1=10PC 400 Series 8A Female Circular Connector Contact, Solder,Wire size 24 to 20AWG Contact SKT Solder ST Cable Mount SOLDER SOCKET, 20-24AWG SolderContacts,Socket,2or3Pole,Forthe400SeriesBuccaneer Contact; female; 20÷24AWG; Buccaneer 400; gold plated; soldering Soldering contact, female, for 2 and 3-pole, SA3349/1, Bulgin Bulgin 400 系列 8A 母 焊接端接 圆形 连接器 触芯, 使用于Buccaneer 400 系列连接器, 24 → 20 AWG 线规格
PX0410/10S/6065
Bulgin
Standard Circular Connector 10 POLE FLEX SKT CONN HSNG PLUG CABLE 10POS SKT 10 Pole Straight Cable Mount Industrial & Automation Circular Connector with Female Contacts Buccaneer Series Conn Buccaneer SKT 10 POS Crimp ST Cable Mount 10 Terminal 1 Port SOCKET, FREE, 10WAY CONN HSNG PLUG INLINE 10POS SKT Connector,Cable;Socket;10;46mm(Max.);1A;50VAC/DC;5Milliohms(Max.) Connector: circular; plug; female; PIN:10; w/o terminals; IP68 Cable socket Buccaneer 400, 10-pole 10, PX0410/10S/6065, Bulgin Bulgin Buccaneer 系列 10路 电缆安装 直向 连接器 , 母触点
PX0480
Bulgin
Standard Circular Connector SEALING CAP CONN CAP SEAL FOR PX0412/PX0414 Buccaneer 400 chassis mount sealing cap SEALING CAP, CHASSIS SealingCap,Connector;Panelmountingconnector;400Series Protection cover; threaded joint, internal thread; IP68 Protective cap for appliance plugs/sockets, PX0480, Bulgin

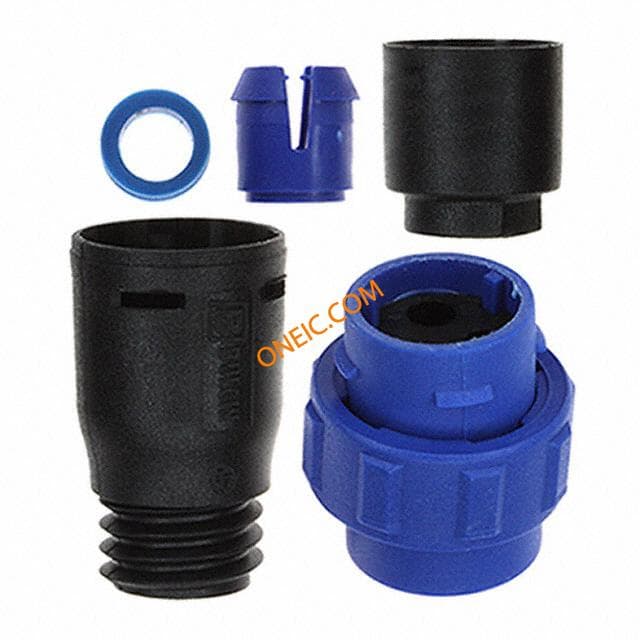

PX0410/03P/5560
