点击放大查看

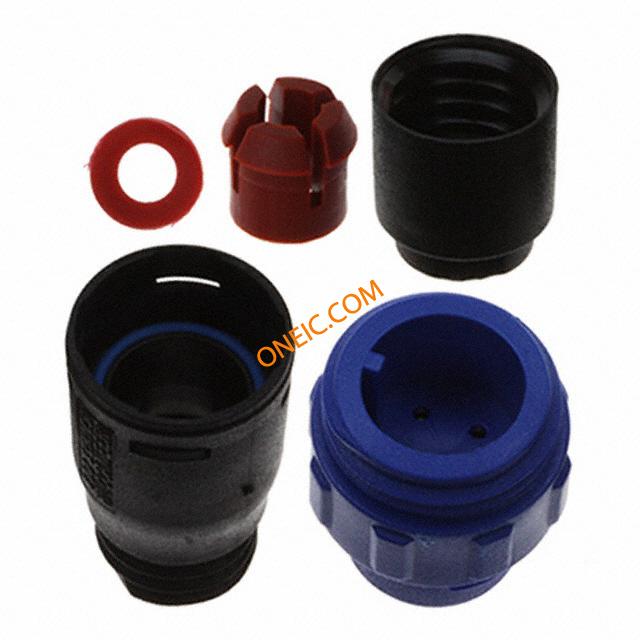

PX0411/04P/4550
| 制造商 | Bulgin |
| 描述 | Standard Circular Connector 4 POLE IN-LINE PLUG CONN HSNG RCPT IN-LINE 4POS PIN 4 Pole Straight Cable Mount Industrial & Automation Circular Connector with Male Contacts Buccaneer Series Conn Buccaneer PIN 4 POS Crimp ST Cable Mount 4 Terminal 1 Port PLUG, IN-LINE, 4WAY CableConnector,In-Line;4;Plug;4.5to5.0mm;FlexIn-LineBody;5A;125 Coupling plug Buccaneer 400, 4-pole 4, PX0411/04P/4550, Bulgin Bulgin Buccaneer 系列 4路 电缆安装 直向 连接器 , 公触点 |
| 分类 |
商业参数
| 产品类别 | Standard Circular Connector | 标准包装数量 | 25 |
| 工厂包装数量 | 25 | ||
合规参数
| RoHS | Compliant | SVHC | :No SVHC (19-Dec-2012) |
| 海关税号 | 85366990 | 认证机构 | ULRecognized/CSA/VDE |
| 材料阻燃等级 | :UL94V-0 | ||
电气参数
| 额定电压 | 125 V ac/dc | 工作电压 | :125V |
| 接触电阻 | :5mohm | 最大额定电流 | 5A |
| 绝缘电阻 | :10Mohm | ||
机械参数
| 重量 | 0.005 | 材料（通用） | :Nitrile |
| 包装方式 | Bulk | 导线线规 | :22AWG |
| 方向 | Keyed | 外壳样式 | Plug |
| 端接方式 | Crimp | 触头类型 | Crimp and Solder Cup |
| 安装类型 | Free Hanging (In-Line) | 行程角度 | Straight |
| 电缆直径 | 4.5-5mm | 连接器类型 | Receptacle for Male Contacts |
| 接触镀层 | Gold | 紧固类型 | Threaded |
| 安装样式 | Free Hanging | 外壳材料（壳体） | Plastic |
| 插入角度 | :- | 本体材料 | :Nylon (Polyamide) |
| 触头材料 | Copper Alloy | 壳体材料 | Polyamide |
| 主要材料 | Sealed | 端接样式 | Crimp / Solder |
| 第一触头极性 | Male | 配接方向 | Threaded |
| 触点数 | 4 | 位数 | 4 |
| 外壳尺寸-插件 | :- | 外壳材料及表面处理 | Polyamide |
| 线规或范围 - AWG | :26AWG | 第一连接器安装类型 | :Cable |
| 外径-未扩张 | :7mm | ||
产品信息
| 备注 | Contacts Not Provided | 类型 | CablePlug |
| 连接器性别 | :Plug | 系列 | Buccaneer |
| 制造商全称 | 400Series | 产品子类型 | Connectors |
环境参数
| NEMA 机架尺寸 | :IP68 | 防护等级 | IP68 - Dust Tight, Waterproof |
| 工作温度 | +80°C | ||
文档与媒体
相关型号
14025
Bulgin
Crimpers CRIMP TOOL FOR 400S TOOL CRIMP USE W/POSITIONERS Crimp tool; 8 Indent; for use with positioners Crimp Tools For 3, 9,12 And 25 Pole Crimp Contacts CRIMP TOOL, 400 SERIES Crimptool,8Indent,forusewithpositioners Crimping pliers without limit stop, 14025, Bulgin
14025/5AMP
Bulgin
Crimpers POSITIONER 5A RED TOOL CRIMP POSITIONER FOR 5A Tool; Positioner; 12 pole Connector Accessories Positioner 5A Red 12 POS POSITIONER, 22-26AWG Tool,Positioner,12pole Limit stop for contacts SA3348/3347, 14025/5AMP, Bulgin
PX0410/04S/6570
Bulgin
Standard Circular Connector 4 POLE FLEX SKT BLK CBL 6.5-7.0MM CONN HSNG PLUG CABLE 4POS SOCKET
PX0482
Bulgin
Standard Circular Connector GLAND PACK CONN GLAND 3.0-5.0MM O/D CABLES Buccaneer 400 gland pack for 3-5mm cable Connector Accessories Gland Pack CABLE GLAND, 3-5MM, PACK 4 X 2 CABLE GLAND SealingCap,Connector;Cablesfrom3.0mmto5.0mmDia.;400Series Gaskets set; Buccaneer 400; IP68; 3÷5mm; Application: PX04.. Set 4 Pairs Glands & Collets for ø 3...5 mm, PX0482, Bulgin Bulgin 电缆固定头 , -40°C至+80°C
.JPG&w=3840&q=75)
SA3348/1
Bulgin
Standard Circular Contacts SOLDERPIN 4-8P 22AWG 1 = 1 PKT of 10/pcs CONT PIN 5A SLD 22-26AWG 1=10PC 5A solder pin contact,22-26awg Contact PIN Solder ST Cable Mount PIN, SOLDER, 22-26AWG CIRCULAR CONTACT, PIN, 26-22AWG, SOLDER Contacts,solderpins,12way,5A,50V,packof10 Contact; male; 22÷26AWG; Buccaneer 400; gold plated; soldering Soldering contact, male, for 4, 6 and 8-pole, SA3348/1, Bulgin Bulgin 400 系列 5A 公 焊接端接 圆形 连接器 触芯, 使用于Buccaneer 400 系列圆形连接器, 26 → 22 AWG 线规格
PX0410/04S/4550
Bulgin
Standard Circular Connector 4 POLE FLEX SKT CONN HSNG PLUG CABLE 4POS SKT 4 Pole Straight Cable Mount Industrial & Automation Circular Connector with Female Contacts Buccaneer Series Conn Buccaneer SKT 4 POS Crimp ST Cable Mount 4 Terminal 1 Port CIRCULAR CONNECTOR, RCPT, 4 WAY, CABLE CIRCULAR CONNECTOR, FEMALE, 4POS, CABLE CONN HSNG PLUG INLINE 4POS SKT Connector,Cable;Socket;4;46mm(Max.);5A;125VAC/DC;5Milliohms(Max.) Connector: circular; plug; female; PIN:4; w/o terminals; for cable Cable socket Buccaneer 400, 4-pole 4, PX0410/04S/4550, Bulgin Bulgin Buccaneer 系列 4路 电缆安装 直向 连接器 , 母触点
PX0480/1
Bulgin
Standard Circular Connector SEALING CAP CONN CAP SEALING FOR PX0411 Buccaneer 400 inline coupler sealing cap Connector Accessories Sealing Cap SealingCap,Connector;Inlineflexcableconnector;400Series Protection cover; threaded joint, internal thread; IP68 Protective cap for coupling plugs/sockets, PX0480/1, Bulgin
SA3348
Bulgin
Standard Circular Contacts CRIMP PIN 4-8P 22AWG 1 = 1 PKT of 10/pcs CONT PIN 5A 22-26AWG CRMP 1=10PC Bulgin 400 Series Gold Plated Crimp Pin Connector, 26 to 22AWG Contact PIN Crimp ST Cable Mount CIRCULAR CONTACT, PIN, 26-22 AWG, CRIMP Contacts,CrimpPin,4&8Pole Crimp contact, male, for 4, 6 and 8-pole, SA3348, Bulgin Bulgin 400 系列 公 压接端接 圆形 连接器 触芯, 使用于Buccaneer 400 系列连接器, 26 → 22 AWG 线规格

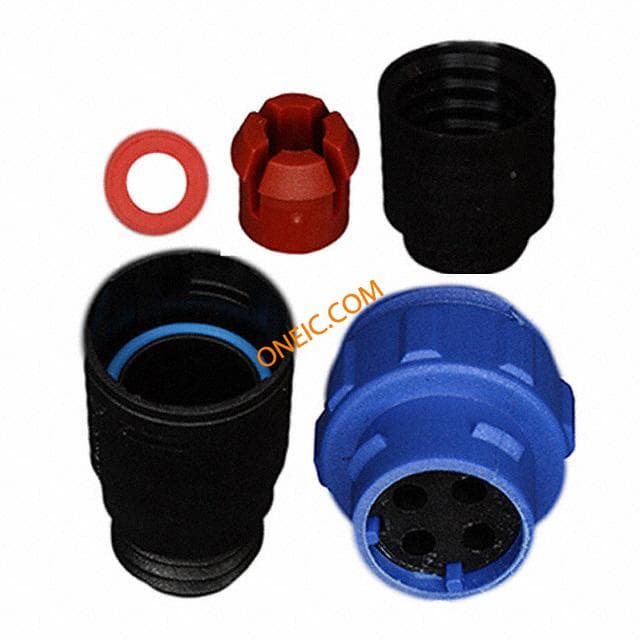

PX0411/04S/4550
