点击放大查看

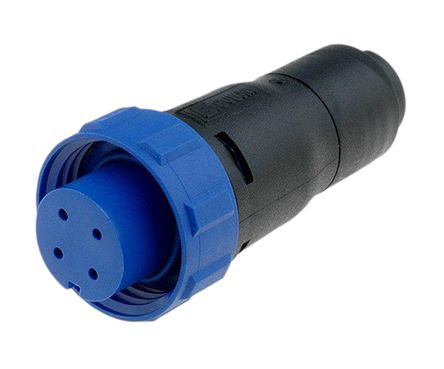

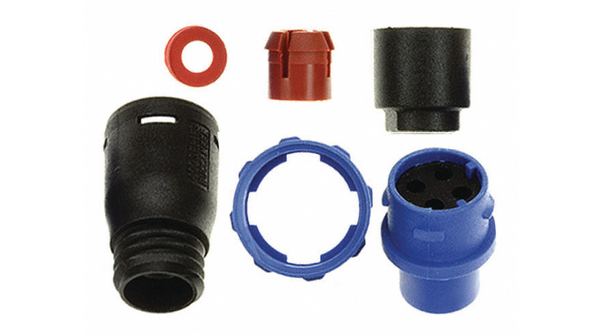

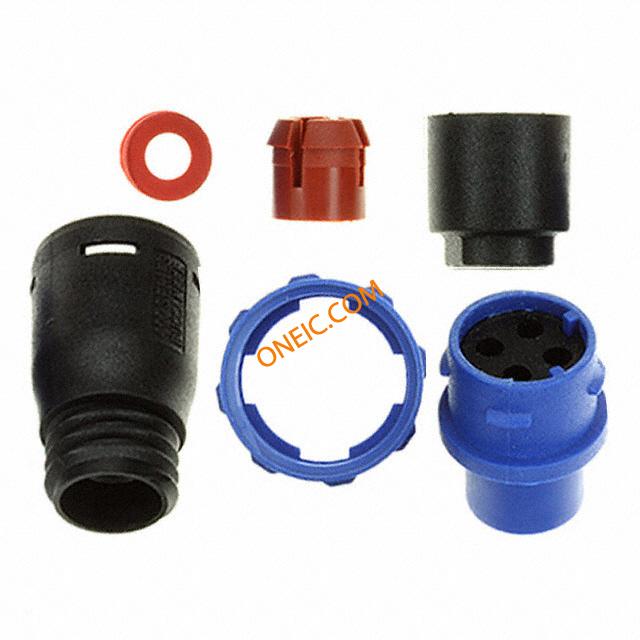

PX0410/04S/4550
| 制造商 | Bulgin |
| 描述 | Standard Circular Connector 4 POLE FLEX SKT CONN HSNG PLUG CABLE 4POS SKT 4 Pole Straight Cable Mount Industrial & Automation Circular Connector with Female Contacts Buccaneer Series Conn Buccaneer SKT 4 POS Crimp ST Cable Mount 4 Terminal 1 Port CIRCULAR CONNECTOR, RCPT, 4 WAY, CABLE CIRCULAR CONNECTOR, FEMALE, 4POS, CABLE CONN HSNG PLUG INLINE 4POS SKT Connector,Cable;Socket;4;46mm(Max.);5A;125VAC/DC;5Milliohms(Max.) Connector: circular; plug; female; PIN:4; w/o terminals; for cable Cable socket Buccaneer 400, 4-pole 4, PX0410/04S/4550, Bulgin Bulgin Buccaneer 系列 4路 电缆安装 直向 连接器 , 母触点 |
| 分类 |
商业参数
| 产品类别 | Standard Circular Connector | 标准包装数量 | 25 |
| 工厂包装数量 | 25 | ||
合规参数
| RoHS | Compliant | 海关税号 | 85366990 |
| 认证机构 | ULRecognized/CSA/VDE | 材料阻燃等级 | :UL94V-0 |
电气参数
| 额定电压 | 125 V ac/dc | 工作电压 | :125V |
| 接触电阻 | :5mohm | 最大额定电流 | 5A |
| 绝缘电阻 | :10Mohm | 连接器类型 - 电压输入 | w/o terminals |
机械参数
| 重量 | 0.004 | 材料（通用） | :Nitrile |
| 包装方式 | Bulk | 导线线规 | :22AWG |
| 方向 | Keyed | 外壳样式 | Receptacle |
| 本体尺寸 | Ø19.1 x 46mm | 端接方式 | Crimp |
| 触头类型 | Crimp and Solder Cup | 基体材料 | polyamide |
| 安装类型 | Free Hanging (In-Line) | 行程角度 | Straight |
| 电缆直径 | 4.5-5mm | 连接器类型 | Plug for Female Contacts |
| 接触镀层 | Gold | 紧固类型 | Threaded |
| 安装样式 | Free Hanging | 外壳材料（壳体） | Plastic |
| 插入角度 | :- | 锁定特性 | threaded joint, internal thread |
| 本体材料 | :Nylon (Polyamide) | 触头材料 | Copper Alloy |
| 壳体材料 | Polyamide | 包装数量 | 25 |
| 主要材料 | Sealed | 连接器 - 电缆 | plug |
| 端接样式 | Crimp / Solder | 第一触头极性 | Female |
| 配接方向 | Threaded | 触点数 | 4 |
| 位数 | 4 | 外壳尺寸-插件 | :- |
| 外壳材料及表面处理 | Polyamide | 线规或范围 - AWG | :26AWG |
| 第一连接器安装类型 | :Cable | 外径-未扩张 | :5.0mm |
产品信息
| SPG | 25 | 备注 | Contacts Not Provided |
| 类型 | CableSocket | 连接器性别 | :Socket |
| 系列 | Buccaneer | 产品特性 | ScrewLocking |
| 制造商全称 | 400Series | 产品子类型 | Connectors |
| 适配器系列 | Buccaneer 400 | 单元数量 | 1 |
环境参数
| NEMA 机架尺寸 | :IP68 | 防护等级 | IP68 - Dust Tight, Waterproof |
| 工作温度 | +80°C | ||
