点击放大查看

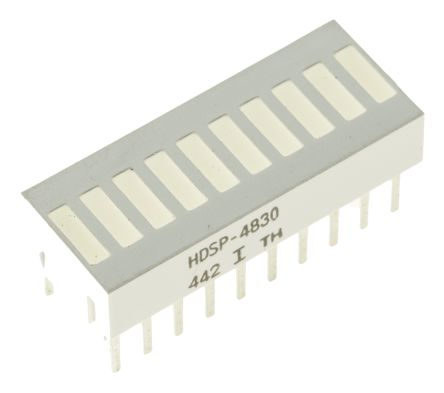

HDSP-4830
| 制造商 | Broadcom Inc. |
| 描述 | LED BAR GRAPH 10SEG HE RED LED bar display red, HDSP-4830, Broadcom Broadcom 光条阵列 红色 LED 显示器, 3.5 mcd |
电气参数
| LED | 红色 | 显示类型 | 光条阵列 |
| 供电电压 | 2.1 VDC | 峰值波长 | 635 |
| 断态电压 | 3.0 VDC | 通态平均电流（最大） | 10 |
机械参数
| 尺寸 | 1.6 x 5 mm | 发光颜色 | red |
| 安装类型 | 通孔安装 | 总深度 | 6.1mm |
| 外缘宽度 | 25.4mm | 安装高度（最大） | 10.16mm |
产品信息
| 设计类型 | Angular | 描述 | 10 x red |
| 段数 | 10 | ||
环境参数
| 工作温度 | -40...+85 °C | 光通量 @ 电流/温度 | 3500 µcd |
文档与媒体
相关型号
LM3916N-1/NOPB
texas instruments
LED DRVR 10Segment 3.3V/5V/9V/12V/15V/18V/24V 18-Pin PDIP Tube LED Lighting Drivers DOT/BAR DISPLAY DRVR IC DRIVER DOT BAR DISPLAY 18-DIP LM3916N-1/NOPB, Display Driver 10-Segments, 3.3, 5, 9, 12, 15, 18, 24V, 18-Pin MDIP IC, DOT/BAR DISPLAY DRIVER, DIP-18 Driver; display controller; 30mA; 1.2÷1.34V; Channels:10; DIP18 Dot/Bar Display Driver Dot/Bar Driver VU-Meter DIL-18, LM3916, LM3916N-1/NOPB, Texas Instruments 10数字 10段 显示驱动器, 3.3 V, 5 V, 9 V, 12 V, 15 V, 18 V, 24 V, 18引脚 MDIP封装
LM3914N-1/NOPB
Texas Instruments Incorporated
. LM3914N-1/NOPB - LED, LCD, Vacuum Fluorescent (VF) Driver 18-DIP from Texas Instruments. from now!
LM3914N-1
texas instruments
LED DRVR 10Segment 18-Pin PDIP Rail LED Lighting Drivers Dot/Bar Display Dvr IC DRIVER DOT BAR DISPLAY 18-DIP LED DRVR 10Segment 18-Pin PDIP Tube LED BAR GRAPH DRIVER, 3914, DIP18 IC, DOT/BAR DISPLAY DRIVER, PDIP-18 Dot/Bar Display Driver
MAX6946ATE+
Analog Devices, Inc.
LED DRVR 3Segment 2.5V/3.3V 16-Pin TQFN EP LED Lighting Drivers 10-Port Constant Current LED Driver IC LED DRIVER LINEAR 16-TQFN

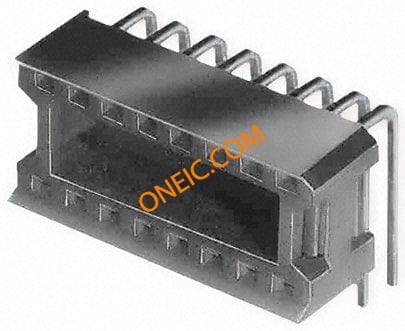

20-823-90T
