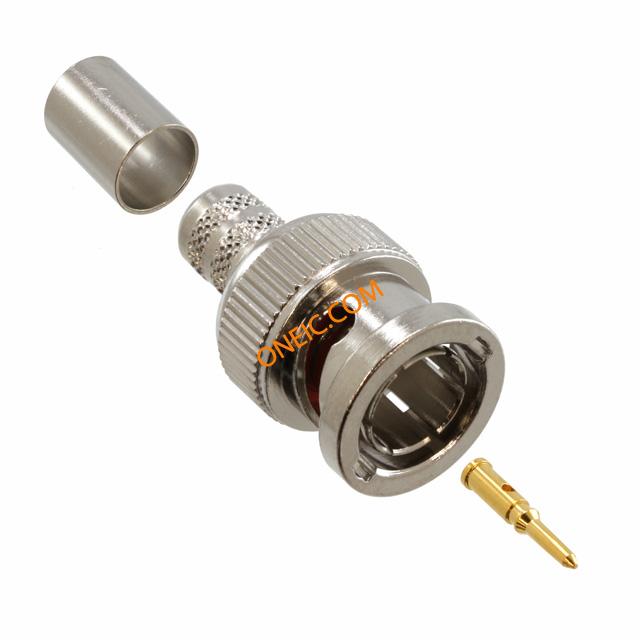

112509
| 制造商 | Amphenol Corporation |
| 描述 | Conn BNC PL 0Hz to 1GHz 75Ohm Crimp ST Cable Mount Gold CONN BNC PLUG STR 75 OHM CRIMP connector;rf coaxial;bnc str crimp plug;captive contact;75 ohm;b8281;b9231;b9141 RF Connectors / Coaxial Connectors BNC CRIMP PLUG B8281-75 OHM connector, rf coaxial, bnc str crimp plug, captive contact, 75 ohm, b8281, b9231, b9141 |
| 分类 |
商业参数
| 产品 | Connectors | 零件号别名 | 319-0346 |
| 产品类别 | RF Connectors / Coaxial Connectors | 标准包装数量 | Bag |
| 工厂包装数量 | 100 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | ||
电气参数
| 频率 | 0 to 1 GHz | 阻抗 | 75 Ohm |
| 额定电压 | 500V | 耦合系数 | Bayonet |
| 最大频率 | 4GHz | ||
机械参数
| 重量 | 0.363322 oz | 包装方式 | Bulk |
| 电缆类型 | Belden 8281, Belden 9141, Belden 9231 | 本体表面处理 | Nickel |
| 电缆组 | Belden 8281 | 方向 | Straight |
| 端接方式 | Crimp | 基体材料 | Brass |
| 外壳颜色 | Silver | 安装类型 | Cable Mount |
| 行程角度 | Straight | 连接器类型 | Plug, Male Pin |
| 接触镀层 | Gold | 紧固类型 | Bayonet Lock |
| 外壳涂层 | Nickel | 连接器样式 | BNC |
| 连接器用途 | Bayonet | 触头材料 | Brass |
| 壳体材料 | Brass | 主要材料 | BNC |
| 端接样式 | Cable - Crimp | 屏蔽层端接方式 | Crimp |
| 接触件端接 | Crimp | 介电材料 | Polyoxymethylene (POM) Acetal |
| 中心触点镀层工艺 | Gold | 中心触点材料 | Brass |
产品信息
| 类型 | BNC | 连接器性别 | PL |
| 产品特性 | Captivated Contact | 极性 | Standard |
| 连接类型 | Coaxial Cable | 射频系列/标准 | 112509 |
| 应用细节 | Commercial | ||
环境参数
| 插拔次数 | 500 | 工作温度 | - 40 C to + 155 C |
文档与媒体
相关型号
112713
amphenol connex
Connector Accessories BNC Female Cap With Chain Brass Nickel Finish CONN BNC FEMALE CAP W/CHAIN connector accessory;rf coaxial;bnc female cap and 100mm chain;for plugs RF Connector Accessories BNC JACK CAP AND CHAIN CAP, BNC COAXIAL CONNECTOR
47-20001
amphenol connex
Crimp Tool, Crimp Die Set Punches & Dies DIE FOR RG6 59 B8281 BNC/TNC TOOL DIE SET .324/.255/.068/.042 DIE FOR RG6, 59, B8281 BNC/TNC
47-10110
amphenol connex
Crimp Tool With Die Crimpers CRIMP TOOL W/DIE RG6/59/B8281 Hand Tools CRIMP TOOL W/DIE RG6/59/B8281 TOOL CRIMP .324/.255/.068/.042 tool;ratcheted hand crimp tool w/die set;cavities:.324;.255;.068;.042(see notes) tool, ratcheted hand crimp tool w/die set, cavities:.324, .255, .068, .042(see notes)

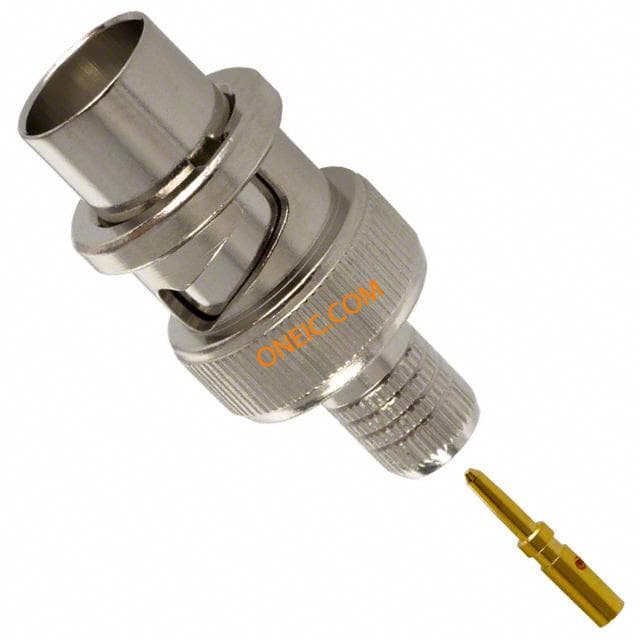

31-321-1000
Amphenol RF
RF Connectors PLUG CONN BNC PLUG STR 50 OHM CRIMP RF Connectors / Coaxial Connectors PLUG Conn BNC PL 0Hz to 4GHz 50Ohm Crimp ST Cable Mount Gold

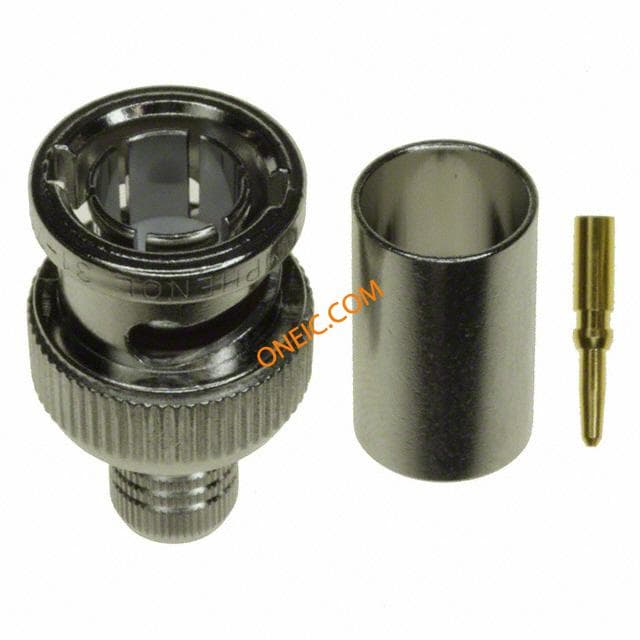

31-71032
