点击放大查看

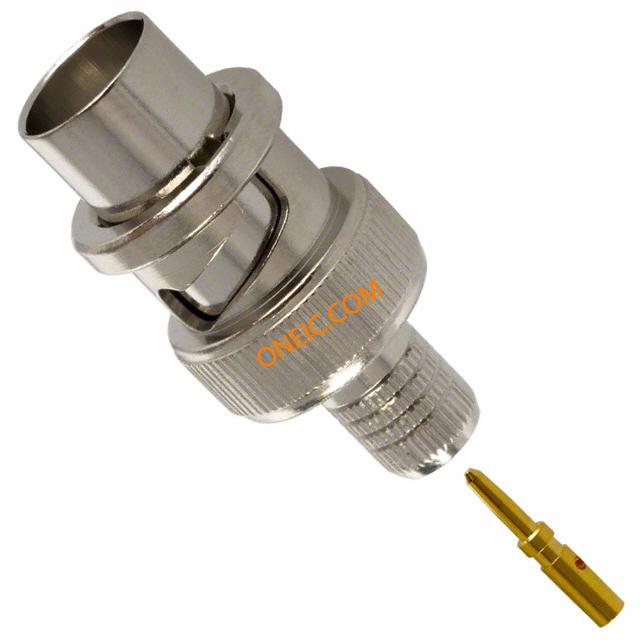

31-321-1000
| 制造商 | Amphenol Corporation |
| 描述 | RF Connectors PLUG CONN BNC PLUG STR 50 OHM CRIMP RF Connectors / Coaxial Connectors PLUG Conn BNC PL 0Hz to 4GHz 50Ohm Crimp ST Cable Mount Gold |
| 分类 |
商业参数
| 产品 | Connectors | 零件号别名 | 031-321-1000 16R0587 40F6322 |
| 产品类别 | RF Connectors / Coaxial Connectors | 标准包装数量 | 1 |
合规参数
| RoHS | RoHS Compliant By Exemption | ||
电气参数
| 阻抗 | 50 Ohm | 额定电压 | 500V |
| 耦合系数 | Bayonet | 最大频率 | 4GHz |
机械参数
| 包装方式 | Bulk | 电缆类型 | Belden 8281, Belden 88281 |
| 本体表面处理 | Nickel | 电缆组 | Belden 9231 |
| 方向 | Straight | 基体材料 | Brass |
| 外壳颜色 | Silver | 安装类型 | Free Hanging (In-Line) |
| 连接器类型 | Plug, Male Pin | 接触镀层 | Gold |
| 紧固类型 | Bayonet Lock | 连接器样式 | BNC |
| 触头材料 | Brass | 端接样式 | Cable - Crimp |
| 屏蔽层端接方式 | Crimp | 接触件端接 | Crimp |
| 介电材料 | Polytetrafluoroethylene (PTFE) | 中心触点镀层工艺 | Gold |
| 中心触点材料 | Brass | 供应商器件封装 | Straight |
产品信息
| 连接器性别 | Plug | 极性 | Standard |
| 射频系列/标准 | BNC | ||
环境参数
| 插拔次数 | 500 | 工作温度 | -65°C ~ 165°C |
