点击放大查看

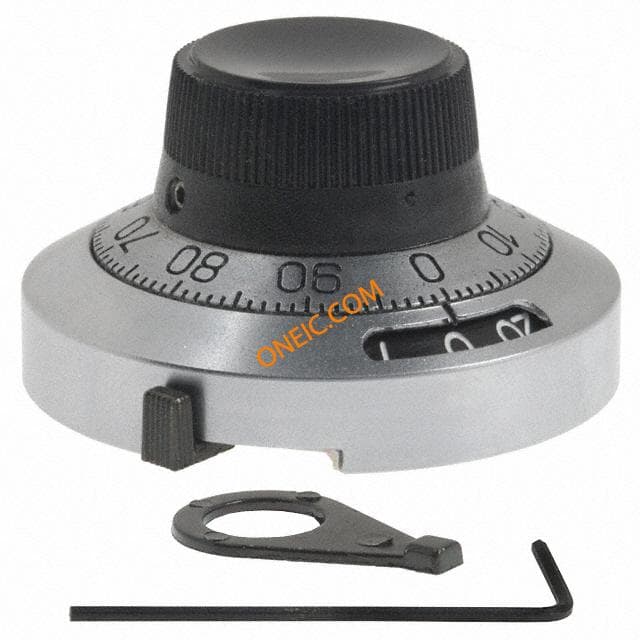

H-46-6A
| 制造商 | Bourns, Inc. |
| 描述 | DIAL - 46MM, 0-20 TURNS COUNTING Knobs & Dials 46mm Body 1/4Shaft Turns-Counting Dial,Satin Chrome Finish COUNTING DIAL 0-20 TURNS Dial - 46mm, 0-20 turns counting Dial;Turns-Counting; Analog; 20 Turns;100per Turn;Shaft Dia 0.25in COUNTING DIAL, 0-20 TURNS, 6.35MM COUNTING DIAL, 15 TURNS, 6.35mm Dial;Turns-Counting,Analog;20Turns;100perTurn;ShaftDia0.25in Precise knob; with counting dial; Shaft d:6.35mm; Ø46mm Turns-counting dial, H-46-6A, Bourns Bourns 黑色 电位计旋钮, 6.35mm轴, 46mm直径旋钮 |
| 分类 |
商业参数
| 产品类别 | Knobs & Dials | 标准包装数量 | 10 |
| 工厂包装数量 | 10 | ||
合规参数
| RoHS | RoHS Compliant By Exemption | SVHC | :No SVHC (16-Dec-2013) |
| 欧盟RoHS | Compliant | 海关税号 | 85334010 |
机械参数
| 颜色 | Satin Chrome | 表面处理 | SatinChrome |
| 重量 | 0.073 | 直径 | 17.5 mm |
| 材料（通用） | Metal | 头部尺寸 | 0.05in. |
| 包装方式 | Tray | 轴径尺寸 | 6.35 mm |
| 基体材料 | :Satin chrome | 安装样式 | Panel |
| 轴直径 | :6.35mm | 轴径 | 0.25" |
| 包装数量 | 10 | 尺寸/外形 | 100perTurn |
| 连接器颜色 | chromium plated | 额定扭矩（oz-in / mNm） | 16.94N-cm(Min.) |
产品信息
| SPG | 10 | 类型 | Dial |
| 样式 | :Round | 设计类型 | Hex Set Screw |
| 系列 | H | 产品特性 | digital pointer |
| 二极管类型 | Turns-Counting,Analog | 成分 | :Satin Chrome |
| 附件类型 | Turns Counting Dial | 测量范围 | 20Turns |
| 圈数 | 20 | 单元数量 | 1 |
| 应用细节 | Powersupplies,sensors,medical,automation,testequipment. | 有铅工艺兼容 | :Yes |
| 适用产品/相关产品 | Precision Potentiometer | ||
