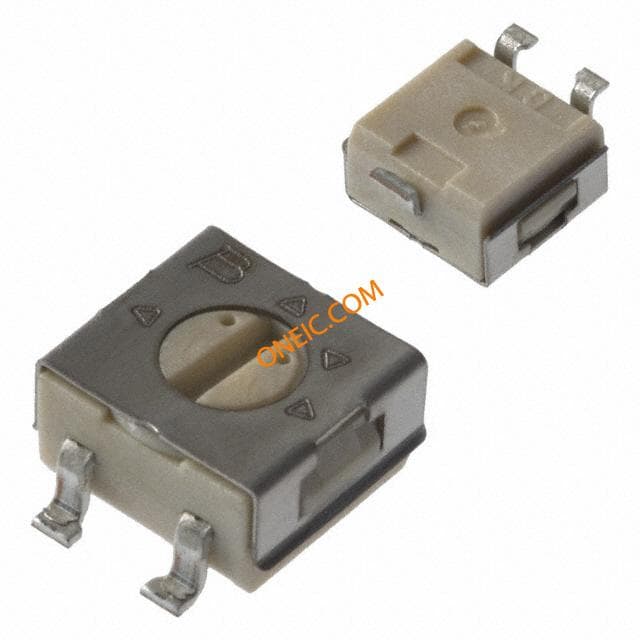

3314G-1-103E
| 制造商 | Bourns, Inc. |
| 描述 | Res Cermet Trimmer 10K Ohm 20% 1/4W 1(Elec)/1(Mech)Turn 2.45mm (5 X 6.2 X 2.55mm) Gull Wing SMD Embossed T/R Res Cermet Trimmer 10K Ohm 20% 0.25W(1/4W) 1(Elec)/1(Mech)Turn 2.45mm (5 X 6.2 X 2.55mm) Gull Wing SMD Embossed T/R TRIMMER 10K OHM 0.25W SMD 3314G SMT top adj cermet trimmer,10K 4mm Trimmer Resistors - SMD 4mm SQ 10K Res Cermet Trimmer 10K Ohm 20% 0.25W 1(Elec)/1(Mech)Turn 2.45mm (5 X 6.2 X 2.55mm) Gull Wing SMD Embossed T/R TRIMMING POTENTIOMETER, 10K Trimmer;Cermet;Rest10Kilohms;SMD;1Turn;Pwr-Rtg0.25W Potentiometer: mounting; single turn, horizontal; 10kΩ; 250mW; SMD Trimmer Cermet SMD 10 kOhm 250 mW, 3314G-1-103E, Bourns Bourns 3314G 系列 表面贴装 微调电阻器, 带 鸥翼型接端, 10kΩ ±20%, 0.25W, ±100ppm/°C |
| 分类 |
商业参数
| 产品 | Trimmers | 其他名称 | 3314G-103EDKR |
| 产品类别 | Trimmer Resistors - SMD | 标准包装数量 | Tape & Reel |
| 工厂包装数量 | 500 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| 欧盟RoHS | Compliant | 海关税号 | 85334010 |
| 抗辐射加固 | No | 军用标准 | Not Required |
电气参数
| 容差 | 20 % | 电阻 | 10 KOhm |
| 元件类型 | Cermet | 功率（瓦） | 0.25W, 1/4W |
| 额定功率 | 1/4 W | 额定电压 | :300V |
| 电阻值（欧姆） | 10k | 接触电阻 | :0.03% |
| 电阻公差 | 10kΩ | 直流电阻（DCR）（最大） | :10kohm |
机械参数
| 深度 | 6.2mm | 锥度 | Linear |
| 宽度 | :4.5mm | 高度 | 2.55mm |
| 长度 | 5mm | 重量 | 0.000014 |
| 直径 | Not Required mm | 底座类型 | :SMD |
| 包装方式 | Embossed Tape and Reel | 本体尺寸 | 4.5 x 4.5 x 2.55mm |
| 安装类型 | Surface Mount | 卷盘容量 | :500 |
| 端子类型 | :Surface Mount (SMD, SMT) | 安装样式 | Surface Mount |
| 旋转角度 | :210° | 轴直径 | 2.45 mm |
| 总长度 | 5 mm | 包装数量 | 500 |
| 尺寸/外形 | Square - 0.177" L x 0.177" W x 0.100" H (4.50mm x 4.50mm x 2.55mm) | 胶带最大宽度 | :12mm |
| 连接器间距 | 2.3x5mm | 端接样式 | Gull Wing |
| 导体材料 | cermet | 电阻材料 | Cermet |
产品信息
| SPG | 500 | 类型 | Trimmer |
| 系列 | 3314 | 已删除 | Compliant |
| 技术 | Cermet | 失效率 | Not Required |
| 产品子类型 | Single Turn | 调节方式 | Top Adjustment |
| 特性 | linear | 圈数 | 1(Elec)|1(Mech) Turns |
| 单元数量 | 1 | 类型属性 | mounting |
环境参数
| 工作温度 | -55 to 125 °C | 温度系数 | ±100ppm/°C |
| 典型温度系数 | :100ppm/°C | ||
相关型号
3314G-1-103E
bourns
Res Cermet Trimmer 10K Ohm 20% 1/4W 1(Elec)/1(Mech)Turn 2.45mm (5 X 6.2 X 2.55mm) Gull Wing SMD Embossed T/R Res Cermet Trimmer 10K Ohm 20% 0.25W(1/4W) 1(Elec)/1(Mech)Turn 2.45mm (5 X 6.2 X 2.55mm) Gull Wing SMD Embossed T/R TRIMMER 10K OHM 0.25W SMD 3314G SMT top adj cermet trimmer,10K 4mm Trimmer Resistors - SMD 4mm SQ 10K Res Cermet Trimmer 10K Ohm 20% 0.25W 1(Elec)/1(Mech)Turn 2.45mm (5 X 6.2 X 2.55mm) Gull Wing SMD Embossed T/R TRIMMING POTENTIOMETER, 10K Trimmer;Cermet;Rest10Kilohms;SMD;1Turn;Pwr-Rtg0.25W Potentiometer: mounting; single turn, horizontal; 10kΩ; 250mW; SMD Trimmer Cermet SMD 10 kOhm 250 mW, 3314G-1-103E, Bourns Bourns 3314G 系列 表面贴装 微调电阻器, 带 鸥翼型接端, 10kΩ ±20%, 0.25W, ±100ppm/°C
H-91
bourns

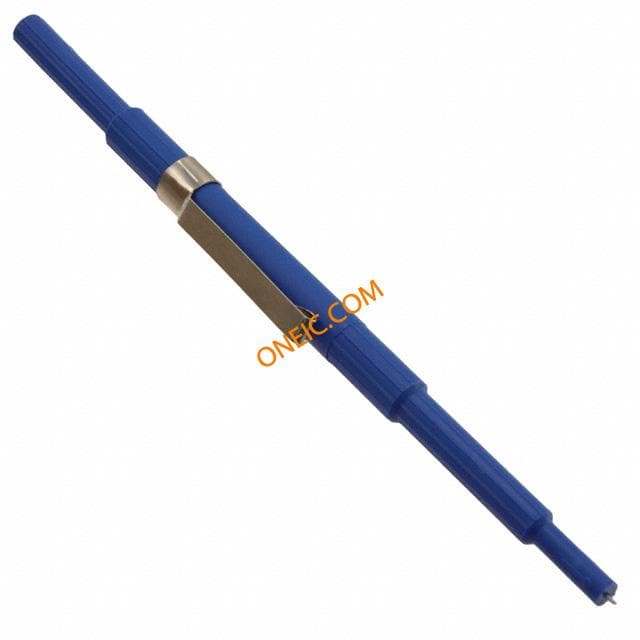

ADJUSTMENT TOOL FOR TRIMPOT Adjustment Tools For Use On Most Trimmer Shafts/Rotors TUNING TOOL FLAT 5" Trimmer, pot. - adjustment tool H-91 Potentiometer Tools & Hardware TRIMMER ADJUST TOOL Pocket Clip TrimmerTool,Adjustment;Tweeker;BldThk0.018in;BldW0.09in Tool: for potentiometers adjustment; Application:3214,3224 Adjusting tool, H-91, Bourns Bourns 微调电阻器
