9251 010500

制造商	Belden Inc.
描述	Coaxial Cables 13AWG 1C SHIELD 500ft SPOOL BLACK COAXIAL CABLE, RG8A/U, 52 OHM IMP, 13AWG (7X21), TRANSMISSION/COMPUTER BLACK RG-8/U type Coax cable, 500’ reels, 13 AWG stranded (7x21) .085" bare copper conductor, polyethylene insulation, bare copper braid shield (95% coverage), non-contaminating PVC jacket
分类	电缆、电线及组件同轴电缆（RF）同轴电缆（按阻抗分类）

对参数有疑问？问 AI 助手

商业参数

产品类别

Coaxial Cables

工厂包装数量

合规参数

RoHS

RoHS Compliant

电气参数

阻抗	52 Ohms	连接器阻抗	RG8 / U
阻抗 - 不平衡/平衡	RG 8

机械参数

长度	500 ft	重量	58 lbs
屏蔽	Shielded	电缆类型	COAXIAL
导线线规	13	屏蔽类型	BRAID ONLY
导体类型	STRANDED CONDUCTOR	导体材料	Copper
外径	0.405 in	介电材料	PE-POLYETHYLENE (SOLID)
电缆对数	7 x 21	护套（绝缘）材料	Polyvinyl Chloride - PVC

产品信息

UNSPSC代码

26121606

位置/触点数量

环境参数

浸没	NO NOT FLOODED OVER BRAID	防火等级	GENERAL PURPOSE (CM, CMG, CMX)
防护等级	NO NOT OUTDOOR GRADE MATERIAL	最高温度限值	+ 60 C

文档与媒体

在线文档

index.cfm?event=printPrev&pnum=9251&ut=English

PDF 文档

1345182.pdf

相关型号

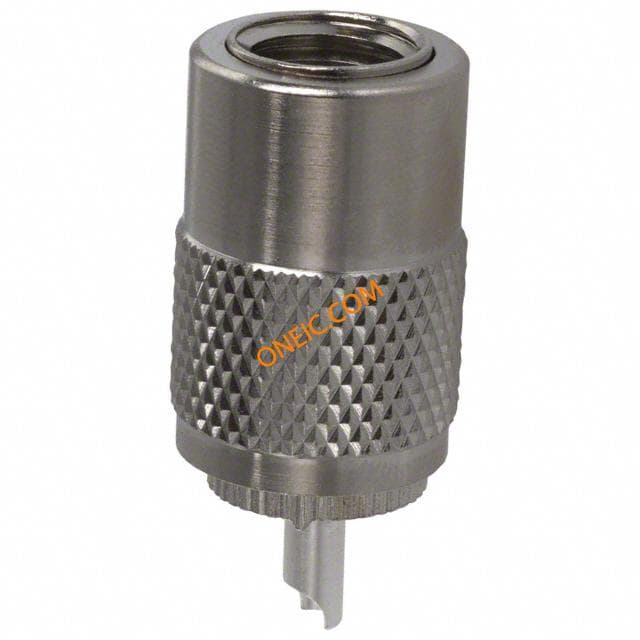

83-1SP-15RFX

amphenol

Conn UHF PL 0Hz to 300MHz Solder ST Cable Mount Silver CONN UHF PLUG STR SOLDER connector;rf coaxial;uhf commercial str plug;solder/solder;rg8;9;11;213;214;87a RF Connectors / Coaxial Connectors PLUG MALE UHF RF/COAXIAL, UHF PLUG, STRAIGHT, SOLDER

¥9.0600

详情

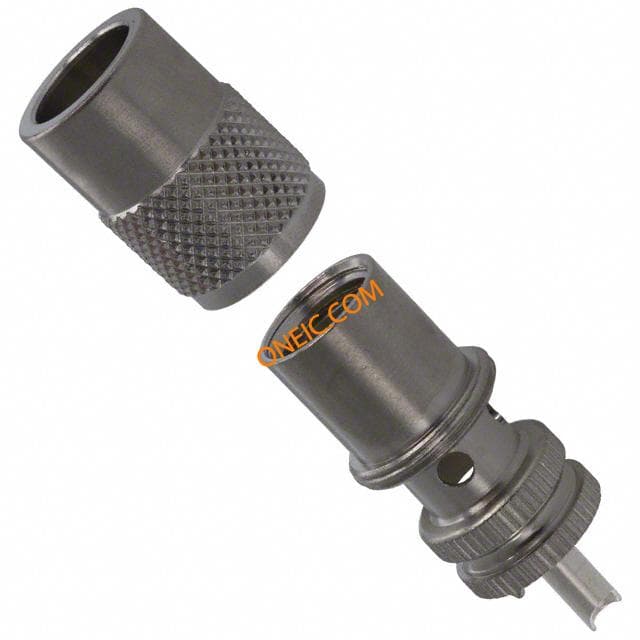

83-1SP-1050
