点击放大查看

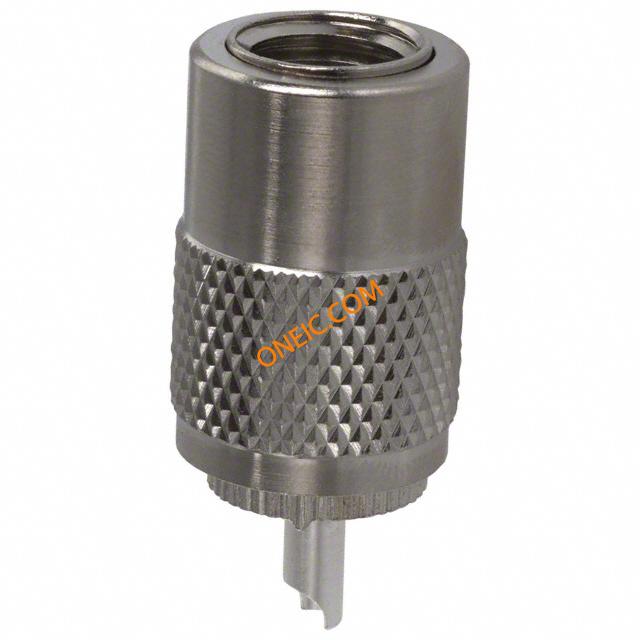

83-1SP-15RFX
| 制造商 | |
| 描述 | Conn UHF PL 0Hz to 300MHz Solder ST Cable Mount Silver CONN UHF PLUG STR SOLDER connector;rf coaxial;uhf commercial str plug;solder/solder;rg8;9;11;213;214;87a RF Connectors / Coaxial Connectors PLUG MALE UHF RF/COAXIAL, UHF PLUG, STRAIGHT, SOLDER |
| 分类 |
商业参数
| 产品 | Connectors | 零件号别名 | 083-1SP-15RFX 16R1563 713-9200 93F1465 |
| 产品类别 | RF Connectors / Coaxial Connectors | 标准包装数量 | Bulk |
合规参数
| RoHS | Lead free / RoHS Compliant | 海关税号 | 85369010 |
电气参数
| 频率 | 0 to 300 MHz | 阻抗 | Non-Constant |
| 额定电压 | 500V | 耦合系数 | Threaded |
| 最大频率 | 300MHz | ||
机械参数
| 重量 | 0.023 | 包装方式 | Bulk |
| 电缆类型 | RG-8, RG-10, RG-213, RG-225 | 本体表面处理 | Nickel |
| 电缆组 | RG-8, 9, 213, 225 | 方向 | Straight |
| 端接方式 | Solder | 基体材料 | Brass |
| 外壳颜色 | Silver | 安装类型 | Cable Mount |
| 连接器类型 | Plug, Male Pin | 接触镀层 | Silver |
| 紧固类型 | Threaded | 连接器样式 | UHF, RFX |
| 触头材料 | Beryllium Copper | 端接样式 | Cable - Solder |
| 屏蔽层端接方式 | Solder | 接触件端接 | Solder |
| 介电材料 | Phenol Formaldehyde (Phenolic) | 中心触点镀层工艺 | Silver |
| 中心触点材料 | Brass | 供应商器件封装 | Straight |
产品信息
| 类型 | UHF | 连接器性别 | PL |
| 系列 | :- | 极性 | Standard |
| 连接类型 | Coaxial Cable | 射频系列/标准 | UHF |
环境参数
| 插拔次数 | 500 | 工作温度 | -55°C ~ 150°C |
文档与媒体
相关型号

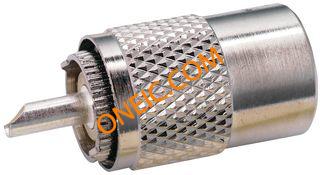

83-1SP-1050
Amphenol RF
RF Connectors STRT PLG RG8 PL-259 CONN UHF PLUG STR SOLDER Conn UHF PL 0Hz to 300MHz Solder ST Cable Mount Silver RF/COAXIAL, UHF PLUG, STRAIGHT, SOLDER CONNECTOR MALE STANDARD UHF PL-259 AMPHENOL 83-1SP-1050 83-1SP-1050 UHF Male Solder Type Connector (PL259), Straight, Knurled Nut

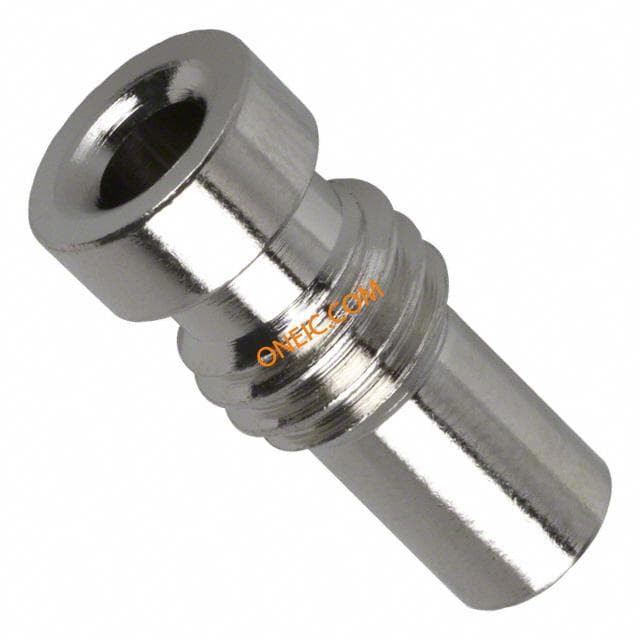

83-185-RFX
Amphenol RF
RF Adapters - In Series ADAPTOR REDUCING UHF REDUCING ADAPTER RG-58 connector accessory;rf coaxial;uhf commercial reducing adapt;use w/rg58;141;142 Conn UHF Reducing Adapter RCP/PL 0Hz to 300MHz ST Cable Mount REDUCING ADAPTER

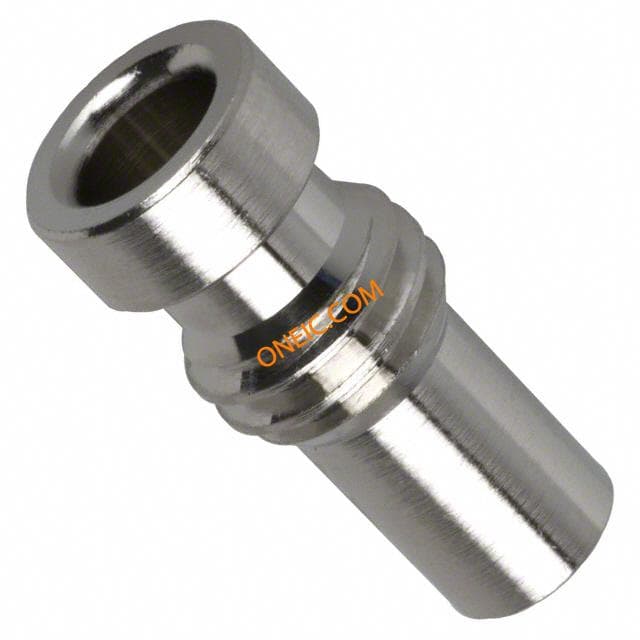

83-168-RFX
Amphenol RF
RF Adapters - In Series REDUCING ADAPTER UHF REDUCING ADAPTER RG-59 connector accessory;rf coaxial;uhf reducing adapter;use w/rg59;62;71;140;210 Conn UHF Reducing Adapter RCP/PL 0Hz to 300MHz ST Cable Mount REDUCING ADAPTER

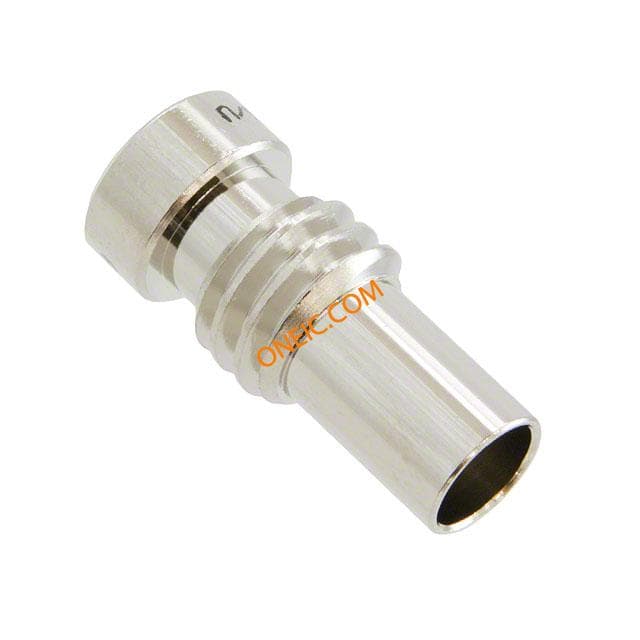

083-168
Amphenol-RF Division
UHF REDUCING ADAPTING RG-59 Conn UHF Reducing Adapter RCP/PL 0Hz to 300MHz ST Cable Mount connector accessory, rf coaxial, reducingadapter use on rg59, 62, 71, 140, 210

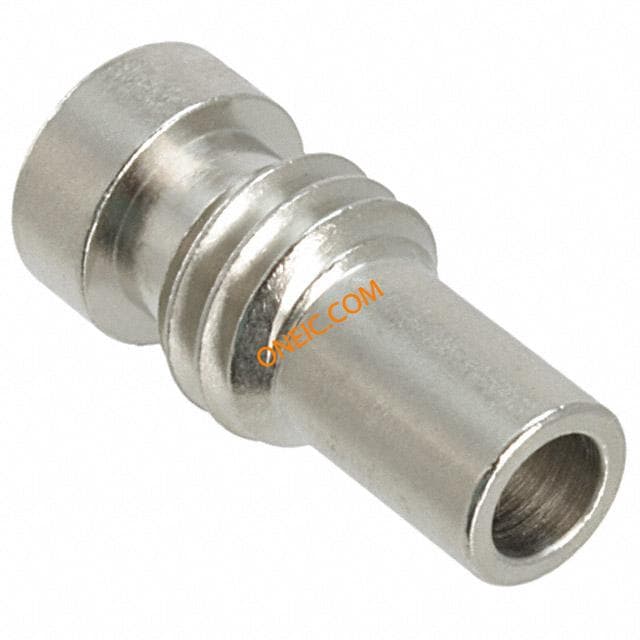

083-185
