9100 010U500

制造商	Belden Inc.
描述	Coaxial Cables 20AWG 1C SHIELD 500ft BOX BLACK Coax - 75 Ohm Coax 20 AWG GIFHDLDPE SH FRPVC Black
分类	电缆、电线及组件同轴电缆（RF）同轴电缆（按阻抗分类）

对参数有疑问？问 AI 助手

商业参数

产品类别

Coaxial Cables

合规参数

RoHS

RoHS Compliant

电气参数

阻抗	75 Ohms	额定电压	300 V
阻抗 - 不平衡/平衡	RG 59

机械参数

长度	500 ft	重量	12.125 lbs
屏蔽	Shielded	电缆类型	COAXIAL
导线线规	20	屏蔽类型	BOTH, BRAID OVER FOIL
线缆护套颜色	Black	导体类型	SOLID CONDUCTOR
导体材料	Bare Copper Covered Steel	外径	0.237 in
介电材料	FPE-FOAMED (CELLULAR) POLYETHYLENE	电缆对数	Solid
护套（绝缘）材料	Polyvinyl Chloride (PVC)

产品信息

系列	9100	UNSPSC代码	26121606
位置/触点数量	1

环境参数

浸没	NO NOT FLOODED OVER BRAID	防火等级	GENERAL PURPOSE (CM, CMG, CMX)
防护等级	NO NOT OUTDOOR GRADE MATERIAL	最高温度限值	+ 80 C

文档与媒体

PDF 文档

1346730.pdf

PDF 文档

9100.pdf

相关型号

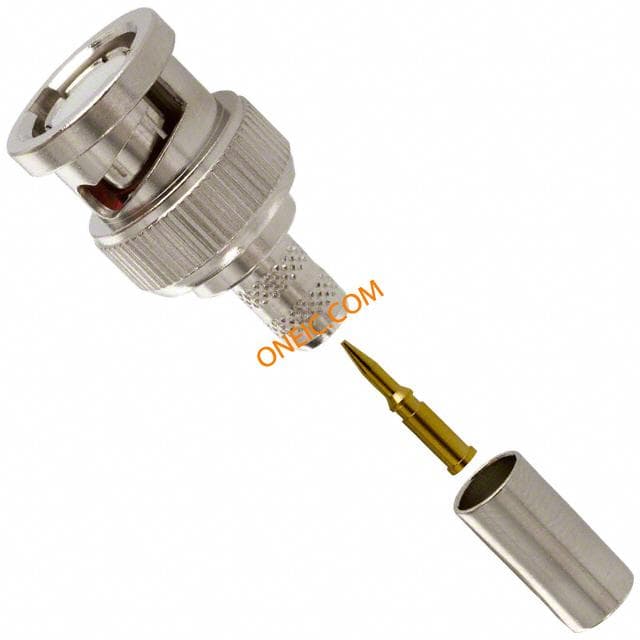

68175-5RFX

Amphenol RF

RF Connectors SRT PLG RG59 Ni CONN BNC PLUG STR 50 OHM CRIMP connector;rf coaxial;bnc commercial str plug;crimp-crimp;rg59(20awg cc);50 ohm RF Connectors / Coaxial Connectors SRT PLG RG59 Ni Conn BNC PL 0Hz to 4GHz 50Ohm Crimp ST Cable Mount Gold RF/COAXIAL, BNC PLUG, STR, 50 OHM, CRIMP coaxial connectors

¥6.0520

详情

31-70008-1000

amphenol

Conn BNC PL 0Hz to 4GHz 75Ohm Crimp ST Cable Mount connector;rf coaxial;bnc str plug;crimp-crimp;rg59(20awg cc)(see notes)75 ohm-t1 RF Connectors / Coaxial Connectors 75 OHM BNC PLUG RF/COAXIAL, BNC PLUG, STR, 75 OHM, CRIMP RF/Coaxial, BNC straight plug, 75 OHM, crimp, RG59

¥25.0240

详情

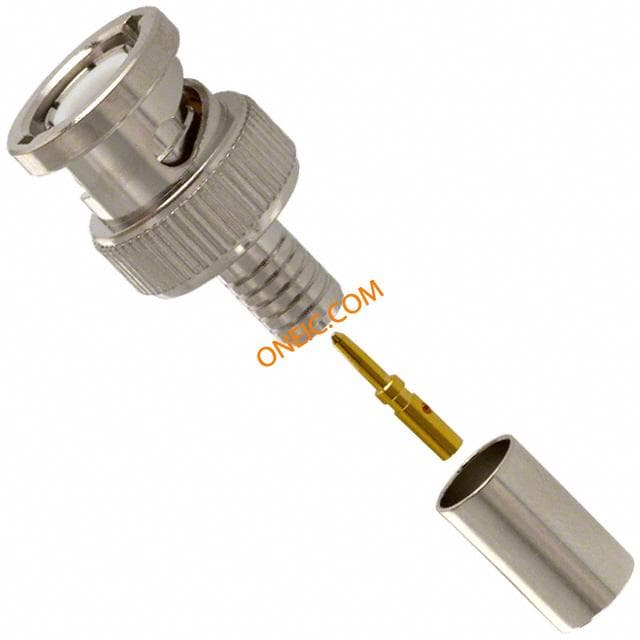

68175-1005

amphenol

Conn BNC PL 0Hz to 4GHz 50Ohm Crimp ST Cable Mount Gold CONN BNC PLUG STR 50 OHM CRIMP connector;rf coaxial;bnc straight plug;crimp-crimp;for rg59(20awg center cond) RF Connectors / Coaxial Connectors PLUG RF/COAXIAL, BNC PLUG, STR, 50 OHM, CRIMP

¥17.8160

详情

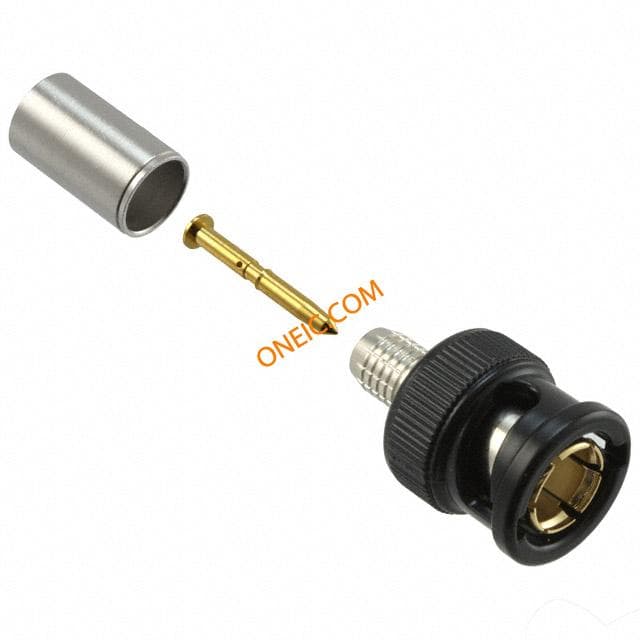

UPL2000-D2

Emerson Network Power Connectivity Trompeter

BNC PLUG CRIMP STR BELDEN 1505A CONN BNC PLUG STR 75 OHM CRIMP

¥18.7272

详情

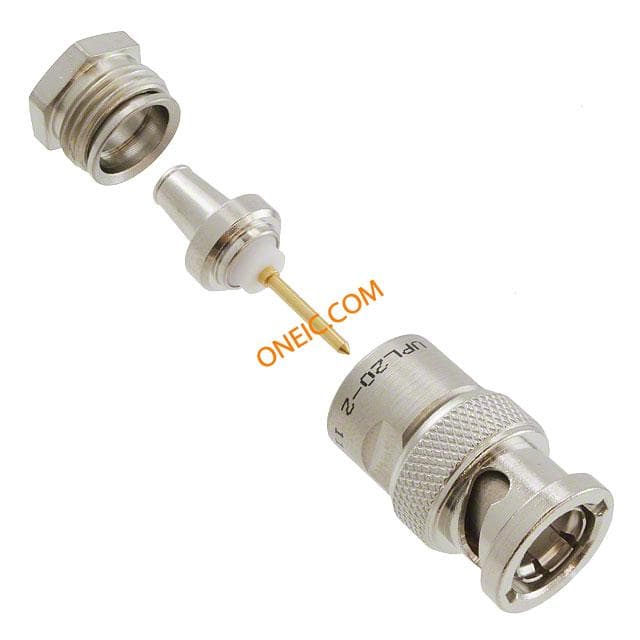

UPL20-2
