7810R 0101000
| 制造商 | |
| 描述 | Coaxial Cables 10AWG 1C SHIELD 1000ft SPOOL BLACK RG-8, 10 AWG SOLID .108 IN. BARE COPPER-COVERED ALUM, DUOBOND II, GAS INJECTED H Coax - RG-8 Type 10 AWG LDPE/FHDPE SH FRPVC Black |
| 分类 |
商业参数
| 产品类别 | Coaxial Cables | 工厂包装数量 | 1 |
合规参数
| RoHS | RoHS Compliant | ||
电气参数
| 阻抗 | 50 Ohms | 连接器阻抗 | RG8 / U |
| 阻抗 - 不平衡/平衡 | RG 8 | ||
机械参数
| 长度 | 1000 ft | 重量 | 95 lbs |
| 屏蔽 | Shielded | 电缆类型 | COAXIAL |
| 导线线规 | 10 | 屏蔽类型 | BOTH, BRAID OVER FOIL |
| 导体类型 | SOLID CONDUCTOR | 导体材料 | Bare Copper Covered Aluminum |
| 外径 | 0.403 in | 介电材料 | FOAMED HDPE-HI-DENSITY POLYETHYLENE |
| 电缆对数 | Solid | 护套（绝缘）材料 | Polyvinyl Chloride - PVC |
产品信息
| 位置/触点数量 | 1 | ||
环境参数
| 浸没 | NO NOT FLOODED OVER BRAID | 防火等级 | RISER |
| 防护等级 | YES IS OUTDOOR GRADE MATERIAL | 最高温度限值 | + 75 C |
文档与媒体
相关型号

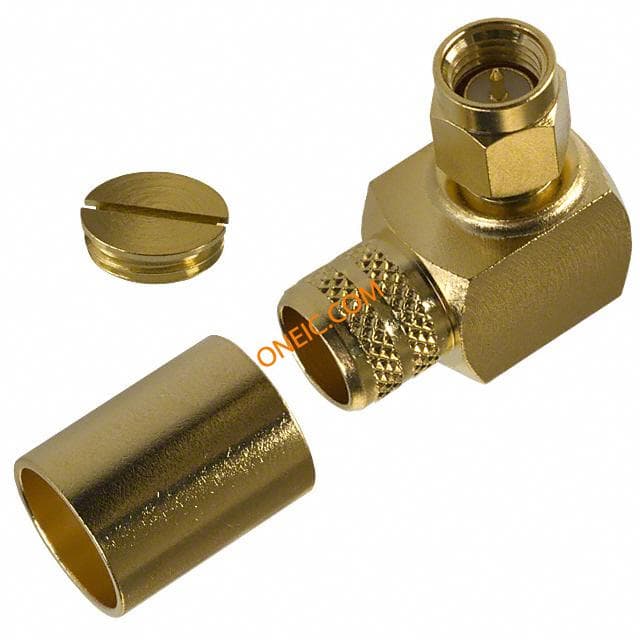

132299
amphenol connex
Conn SMA PL 0Hz to 12.4GHz 50Ohm Crimp RA Cable Mount Gold CONN SMA PLUG R/A 50 OHM SOLDER RF Connectors / Coaxial Connectors SMA R/A PLUG 7810A/ LMR400 GOLD connector, rf coaxial, sma rt angle crimpplug, for b9913, LMR400 cable, 50 ohm 132299 SMA Male Crimp Connector, Right Angle/Square Body, Cable Group I, Amphenol
132298
amphenol connex
Conn SMA PL 0Hz to 12.4GHz 50Ohm Crimp ST Cable Mount Gold CONN SMA PLUG STR 50 OHM SOLDER connector;rf coaxial;sma str crimp plug;for b9913;LMR400 cable;50 ohm RF Connectors / Coaxial Connectors SMA STRAIGHT PLUG 7810A/LMR400 RF/COAXIAL, SMA PLUG, STR, 50 OHM, CRIMP connector, rf coaxial, sma str crimp plug, for b9913, LMR400 cable, 50 ohm Plug; SMA; male; angled 90°; 50Ω; B7810A, B8214,B9913,LMR400 132298 SMA Male Crimp Connector, Cable Group I, Amphenol
31-6001-RFX
Amphenol RF
RF Connectors STRT PLG LMR400/7810 9913 7810A 8214 RF Connectors / Coaxial Connectors STRT PLG LMR400/7810 9913 7810A 8214 Conn TNC PL 0Hz to 11GHz 50Ohm Solder ST Cable Mount RF/COAXIAL, TNC PLUG, STR, 50 OHM, CRIMP 31-6001-RFX TNC Male Crimp Connector, Straight, (Commercial Grade)
SPC13831
Avnet, Inc.
RF/COAXIAL, N PLUG, STR, 50 OHM, CRIMP
SPC4277
Avnet, Inc.
RF/COAXIAL, N PLUG, STR, 50 OHM, CLAMP
SPC4344
Avnet, Inc.
