132298
| 制造商 | |

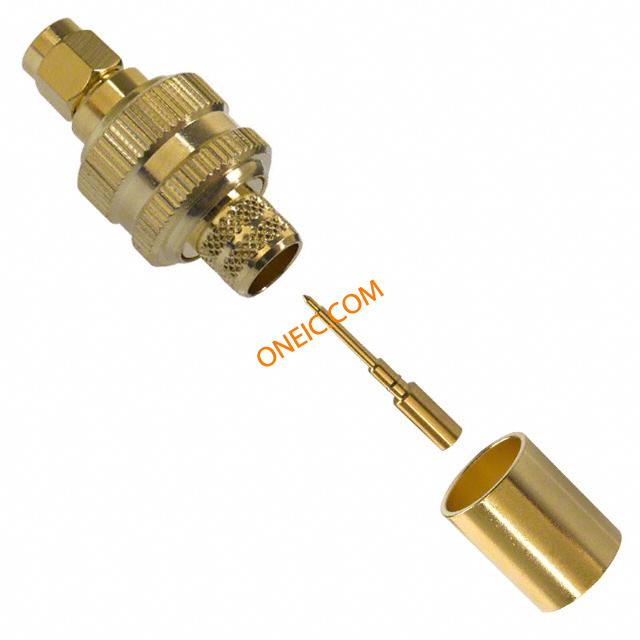

| 描述 | Conn SMA PL 0Hz to 12.4GHz 50Ohm Crimp ST Cable Mount Gold CONN SMA PLUG STR 50 OHM SOLDER connector;rf coaxial;sma str crimp plug;for b9913;LMR400 cable;50 ohm RF Connectors / Coaxial Connectors SMA STRAIGHT PLUG 7810A/LMR400 RF/COAXIAL, SMA PLUG, STR, 50 OHM, CRIMP connector, rf coaxial, sma str crimp plug, for b9913, LMR400 cable, 50 ohm Plug; SMA; male; angled 90°; 50Ω; B7810A, B8214,B9913,LMR400 132298 SMA Male Crimp Connector, Cable Group I, Amphenol |
| 分类 |
商业参数
| 产品 | Connectors | 其他名称 | ACX1200 |
| 零件号别名 | 319-0157 | 产品类别 | RF Connectors / Coaxial Connectors |
| 标准包装数量 | Bag | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 海关税号 | 85366910 |
电气参数
| 频率 | 0 to 12.4 GHz | 阻抗 | 50 Ohm |
| 耦合系数 | Threaded | 最大频率 | 12.4GHz |
机械参数
| 长度 | 1.425 in. | 重量 | 1.068801 oz |
| 包装方式 | Bulk | 电缆类型 | Belden 7810A, 8214, 9913; LMR400 |
| 本体表面处理 | Gold | 电缆组 | LMR-400 |
| 方向 | Straight | 端接方式 | Crimp |
| 基体材料 | Brass | 外壳颜色 | Gold |
| 安装类型 | Cable Mount | 行程角度 | Straight |
| 连接器类型 | Plug, Male Pin | 接触镀层 | Gold |
| 紧固类型 | Threaded | 外壳涂层 | Gold |
| 安装样式 | for cable | 连接器样式 | SMA |
| 连接器用途 | Threaded | 触头材料 | Brass |
| 壳体材料 | Brass | 包装数量 | 25 |
| 主要材料 | SMA | 连接器 - 电缆 | plug |
| 端接样式 | Cable - Crimp | 屏蔽层端接方式 | Crimp |
| 接触件端接 | Solder | 介电材料 | Polytetrafluoroethylene (PTFE) |
| 绝缘材料 - 材质 | teflon | 中心触点镀层工艺 | Gold |
| 中心触点材料 | Brass | 供应商器件封装 | Right Angle |
| 触点材料 - 镀层 | gold plated | ||
