1855A 010500
| 制造商 | Belden Inc. |
| 描述 | Coaxial Cables 23AWG 1C SHIELD 500ft SPOOL BLACK CABLE, COAXIAL, SUB MINI RG-59/U, 23AWG, 500FT, BLK COAXIAL CABLE, 23AWG SOLID, 75 OHM IMP, SUBMINATURE PRECISIONS VIDEO CABLE BLACK |
| 分类 |
商业参数
| 产品类别 | Coaxial Cables | 工厂包装数量 | 1 |
合规参数
| RoHS | RoHS Compliant | 标准 | UL NEC/cUL CEC, EU CE |
| 海关税号 | 85444920 | ||
电气参数
| 阻抗 | 75 Ohms | 额定电压 | 300 V |
| 连接器阻抗 | 59/U | ||
机械参数
| 长度 | 500 ft | 重量 | 1 lb |
| 屏蔽 | Unshielded | 电缆类型 | :RG59 |
| 导线线规 | 23 | 线缆护套颜色 | :Black |
| 屏蔽材料 | Tinned Copper | 总长度 | :500ft |
| 导体材料 | Copper | 外径 | 0.159 in |
| 介电材料 | Foam High Density Polyethylene | 绝缘材料 - 材质 | Foam High Density Polyethylene |
| 电缆对数 | Solid | 线规或范围 - AWG | :23AWG |
| 护套（绝缘）材料 | Polyvinyl Chloride - PVC | 外径-未扩张 | 0.233 " |
产品信息
| 应用细节 | Indoor, Outdoor, Aerial, Analog, Digital, Video | 位置/触点数量 | 1 |
环境参数
| 最高温度限值 | 75 C | ||
文档与媒体
相关型号
1855ABHD1
Belden Wire & Cable
RF Connectors 22-24AWG BNCHD 1PC COMPRSN CONECTR PRPL RF Connectors / Coaxial Connectors 22-24AWG BNCHD 1PC COMPRSN CONECTR PRPL RF/COAX, HD BNC PLUG, STR, CRIMP, 75 OHM, PUR Plug; BNC; male; 75Ω; B1855A; crimped TRUE 360; 500cycles; -40÷60°C 22-24 gauge BNC HD Connector
1855ABHDL
Belden Wire & Cable
RF Connectors 22-24AWG BNCHD 1P LK COMPRSN CONECTR PRPL RF Connectors / Coaxial Connectors 22-24AWG BNCHD 1P LK COMPRSN CONECTR PRPL RF/COAX, HD BNC PLUG, STR, CRIMP, 75 OHM, PUR Plug; BNC; male; with locking collar; 75Ω; B1855A; 500cycles sale 22-24 AWG BNC HD CONN 1-PC LOCKING POL. NICKEL PURPLE 75 OHM ROHS
112955
amphenol connex
Conn BNC PL 0Hz to 1GHz 75Ohm Crimp ST Cable Mount Gold TRUE 75 OHM BNC PLUG TP TRUE 75 OHM BNC PLUG CONN BNC PLUG STR 75 OHM CRIMP RF Connectors / Coaxial Connectors BNC PLUG 8218 1865A 1855A 1167B RF/COAXIAL, BNC PLUG, STR, 75 OHM, CRIMP BNC, BNC PLG 8218 1865A 1855A 1167B

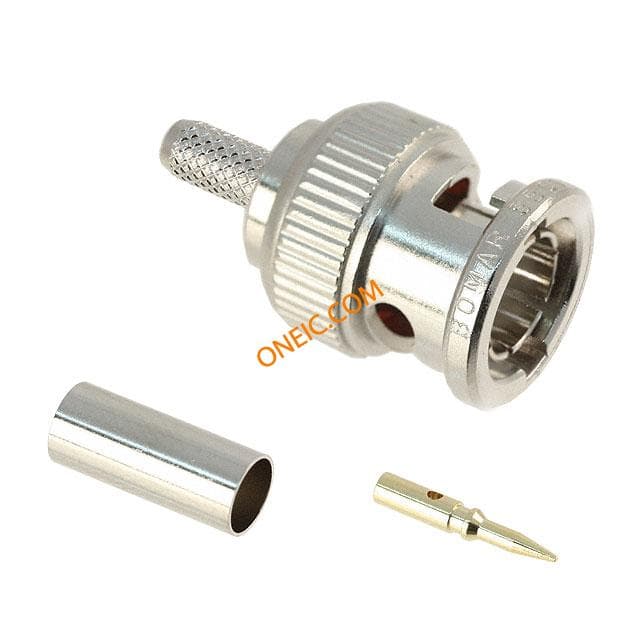

SBC1855A
Bomar Interconnect
RF Connectors PLUG F/ BELDEN 1855A CONN BNC PLUG STR 75 OHM CRIMP RF Connectors / Coaxial Connectors PLUG F/ BELDEN 1855A BNCCRIMPPLUGFORBELD1855A

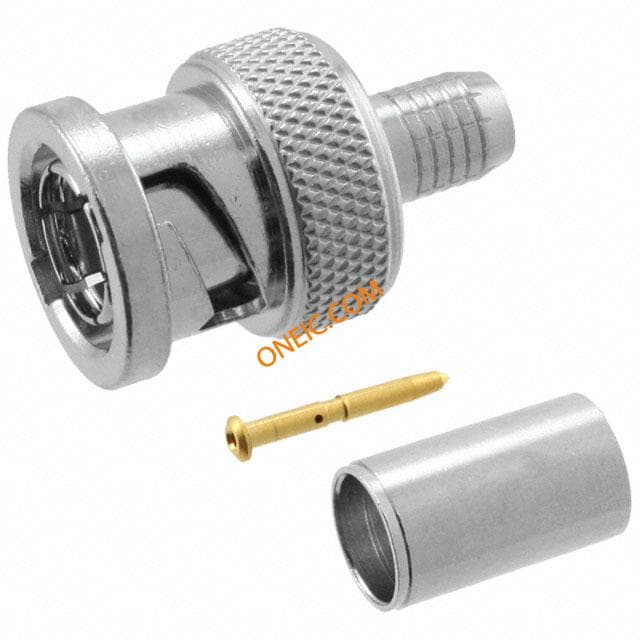

UPL220-009
