1327G8
| 制造商 | Anderson Power Products |

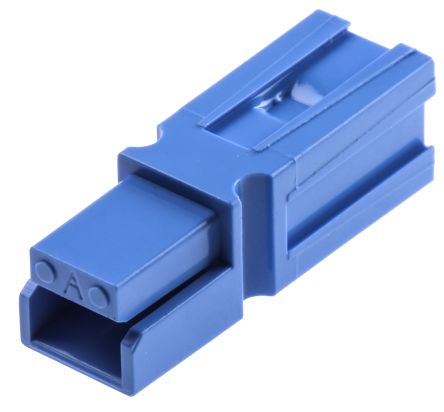

| 描述 | Heavy Duty Power Connectors PP15/45 HOUSING ONLY BLUE Blue housing for single pole module PLUG AND SOCKET CONNECTOR HOUSING Conn;Rect;PowerPoleHousing;PP15Series;Blue;15A;600V Connector unisex 1P, 1327G8, Anderson Power Products Anderson Power Products PP15-45 系列 1行 1针 电源连接器 , 面板安装 |
| 分类 |
商业参数
| 交货时间 | 28 Days | 商标名 | Powerpole |
| 子类别 | Connector Discrete Wire Housing | 工厂包装数量 | 100 |
合规参数
| RoHS | Compliant | 海关税号 | 85369010 |
电气参数
| 额定电压 | 600 V | 最大额定电流 | 15 A, 45 A |
机械参数
| 颜色 | :Blue | 重量 | 0.002 |
| 壳体颜色 | :Blue | 重量（g） | 1.11000 |
| 连接器类型 | :Plug & Socket | 排数 | 1 |
| 壳体材料 | Polycarbonate (PC) | 触点数 | 1 |
| 位数 | :1 | 线规或范围 - AWG | 16-12 |
| 第一连接器安装类型 | :Cable | ||
产品信息
| 连接器性别 | :Plug | 系列 | PP15 |
| 产品子类型 | Connectors | 适用产品/相关产品 | 1327G8-BK |
