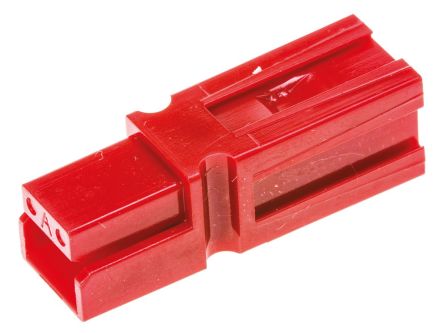

点击放大查看
1327
| 制造商 | |
| 描述 | ヘビーデューティパワーコネクタ PP15/45 HOUSING ONLY RED Red housing for single pole module Heavy Duty Power Connectors PP15/45 HOUSING ONLY RED Conn;Rect;HighCurrentHousing;PP15/45Ser;Powerpole;Red;15A;600V;FingerProof Connector unisex 1P, 1327, Anderson Power Products Anderson Power Products PP15-45 系列 1行 1针 电源连接器 , 面板安装 |
| 分类 |
商业参数
| 交货时间 | 28 Days | 商标名 | Powerpole |
| 子类别 | Connector Discrete Wire Housing | 工厂包装数量 | 100 |
合规参数
| RoHS | Compliant | ||
电气参数
| 额定电压 | 600 V | 极数 | 1 |
| 最大额定电流 | 15 A, 45 A | ||
机械参数
| 间距 | 7.9 | 方向 | 直 |
| 重量（g） | 1.00000 | 安装类型 | 面板安装 |
| 排数 | 1 | 壳体材料 | Polycarbonate (PC) |
| 主要材料 | HighCurrent | 连接器颜色 | red |
| 触点数 | 1 | 线规或范围 - AWG | 20-16 |
产品信息
| 类型 | GenderlessHousing | 设计类型 | Modular housing |
| 系列 | PP15 | 描述 | L x W x H= 26.6 x 7.9 x 7.9 mm |
| 制造商全称 | Powerpole | 产品子类型 | Housings |
| 连接方式 | Wire-Wire | 适用产品/相关产品 | 1327-BK |
环境参数
| 工作温度 | -20...+105 °C | ||
