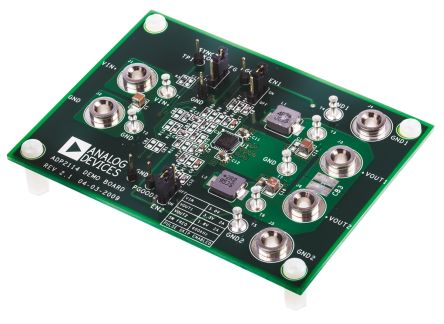

ADP2114-EVALZ
| 制造商 | Analog Devices, Inc. |
| 描述 | Evaluation Board For ADP2114 (Dual Output) BOARD EVALUATION 3.3V/1.8V Power Management IC Development Tools ADP2114 Eval Brd 4A Step-Down DC/DC Converter Evaluation ADP2114, DC TO DC CONV, EVAL BOARD Analog Devices ADP2114 直流-直流转换器 评估测试板 |
| 分类 |
商业参数
| 产品 | Evaluation Boards | 其他名称 | ADP2114EVALZ |
| 标准包装数量 | Boxed | 工厂包装数量 | 1 |
合规参数
| RoHS | Lead free / RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| 欧盟RoHS | Compliant | 海关税号 | 00000000 |
电气参数
| 核心类型 | :Power Management - Voltage Regulator | 额定电压 | 2.75 V to 5.5 V |
| 输出电流 | 4A, 2A | 元件数量 | :ADP2114 |
| 稳压器拓扑 | Buck | 开关频率 | 300kHz, 600kHz, 1.2MHz |
| 最小输入电压 | Adjustable | ||
机械参数
| 重量 | 0 | 包装方式 | Bulk |
| 电路板厚度 | Fully Populated | ||
产品信息
| 类型 | Development Kit | 系列 | ADP2114 |
| 内容 | Board | 产品特性 | :Standalone Capability, Two Independent Enable Inputs, Two Power Good Outputs |
| 功能 | Evaluation (demo) board is a complete, dual, step-down, dc-to-dc converter design based on the ADP2114 | 套件类型 | :Power Management - Voltage Regulator |
| 套件内容 | :Board | 主要用途 | DC/DC, Step Down |
| 输出及类型 | 2, Non-Isolated | 工具类型/特性 | ADP2114 |
| 使用的IC/零件 | ADP2114 | 芯片组制造商 | :Analog Devices |
| 应用细节 | :Step Down DC / DC Converter | 支持MCU系列 | :ADP2114 |
| 适用产品/相关产品 | ADP2114 | ||
