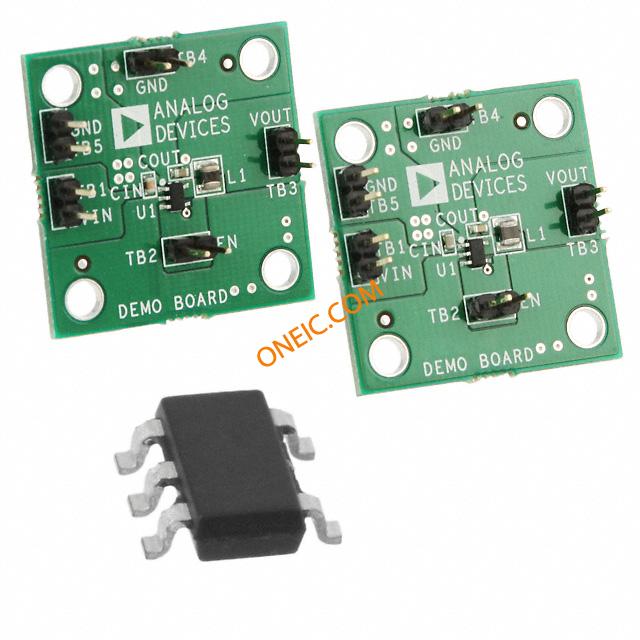

ADP2108UJZ-REDYKIT
| 制造商 | Analog Devices, Inc. |
| 描述 | Evaluation Board For Compact, 600mA, 3 MHz, Step-Down DC-To-DC Converter KIT REDY TOOL 1.2/3.3 ADP2108 Power Management IC Development Tools RedyKit 1233 ADP2108, DC TO DC CONV, EVAL KIT |
| 分类 |
商业参数
| 产品 | Evaluation Boards | 其他名称 | ADP2108UJZREDYKIT |
| 标准包装数量 | Boxed | 工厂包装数量 | 1 |
合规参数
| RoHS | Lead free / RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| 欧盟RoHS | Compliant | 海关税号 | 84718000 |
电气参数
| 额定电压 | 2.3 V to 5.5 V | 输出电流 | 600mA |
| 元件数量 | :ADP2108 | 稳压器拓扑 | Buck |
| 开关频率 | 3MHz | 最小输入电压 | 1.2V, 3.3V |
机械参数
| 重量 | 0.2 | 包装方式 | Bulk |
| 电路板厚度 | Fully Populated | ||
产品信息
| 类型 | Development Kit | 系列 | ADP2108 |
| 内容 | 2 Boards, Samples | 产品特性 | :Two Fully Assembled and Tested Evaluation Boards per Kit, Full Set of IC Voltage Options in each Kit |
| 套件类型 | :Power Management | 套件内容 | :ADP2108-1.2-EVALZ & ADP2108-3.3-EVALZ Evaluation Board, 33 ADP2108 Samples in Labelled Bag |
| 主要用途 | DC/DC, Step Down | 输出及类型 | 1, Non-Isolated |
| 工具类型/特性 | ADP2108 | 使用的IC/零件 | ADP2108 |
| 芯片组制造商 | :Analog Devices | 应用细节 | :DC/DC Buck Converter |
