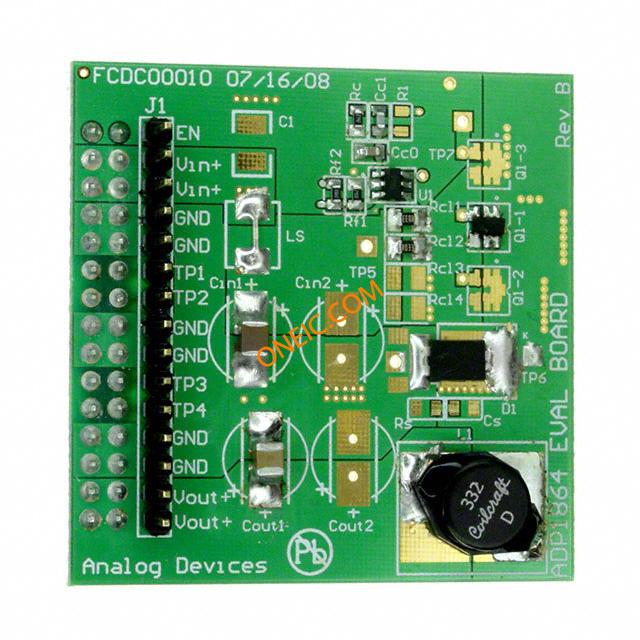

ADP1864-EVALZ
| 制造商 | |
| 描述 | Evaluation Board For Constant Frequency CurrentMode StepDown DcToDc Controller In TSOT BOARD EVALUATION ADP1864 Power Management IC Development Tools ADP1864 Eval Brd ADP1864, DC TO DC CNTLR, EVAL BOARD |
| 分类 |
商业参数
| 产品 | Evaluation Boards | 其他名称 | ADP1864EVALZ |
| 标准包装数量 | Bulk | 工厂包装数量 | 1 |
合规参数
| RoHS | Lead free / RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| 欧盟RoHS | Compliant | 海关税号 | 84735080 |
电气参数
| 额定电压 | 3.15 V to 14 V | 输出电流 | 3A |
| 元件数量 | :ADP1864 | 稳压器拓扑 | Buck |
| 开关频率 | 580kHz | 最小输入电压 | 3.3V |
机械参数
| 重量 | 0.5 | 包装方式 | Bulk |
| 电路板厚度 | Fully Populated | ||
产品信息
| 类型 | Development Kit | 系列 | ADP1864 |
| 内容 | Board | 产品特性 | :- |
| 功能 | Evalutation board for the ADP1864 current mode controller | 套件类型 | :Power Management - Voltage Regulator |
| 套件内容 | :Board | 主要用途 | DC/DC, Step Down |
| 输出及类型 | 1, Non-Isolated | 工具类型/特性 | ADP1864 |
| 射频系列/标准 | ADP1864 | 使用的IC/零件 | ADP1864 |
| 芯片组制造商 | :Analog Devices | 应用细节 | :Step Down DC / DC Converter |
| 适用产品/相关产品 | ADP1864 | ||
环境参数
| 工作温度 | - 40 C | ||
文档与媒体
相关型号
ADP1864AUJZ-R7
analog devices
DC DC Cntrlr Single-OUT Step Down 3.15V to 14V Input 6-Pin TSOT T/R IC REG CTRLR BUCK PWM TSOT23-6 DC-DC Controller 580kHz Current TSOT6 Switching Controllers Constant Freq Crnt Mode Step-Down 03-5 AMP NON SYNCHRONOUS BUCK CONTROLLER Analog Devices 直流-直流降压控制器, 5A, 14 V 降压, 650 kHz, 6针 TSOT封装
AD628ARMZ
analog devices
SP Amp DIFF AMP Dual ±18V/36V 8-Pin MSOP Tube IC OPAMP CURR SENSE 600KHZ 8MSOP AD628ARMZ, Differential Amplifier 5, 9, 12, 15, 18, 24, 28V 2-channel 8-Pin MSOP Differential Amplifiers Hi CM Vltg Gain Prog SP Amp DIFF AMP Dual �18V/36V 8-Pin MSOP Tube IC, AMP PROG DIFF, SMD, MSOP8, 628 Operational amplifier; 30kHz; 2.25÷36VDC; Channels:1; MSOP8 Differential Amplifier, MSOP-8, 0.5 kHz, AD628ARMZ, Analog Devices 2通道 差分放大器, 5 V，9 V，12 V，15 V，18 V，24 V，28 V, 8引脚 MSOP封装

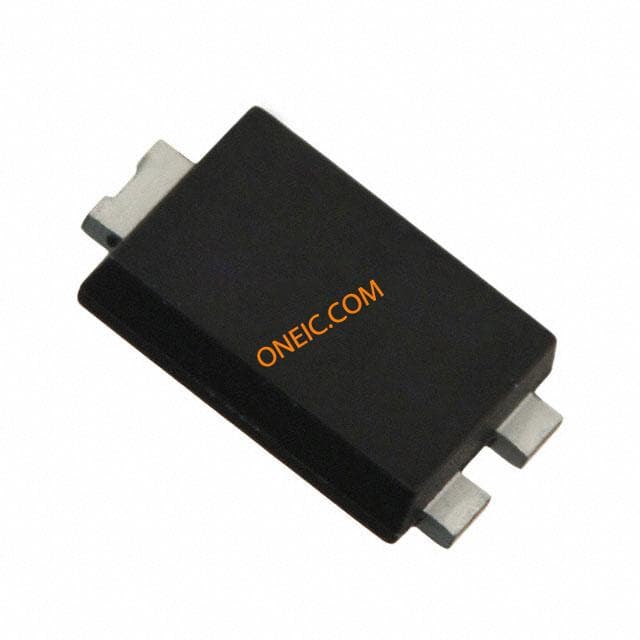

PDS1040L-13
