点击放大查看

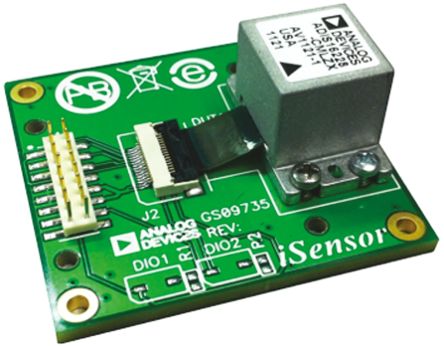

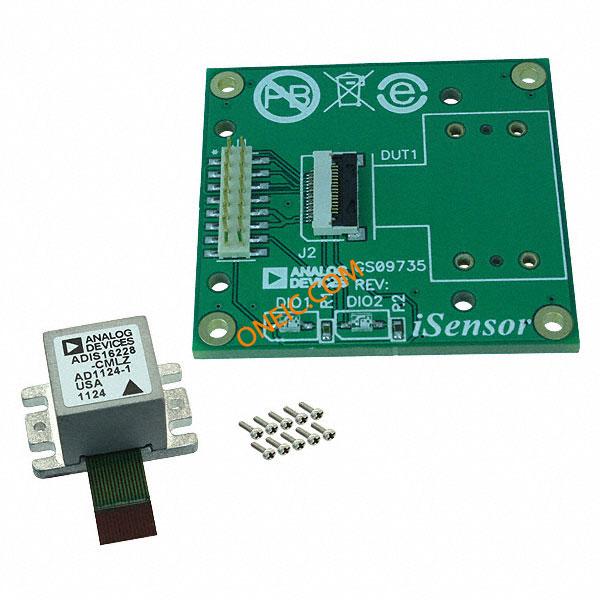

ADIS16228/PCBZ
| 制造商 | Analog Devices, Inc. |
| 描述 | ADIS16228/PCB EVAL. BD. Evaluation Board For Digital Triaxial Vibration Sensorwith FFT Analysis And Storage BOARD EVAL ADIS16228 Acceleration Sensor Development Tools ADIS16228/PCB EVAL. BD. ADIS16228, VIB SENSOR, EVAL BOARD Analog Devices 评估测试板 |
| 分类 |
商业参数
| 产品 | Interface Boards | 其他名称 | ADIS16228PCBZ |
| 标准包装数量 | 1 | 工厂包装数量 | 1 |
合规参数
| RoHS | Lead free / RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| 欧盟RoHS | Compliant | 海关税号 | 85423990 |
电气参数
| 接口 | SPI Serial | 输出类型 | Digital |
| 灵敏度 | 0.3052mg/LSB | 传感器类型 | Vibration, Accelerometer |
| 感应角度 | X, Y, Z | 感应范围 | ±18g |
| 供电电压 | 3 V ~ 3.6 V | 元件数量 | :ADIS16228 |
| 最小供电电压 | 3.3 V | 平均整流电流 Io | 40 mA |
机械参数
| 重量 | 0.01 | 包装方式 | Bulk |
| 加速度 | +/- 18 g | ||
产品信息
| 系列 | ADIS16228 | 内容 | Board |
| 嵌入式 | No | 产品特性 | :Flat Frequency Response upto 5kHz, Programmable Alarms, 6 Spectral Bands, 2 Auxiliary Digital I/Os |
| 套件类型 | :Sensor | 套件内容 | :- |
| 工具类型/特性 | ADIS16228 | 使用的IC/零件 | ADIS16228 |
| 芯片组制造商 | :Analog Devices | 应用细节 | :Digital Vibration Sensor |
环境参数
| 工作温度 | + 125 C | ||
文档与媒体
相关型号
TCSD-08-01-N
samtec inc.
Conn IDC Connector SKT 16 POS 2mm IDT RA Cable Mount Tube SOCKET, IDC, 2MM, 16WAY

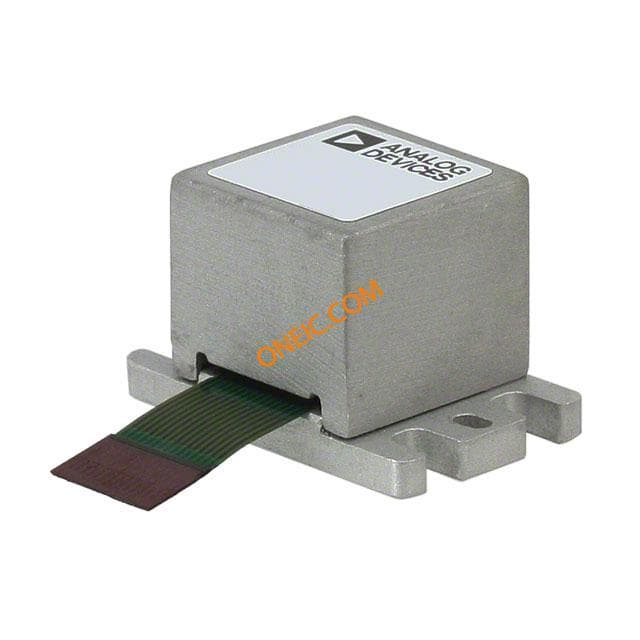

ADIS16228CMLZ
analog devices
Accelerometer Triple ±18g 3.3V 15-Pin Tray IC SENSOR DIGITAL TRI VIB 15-MOD Accelerometers Digital Triaxial Vibration Sensor IC, SENSOR, VIBRATION, 18g, 3 AXIS, ML-15-1 MODULE, VIBRATION SENSOR, TRIAXIAL Acceleration/Vibration sensor, ADIS16228CMLZ, Analog Devices , 3轴 加速表, SPI接口, 最高 5 kHz, 3.15 → 3.6 V, 15针 ML封装
ADIS16228/PCBZ
analog devices
ADIS16228/PCB EVAL. BD. Evaluation Board For Digital Triaxial Vibration Sensorwith FFT Analysis And Storage BOARD EVAL ADIS16228 Acceleration Sensor Development Tools ADIS16228/PCB EVAL. BD. ADIS16228, VIB SENSOR, EVAL BOARD Analog Devices 评估测试板
CMD28-21VGC/TR8/T1
Chicago Miniature
Standard LEDs - SMD GREEN WATER CLEAR GULL WING

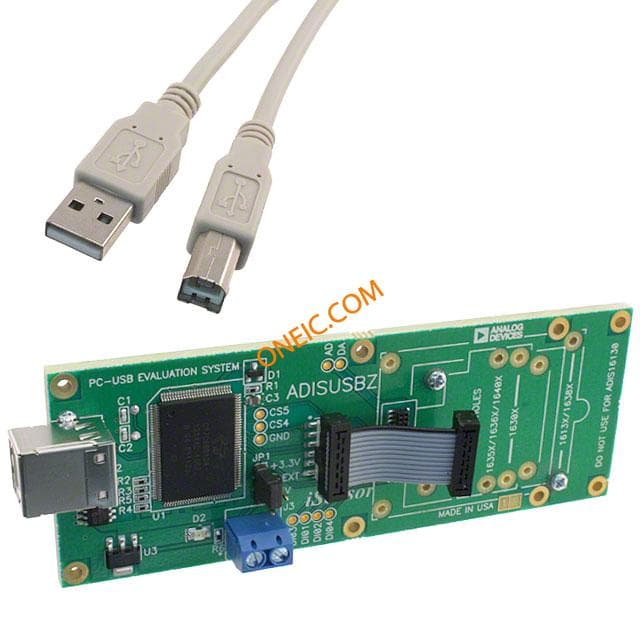

ADISUSBZ
