ADA4610-2ARMZ
| 制造商 | Analog Devices, Inc. |
| 描述 | OP Amp Dual GP R-R O/P ±15V 8-Pin MSOP Tube IC OPAMP JFET 16.3MHZ RRO 8MSOP ADA4610-2ARMZ, Operational Amplifier FET Input, Precision 16.3MHz R-R, 8-Pin MSOP Precision Amplifiers Low Noise Prec RRO JFET Dual OP AMP, PREC, DUAL, 15.4MHZ, 8MSOP Analog Devices 双 JFET 运算放大器, 16.3MHz 轨至轨, 8针 MSOP |
| 分类 |
商业参数
| 其他名称 | ADA46102ARMZ | 标准包装数量 | 50 |
| 工厂包装数量 | 50 | 标准封装名称 | MSOP |
合规参数
| RoHS | Lead free / RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| 欧盟RoHS | Compliant | 海关税号 | 85423990 |
电气参数
| 增益 | 107 dB | 电源抑制比 | 106 |
| 压摆率 | 61 V/µs | 输出类型 | Rail to Rail |
| 晶体管类型 | :JFET | 共模抑制比、电源抑制比（典型） | 94 |
| 输出电流 | 1.6mA | 供电电压 | ±4.5 V ~ 15 V |
| 供电类型 | Dual | 通道数量 | 2 |
| 输入偏置电流 | 5pA | ADC/DAC 数量 | :2 |
| 最小输入电压 | 400µV | 增益带宽积 | 16.3MHz |
| 轨到轨工作 | Rail to Rail Output | 输入偏置电流（最大） | 0.000025@±5V |
| 输出电流/通道 | 79mA | 输入失调电流（最大） | 0.00002@±5V |
| 输入失调电压（最大） | 0.4@±5V | 共模瞬态抗扰度（最小） | Extended Industrial |
| 电压输出差（典型值）@ 距离 | 100 | ||
机械参数
| 宽度 | 3 | 重量 | 0.299 |
| 带宽 | :16.3MHz | 包装方式 | Tube |
| 引脚样式 | Gull-wing | 安装类型 | Surface Mount |
| -3dB带宽 | 9.5MHz | 安装样式 | SMD/SMT |
| 引脚数 | :8 | 封装形式 | 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) |
| 材料表面处理 | :MSL 1 - Unlimited | 总长度 | 3 |
| 包装数量 | MSOP | 位数 | 8 |
| 外壳尺寸-插件 | 0.85 | 供应商器件封装 | 8-MSOP |
产品信息
| 类型 | General Purpose Amplifier | 系列 | ADA4610-2 |
| 关断 | No | 技术 | BiFET |
| 制造商全称 | Precision Amplifier | 放大器类型 | J-FET |
| 电路数 | 2 | 印刷电路板数量 | 8 |
环境参数
| 工作温度 | -40°C ~ 125°C | ||
文档与媒体
相关型号
EVAL-PRAOPAMP-1KSZ
analog devices
Universal Precision Op Amp Evaluation Board ADAPTOR BOARD SINGLE AMP SC70-5 EVAL-PRAOPAMP-1KSZ, Development Kit, Single 5 Lead SC70 (KS-5) Evaluation Board Amplifier IC Development Tools EVAL-PRAOPAMP-1KSZ Analog Devices Precision 模拟开发套件
EVAL-PRAOPAMP-1RZ
analog devices
Universal Precision Op Amp Evaluation Board ADAPTOR BOARD SINGLE AMP 8SOIC EVAL-PRAOPAMP-1RZ, Development Kit, Single 8-Lead SOIC (R-8) Evaluation Board Amplifier IC Development Tools EVAL-PRAOPAMP-1RZ Analog Devices 模拟开发套件
EVAL-PRAOPAMP-2RZ
analog devices
Universal Precision Op Amp Evaluation Board ADAPTOR BOARD DUAL AMP SOIC EVAL-PRAOPAMP-2RZ, Development Kit, Dual 8-Lead SOIC (R-8) Evaluation Board Amplifier IC Development Tools EVAL-PRAOPAMP-2RZ Analog Devices 模拟开发套件

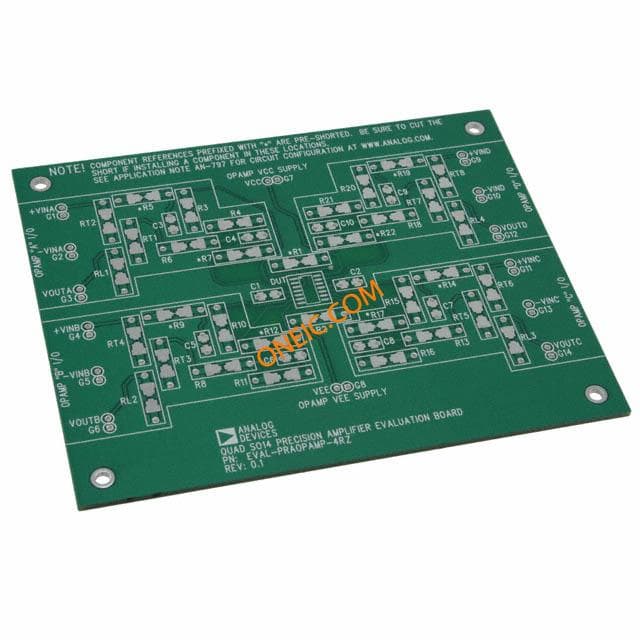

EVAL-PRAOPAMP-4RZ
