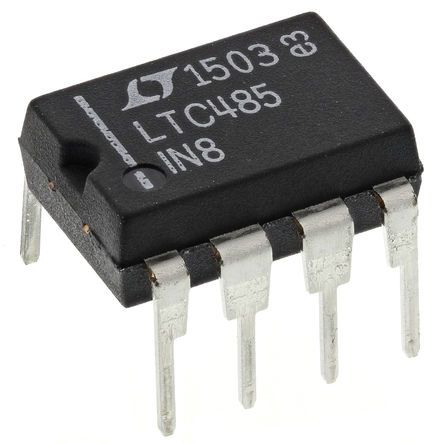

LTC485IN8#PBF
| 制造商 | Analog Devices, Inc. |
| 描述 | Single Transmitter/Receiver RS-422/RS-485 8-Pin PDIP N IC TXRX INTERFACE RS485 8-DIP LTC485IN8#PBF, Line Receiver, RS-485, RS-422, Differential 5V 8-Pin PDIP IC, TRANSCEIVER RS485, DIP8, 485 IC, RS-485 TRANSCEIVER, 5V, DIP-8 Line transmitter-receiver; RS485; 5VDC; DIP8 , RS-422，RS-485 线路接收器, 差分信号, 5 V电源, 8针 PDIP封装 |
| 分类 |
商业参数
| 其他名称 | LTC485IN8PBF | 标准包装数量 | 50 |
| 标准封装名称 | PDIP | ||
合规参数
| RoHS | Lead free / RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| 欧盟RoHS | Compliant | 海关税号 | 85423190 |
| 零件状态 | :485 | 抗辐射加固 | No |
| ESD保护 | No | ||
电气参数
| 数据速率 | 2.5Mbps(Max) | 接口 | RS-485 |
| 输入信号 | Differential | 信号类型 | Differential |
| 传输速率 | 1 | 输入功率 | Single |
| 数据速率（最大） | Multidrop|Multipoint | 输出电流 | 0.9 mA |
| 驱动电路 | :RS485 | 供电电压 | 4.75 V ~ 5.25 V |
| 供电类型 | Single | 接收器迟滞 | 70mV |
| 供电电压 (Vcc/Vdd) | :5V | 电源电压范围（典型） | Not Required V |
| 共模瞬态抗扰度（最小） | Industrial | ||
机械参数
| 重量 | 0.0062 | 包装方式 | Tube |
| 封装体颜色 | :DIP | 引脚样式 | Through Hole |
| 安装类型 | Through Hole | 引脚数 | :8 |
| 封装形式 | 8-DIP (0.300", 7.62mm) | 冷却的封装 | PDIP |
| 材料表面处理 | :- | 包装数量 | PDIP N |
| 位数 | 8 | 供应商器件封装 | 8-PDIP |
产品信息
| SPG | 50 | 类型 | Transceiver |
| 双工模式 | Half | 已删除 | Compliant |
| 功能 | Line Transceiver | 协议 | RS485 |
| 基本单元 | :485 | 单元数量 | 1 |
| 驱动器数量 | :1 | 接收器数量 | 1 |
| 发射器数量 | 1 | 驱动器/接收器数量 | 1/1 |
| 发射器/接收器数量 | 1 | ||
环境参数
| 工作温度 | -40°C ~ 85°C | ||
