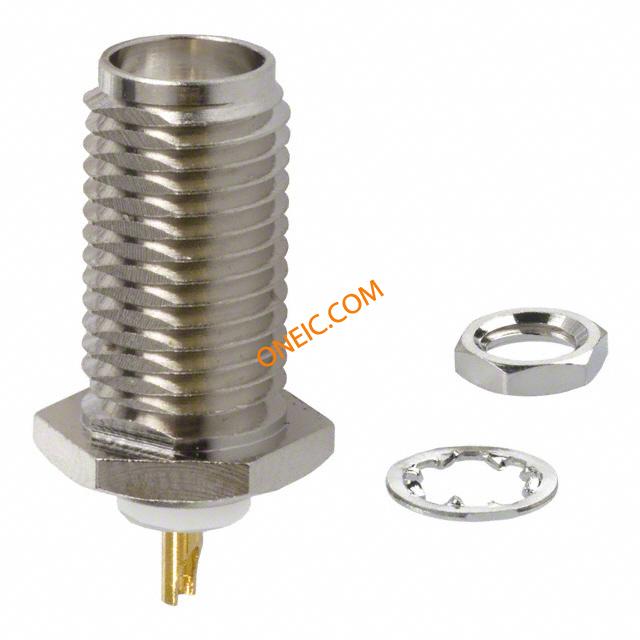

901-9890-RFX
| 制造商 | |
| 描述 | Conn SMA RCP 0Hz to 18GHz 50Ohm Solder Cup ST Panel Mount Gold CONN SMA JACK STR 50 OHM SOLDER connector;rf coaxial;sma blkhd recept;rear mount;solder cup terminal;nickel plt RF Connectors / Coaxial Connectors BLHD JCK S/CUP Ni REAR MNT RF/COAXIAL SMA BHD JACK STR 50 OHM SOLDER connector, rf coaxial, sma blkhd recept, rear mount, solder cup terminal, nickel plt |
| 分类 |
商业参数
| 产品 | Connectors | 零件号别名 | 01F2203 713-4337 901-9890-RFX |
| 产品类别 | RF Connectors / Coaxial Connectors | 标准包装数量 | Bulk |
合规参数
| RoHS | Lead free / RoHS Compliant | 欧盟RoHS | Compliant |
| 海关税号 | 85444920 | ||
电气参数
| 频率 | 0 to 18 GHz | 阻抗 | 50 Ohm |
| 耦合系数 | Threaded | 最大频率 | 18GHz |
| 绝缘电阻 | 5000 MOhms | ||
机械参数
| 长度 | 0.68 in. | 重量 | 0.005 |
| 包装方式 | Bulk | 电缆类型 | :- |
| 本体表面处理 | Nickel | 方向 | Straight |
| 端接方式 | Solder Cup | 重量（g） | 4.00000 |
| 基体材料 | Brass | 外壳颜色 | Silver |
| 安装类型 | Panel Mount | 行程角度 | Straight |
| 连接器类型 | Jack, Female Socket | 接触镀层 | Gold |
| 紧固类型 | Threaded | 外壳涂层 | Nickel |
| 壳体镀层 | Nickel | 连接器样式 | SMA, RFX |
| 连接器用途 | Threaded | 触头材料 | Beryllium Copper |
| 壳体材料 | Brass | 总长度 | 17.3 |
| 主要材料 | SMA | 端接样式 | Solder Cup |
| 屏蔽层端接方式 | Solder | 接触件端接 | Solder Cup |
| 介电材料 | Polytetrafluoroethylene (PTFE) | 绝缘材料 - 类型 | Tetrafluoroethylene Fluorocarbon |
| 中心触点镀层工艺 | Gold | 中心触点材料 | Beryllium Copper |
| 供应商器件封装 | Bulkhead | ||
产品信息
| 类型 | SMA | 连接器性别 | RCP |
| 系列 | :- | 极性 | Standard |
| 连接类型 | Coaxial Cable | 射频系列/标准 | SMA |
| 应用细节 | Commercial | ||
环境参数
| 插拔次数 | 100 | 工作温度 | -65°C ~ 165°C |
