点击放大查看

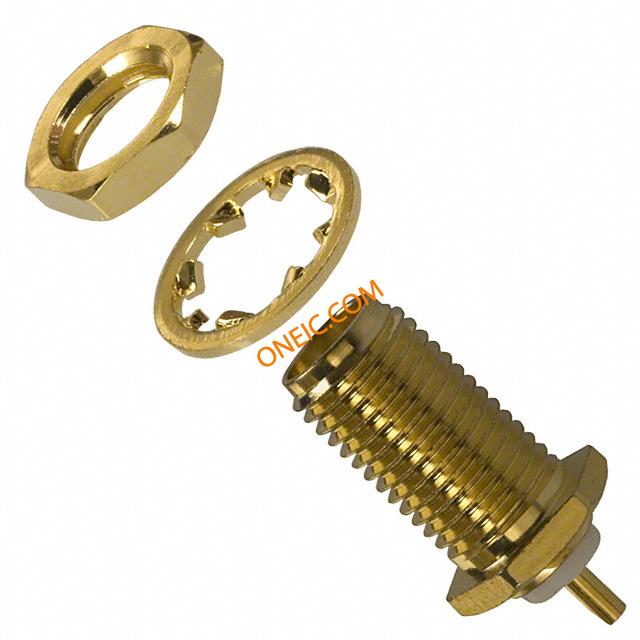

132139
| 制造商 | |
| 描述 | Conn SMA RCP 0Hz to 18GHz 50Ohm Solder Pot ST Panel Mount Gold CONN SMA JACK STR 50 OHM SOLDER connector;rf coaxial;sma blkhd jack recept;rear mount;solder pot term;50 ohm RF Connectors / Coaxial Connectors SMA BULKHEAD RECPT REAR MOUNT RF/COAXIAL SMA BHD JACK STR 50 OHM SOLDER connector, rf coaxial, sma blkhd jack recept, rear mount, solder pot term, 50 ohm |
| 分类 |
商业参数
| 产品 | Connectors | 其他名称 | ACX1237 |
| 零件号别名 | 319-0180 | 产品类别 | RF Connectors / Coaxial Connectors |
| 标准包装数量 | Bag | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 欧盟RoHS | Compliant |
| 海关税号 | 85366910 | ||
电气参数
| 频率 | 0 to 18 GHz | 阻抗 | 50 Ohm |
| 耦合系数 | Threaded | 最大频率 | 12.4GHz |
机械参数
| 长度 | 0.682 in. | 重量 | 0.081130 oz |
| 包装方式 | Bulk | 电缆类型 | :- |
| 本体表面处理 | Gold | 方向 | Straight |
| 端接方式 | Solder Pot | 基体材料 | Brass |
| 外壳颜色 | Gold | 安装类型 | Panel Mount |
| 行程角度 | Straight | 连接器类型 | Jack, Female Socket |
| 接触镀层 | Gold | 紧固类型 | Threaded |
| 外壳涂层 | Gold | 壳体镀层 | Gold |
| 连接器样式 | SMA | 连接器用途 | Threaded |
| 触头材料 | Beryllium Copper | 壳体材料 | Brass |
| 总长度 | 17.3 | 主要材料 | SMA |
| 端接样式 | Solder Cup | 屏蔽层端接方式 | Solder |
| 接触件端接 | Solder Cup | 介电材料 | Polytetrafluoroethylene (PTFE) |
| 绝缘材料 - 类型 | Polytetrafluoroethylene | 中心触点镀层工艺 | Gold |
| 中心触点材料 | Beryllium Copper | 供应商器件封装 | Bulkhead |
产品信息
| 类型 | SMA | 连接器性别 | RCP |
| 产品特性 | Extended Insulation | 极性 | Standard |
| 连接类型 | Coaxial Cable | 射频系列/标准 | SMA |
| 应用细节 | Commercial | ||
环境参数
| 插拔次数 | 500 | 工作温度 | -65°C ~ 165°C |
文档与媒体
相关型号

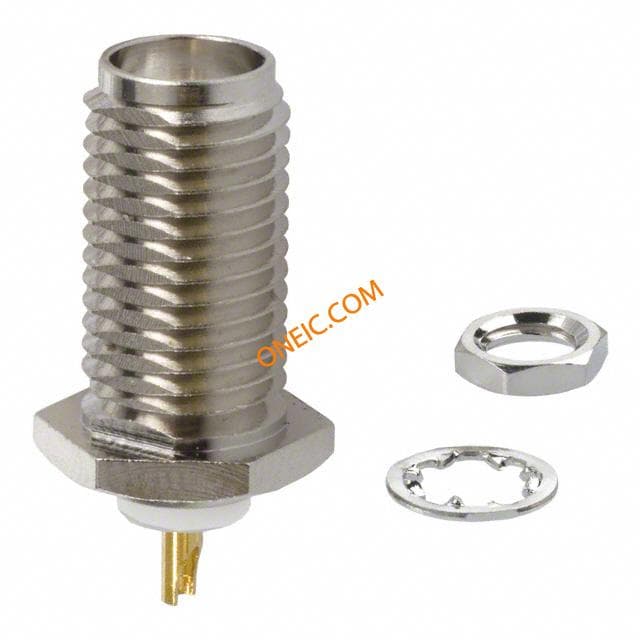

901-9890-RFX
amphenol
Conn SMA RCP 0Hz to 18GHz 50Ohm Solder Cup ST Panel Mount Gold CONN SMA JACK STR 50 OHM SOLDER connector;rf coaxial;sma blkhd recept;rear mount;solder cup terminal;nickel plt RF Connectors / Coaxial Connectors BLHD JCK S/CUP Ni REAR MNT RF/COAXIAL SMA BHD JACK STR 50 OHM SOLDER connector, rf coaxial, sma blkhd recept, rear mount, solder cup terminal, nickel plt
202112-10
amphenol connex
Connector Accessories SMA Male Cap Brass Gold Finish CONN SMA PLUG CAP W/CHAIN connector accessory;rf coaxial;sma plug cap with chain;for jacks and receptacles RF/COAXIAL CONNECTOR CAP, SMA, JACK, WITH CHAIN 202112-10 SMA Male Cap with Chain,Chain Length: 100mm, Amphenol
132364
amphenol connex
SMA PL CAP-EXT BODY FOR RP JK SMA CAP FOR FEMALE CONNECTOR RF Connector Accessories SMA MALE CAP FOR REV POLARITY JACK RF/COAXIAL CONNECTOR Coaxial/RF; Cap-NoChain; SMA; Protective; Male; Brass; forFemaleConn; Straight
202112
amphenol connex
Connector Accessories SMA Male Cap Brass Gold Finish CONN SMA PLUG CAP W/O CHAIN connector accessory;sma dust cap(plug);for unused/open jacks and receptacles RF Connector Accessories SMA MALE CAP CAP, SMA, JACK RF/COAXIAL CONNECTOR Coaxial/RF; Cap-NoChain; SMA; Protective; Male; Brass; forJacksandRecep; Straight CONN CAP (COVER) FOR SMA JACKS
132331
amphenol connex
Connector Accessories SMA Male Shorting Cap Brass Gold Finish CONN PLUG SMA SHORTING CAP connector accessory;rf coaxial;sma male shorting cap for jacks and receptacles RF Connectors / Coaxial Connectors SMA MALE SHORTING CAP RF/COAXIAL CONNECTOR Coaxial/RF; Cap-NoChain; SMA; Terminator; Male; Brass; forJacksandRecep; Straight
132-WASH-GLD
Amphenol RF
RF Connectors SMA ACC LOCKWASHER LOCK WASHER-SMA BLKHD JACK GOLD Screws & Fasteners SMA ACC LOCKWASHER

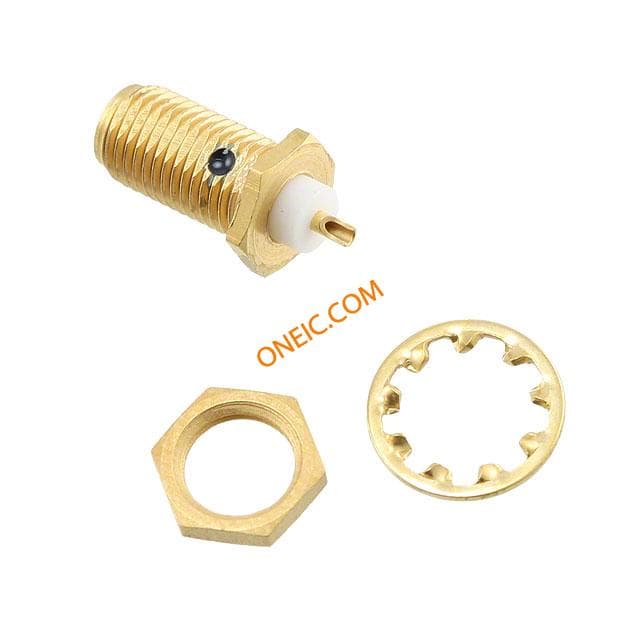

901-9211
