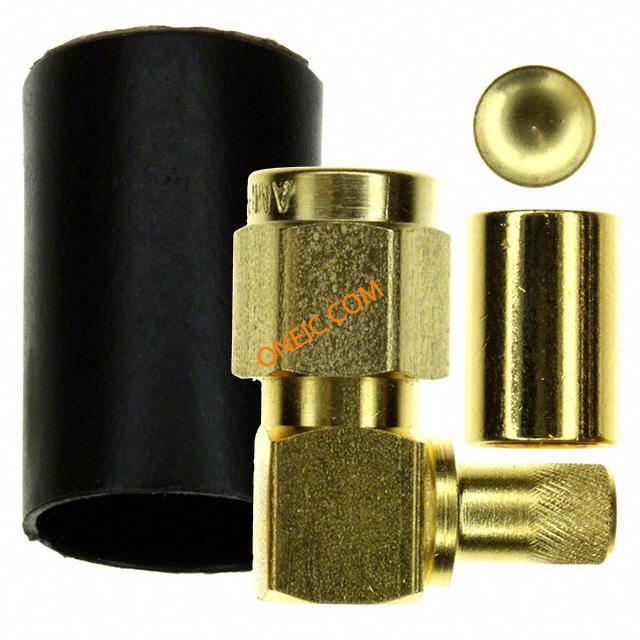

901-9531-1
| 制造商 | |
| 描述 | Conn SMA PL 0Hz to 18GHz 50Ohm Solder RA Cable Mount Gold Over Nickel CONN SMA PLUG R/A 50 OHM SOLDER connector;rf coaxial;sma rt angle plug;crimp/solder;rg55;142;223;400 cable;gold RF Connectors / Coaxial Connectors R/A PLG 142/400 GLD connector, rf coaxial, sma rt angle plug, crimp/solder, rg55, 142, 223, 400 cable, gold 901-9531-1 SMA Male Crimp Connector, Right Angle, Cable Group C1, (Industrial Grade), Amphenol |
| 分类 |
商业参数
| 产品 | Connectors | 零件号别名 | 50F2435 713-4216 901-9531-1 |
| 产品类别 | RF Connectors / Coaxial Connectors | 标准包装数量 | Bulk |
合规参数
| RoHS | Lead free / RoHS Compliant | 欧盟RoHS | Compliant |
| 标准 | Military Specification | 抗辐射加固 | No |
电气参数
| 频率 | 0 to 18 GHz | 阻抗 | 50 Ohm |
| 额定电压 | 500 V | 耦合系数 | Threaded |
| 最大频率 | 12.4GHz | 绝缘电阻 | 5000 MOhms |
机械参数
| 重量 | 2.398629 oz | 包装方式 | Bulk |
| 电缆类型 | RG-142, RG-400 | 本体表面处理 | Gold |
| 电缆组 | RG-55, 141, 142, 223, 400 | 方向 | Right Angle |
| 端接方式 | Solder | 重量（g） | 6.00000 |
| 基体材料 | Stainless Steel | 外壳颜色 | Gold |
| 安装类型 | Cable Mount | 行程角度 | Right Angle |
| 连接器类型 | Plug, Male Pin | 接触镀层 | Gold Over Nickel |
| 紧固类型 | Threaded | 外壳涂层 | Gold |
| 安装样式 | Cable | 壳体镀层 | Gold |
| 连接器样式 | SMA | 连接器用途 | Threaded |
| 触头材料 | Beryllium Copper | 壳体材料 | Stainless Steel |
| 总长度 | 17.3 mm | 主要材料 | SMA |
| 端接样式 | Cable - Crimp | 屏蔽层端接方式 | Crimp |
| 接触件端接 | Solder | 介电材料 | Polytetrafluoroethylene (PTFE) |
| 绝缘材料 - 类型 | Tetrafluoroethylene Fluorocarbon | 中心触点镀层工艺 | Gold |
| 中心触点材料 | Beryllium Copper | 供应商器件封装 | Right Angle |
产品信息
| 类型 | SMA | 连接器性别 | PL |
| 产品特性 | Heat Shrink Tubing | 极性 | Standard |
| 连接类型 | Coaxial Cable | 射频系列/标准 | SMA |
| 应用细节 | Commercial | ||
