| 制造商 | |

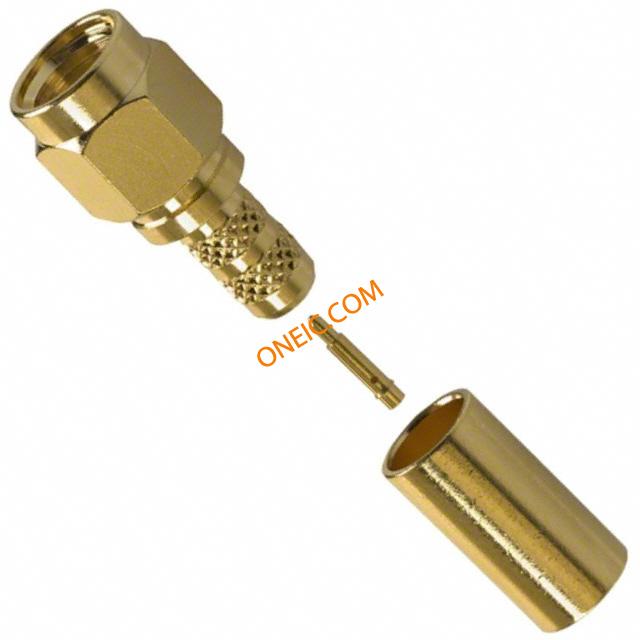

| 描述 | Conn SMA PL 0Hz to 12.4GHz 50Ohm Crimp ST Cable Mount Gold CONN SMA PLUG STR 50 OHM SOLDER connector;rf coaxial;sma str crimp plug;for rg142;223;400 cable;50 ohm RF Connectors / Coaxial Connectors SMA SR PLUG 142/55 GOLD connector, rf coaxial, sma str crimp plug, for rg142, 223, 400 cable, 50 ohm 132195 SMA Male Crimp Connector, Cable Group C1, Amphenol/Connex |
| 分类 |
商业参数
| 产品 | Connectors | 其他名称 | ACX1194 |
| 零件号别名 | 319-0154 99H5057 | 产品类别 | RF Connectors / Coaxial Connectors |
| 标准包装数量 | Bag | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 欧盟RoHS | Compliant |
电气参数
| 频率 | 0 to 12.4 GHz | 阻抗 | 50 Ohm |
| 额定电压 | 500 V | 耦合系数 | Threaded |
| 最大频率 | 12.4GHz | ||
机械参数
| 深度 | 8 | 长度 | 0.717 in. |
| 重量 | 0.123459 oz | 包装方式 | Bulk |
| 电缆类型 | RG-55, RG-142, RG-223, RG-400 | 本体表面处理 | Gold |
| 电缆组 | RG-55, 142, 223 | 方向 | Straight |
| 端接方式 | Crimp | 基体材料 | Brass |
| 外壳颜色 | Gold | 安装类型 | Cable Mount |
| 行程角度 | Straight | 连接器类型 | Plug, Male Pin |
| 接触镀层 | Gold | 紧固类型 | Threaded |
| 外壳涂层 | Gold | 壳体镀层 | Gold |
| 连接器样式 | SMA | 连接器用途 | Threaded |
| 触头材料 | Brass | 壳体材料 | Brass |
| 总长度 | 18.2 | 主要材料 | SMA |
| 端接样式 | Cable - Crimp | 屏蔽层端接方式 | Crimp |
| 接触件端接 | Solder | 介电材料 | Polytetrafluoroethylene (PTFE) |
| 绝缘材料 - 类型 | Polytetrafluoroethylene | 中心触点镀层工艺 | Gold |
| 中心触点材料 | Brass | 供应商器件封装 | Straight |
产品信息
| 类型 | SMA | 连接器性别 | PL |
| 极性 | Standard | 连接类型 | Flexible Cable |
| 射频系列/标准 | 132195 | 应用细节 | Commercial |
环境参数
| 插拔次数 | 500 | 工作温度 | -65°C ~ 165°C |
文档与媒体
相关型号

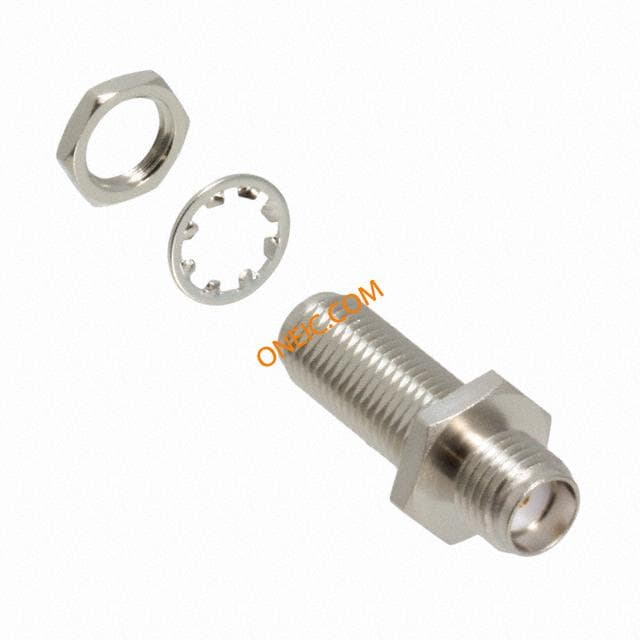

901-9986-RFX
amphenol
SMA BLKHD ADAPTER, J-J SMA BLKHD JACK TO JACK ADAPTER CONN COAXIAL RF Adapters - In Series SMA STRAIGHT BLKHD ADPT BULKHEAD ADAPTER, SMA JACK-SMA JACK

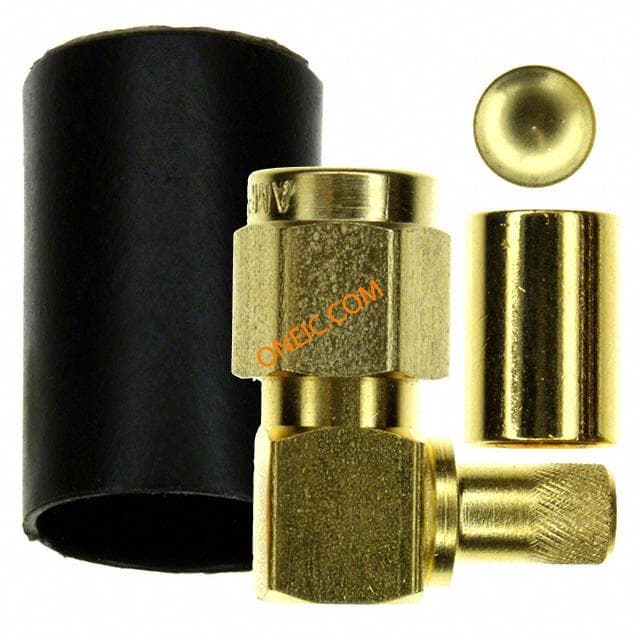

901-9531-1
amphenol
Conn SMA PL 0Hz to 18GHz 50Ohm Solder RA Cable Mount Gold Over Nickel CONN SMA PLUG R/A 50 OHM SOLDER connector;rf coaxial;sma rt angle plug;crimp/solder;rg55;142;223;400 cable;gold RF Connectors / Coaxial Connectors R/A PLG 142/400 GLD connector, rf coaxial, sma rt angle plug, crimp/solder, rg55, 142, 223, 400 cable, gold 901-9531-1 SMA Male Crimp Connector, Right Angle, Cable Group C1, (Industrial Grade), Amphenol

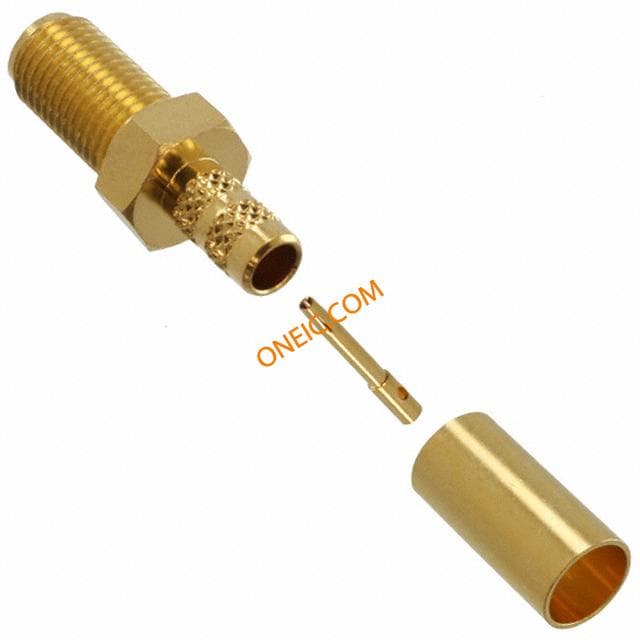

132197
amphenol connex
Conn SMA F 0Hz to 12.4GHz 50Ohm Crimp ST Cable Mount Gold CONN SMA JACK STR 50 OHM SOLDER RF Connectors / Coaxial Connectors SMA STRAIGHT CRIMP JACK RG-223, 142 CONNECTOR, SMA, JACK, 50OHM, CABLE SMA, SMA STRT CRMP JCK RG-223, 142

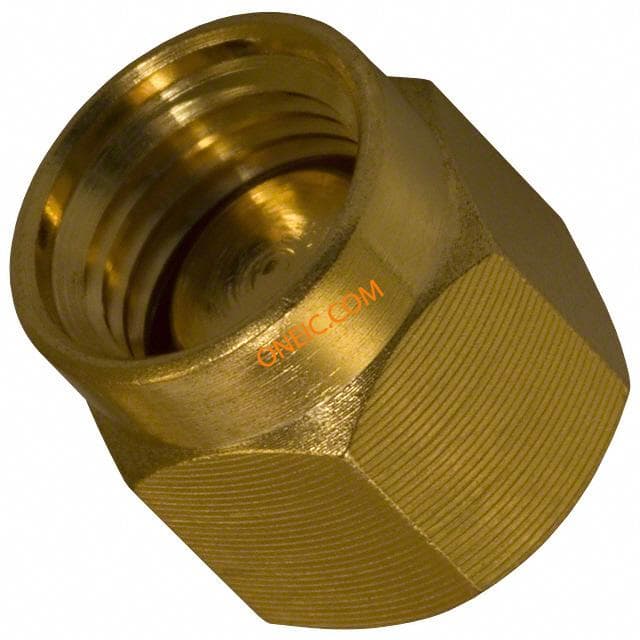

202112
