点击放大查看
31-70013
| 制造商 | Amphenol Corporation |
| 描述 | Conn BNC PL 0Hz to 4GHz 75Ohm Crimp ST Cable Mount Gold connector;rf coaxial;bnc str plug;crimp-crimp;for rg179;187 cable;75 ohm-t1 RF Connectors / Coaxial Connectors 75 OHM BNC T1 PLUG RF/COAXIAL, BNC PLUG, STR, 75 OHM, CRIMP BNC PLUG TRUE 75 OHM CRIMP BRAID & CENT COND FOR RG179 BELDEN 9221 |
| 分类 |
商业参数
| 产品 | Connectors | 零件号别名 | 031-70013 16R0624 713-8613 89F2863 |
| 产品类别 | RF Connectors / Coaxial Connectors | 标准包装数量 | Bulk |
合规参数
| RoHS | Compliant | 海关税号 | 85366910 |
电气参数
| 频率 | 0 to 4 GHz | 阻抗 | 75 Ohm |
| 耦合系数 | Bayonet | 最大频率 | 4 GHz |
机械参数
| 重量 | 0.306883 oz | 电缆类型 | RG-179, RG-187, Belden 9221 |
| 本体表面处理 | Nickel | 方向 | Straight |
| 端接方式 | Crimp | 重量（g） | 11.60000 |
| 基体材料 | Brass | 安装类型 | Cable Mount |
| 连接器类型 | :BNC Coaxial | 接触镀层 | Gold |
| 触头材料 | Brass | 端接样式 | Cable - Crimp |
| 接触件端接 | Crimp | 供应商器件封装 | Straight |
产品信息
| 类型 | BNC | 连接器性别 | PL |
| 系列 | :- | 极性 | Standard |
| 连接类型 | Coaxial Cable | 射频系列/标准 | 031-70013 |
环境参数
| 插拔次数 | 500 | 工作温度 | - 65 C to + 165 C |
文档与媒体
相关型号

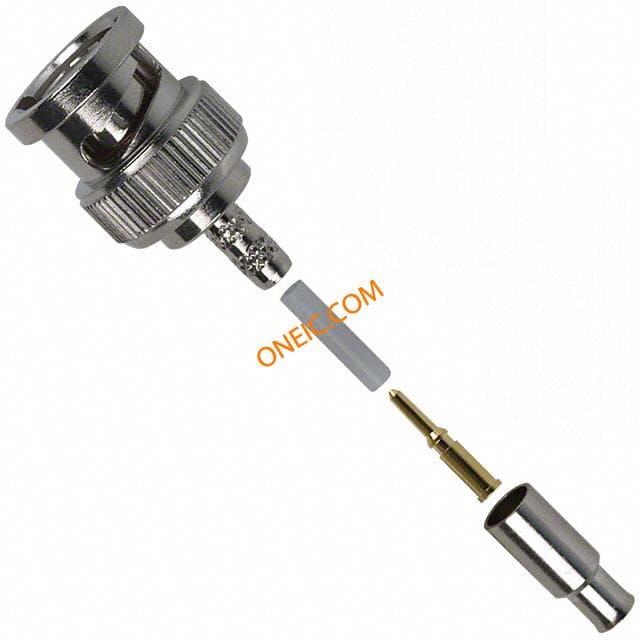

112133
amphenol connex
Conn BNC PL 0Hz to 1GHz 75Ohm Crimp ST Cable Mount Gold CONN BNC PLUG STR 75 OHM CRIMP connector;rf coaxial;bnc str crimp plug;captive cont;for rg179;187 cable;75 ohm RF Connectors / Coaxial Connectors BNC ST CRIMP PLUG RG179 75 OHM BR RF/COAXIAL, BNC, STRAIGHT, 75 OHM, CRIMP connector, rf coaxial, bnc str crimp plug, captive cont, for rg179, 187 cable, 75 ohm

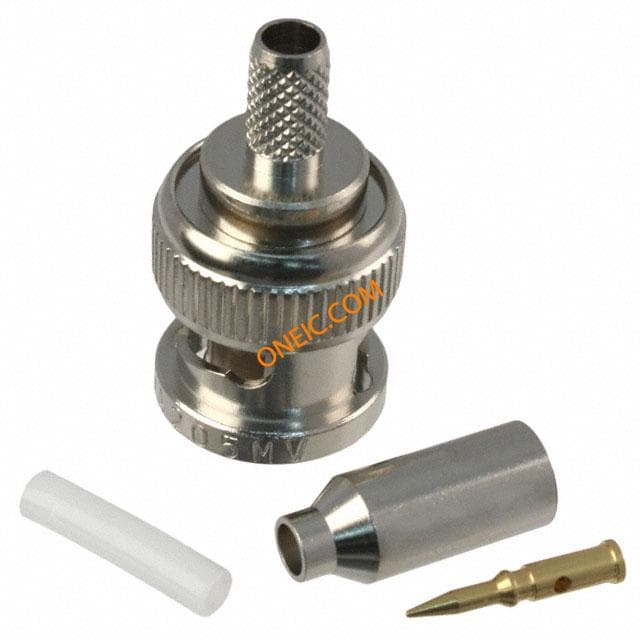

310A205MV
Bomar Interconnect
RF Connectors 50 OHM RG174/179 CONN BNC PLUG STR 50 OHM CRIMP RF Connectors / Coaxial Connectors 50 OHM RG174/179 Conn BNC M 0Hz to 4GHz 50Ohm Crimp ST Cable Mount Gold Conn;RF;BNC;Straight;CablePlug;Crimp;50Ohms;RG/U174,178,196,MiniRGB;3-Pc BNC CBLE CRMP RG174 REINFORCED
112135
amphenol connex
Conn BNC PL 0Hz to 1GHz 75Ohm Crimp ST Cable Mount Gold CONN BNC PLUG STR 75 OHM CRIMP RF Connectors / Coaxial Connectors BNC ST CRIMP PLUG RG179 75 OHM DC RF/COAXIAL, BNC PLUG, STR, 75 OHM, CRIMP BNC, BNC STR.CRP.PLG.RG179-75~-DC
SPC11210
Avnet, Inc.
310A205MV
Winchester Electronics
CONN BNC PLUG STR 50 OHM CRIMP
