点击放大查看
112133
| 制造商 | Amphenol Corporation |
| 描述 | Conn BNC PL 0Hz to 1GHz 75Ohm Crimp ST Cable Mount Gold CONN BNC PLUG STR 75 OHM CRIMP connector;rf coaxial;bnc str crimp plug;captive cont;for rg179;187 cable;75 ohm RF Connectors / Coaxial Connectors BNC ST CRIMP PLUG RG179 75 OHM BR RF/COAXIAL, BNC, STRAIGHT, 75 OHM, CRIMP connector, rf coaxial, bnc str crimp plug, captive cont, for rg179, 187 cable, 75 ohm |
| 分类 |
商业参数
| 产品 | Connectors | 其他名称 | ACX1009 |
| 零件号别名 | 319-0008 37K6613 | 产品类别 | RF Connectors / Coaxial Connectors |
| 标准包装数量 | Bag | 工厂包装数量 | 100 |
合规参数
| RoHS | Lead free / RoHS Compliant | 欧盟RoHS | Compliant |
| 海关税号 | 85366910 | 抗辐射加固 | No |
电气参数
| 频率 | 0 to 1 GHz | 阻抗 | 75 Ohm |
| 额定电压 | 500V | 耦合系数 | Bayonet |
| 最大频率 | 4GHz | ||
机械参数
| 深度 | Not Required mm | 高度 | Not Required mm |
| 重量 | 0.325226 oz | 直径 | 14.5 mm |
| 包装方式 | Bulk | 电缆类型 | RG-179, RG-187, Belden 9221 |
| 本体表面处理 | Nickel | 电缆组 | RG-179, 187 |
| 方向 | Straight | 端接方式 | Crimp |
| 基体材料 | Brass | 外壳颜色 | Silver |
| 安装类型 | Cable Mount | 行程角度 | Straight |
| 连接器类型 | Plug, Male Pin | 接触镀层 | Gold |
| 紧固类型 | Bayonet Lock | 外壳涂层 | Nickel |
| 安装样式 | Cable | 壳体镀层 | Nickel |
| 连接器样式 | BNC | 连接器用途 | Bayonet |
| 触头材料 | Brass | 壳体材料 | Brass |
| 总长度 | 30.2 mm | 主要材料 | BNC |
| 端接样式 | Cable - Crimp | 屏蔽层端接方式 | Crimp |
| 接触件端接 | Crimp | 介电材料 | Polyoxymethylene (POM) Acetal |
| 绝缘材料 - 类型 | Delrin | 中心触点镀层工艺 | Gold |
| 中心触点材料 | Brass | 供应商器件封装 | Straight |
产品信息
| 类型 | BNC | 连接器性别 | PL |
| 产品特性 | Captivated Contact | 极性 | Standard |
| 连接类型 | Coaxial Cable | 射频系列/标准 | 112133 |
| 应用细节 | Commercial | ||
环境参数
| 插拔次数 | 500 | 工作温度 | - 40 C to + 155 C |
文档与媒体
相关型号
31-70013
amphenol
Conn BNC PL 0Hz to 4GHz 75Ohm Crimp ST Cable Mount Gold connector;rf coaxial;bnc str plug;crimp-crimp;for rg179;187 cable;75 ohm-t1 RF Connectors / Coaxial Connectors 75 OHM BNC T1 PLUG RF/COAXIAL, BNC PLUG, STR, 75 OHM, CRIMP BNC PLUG TRUE 75 OHM CRIMP BRAID & CENT COND FOR RG179 BELDEN 9221
112713
amphenol connex
Connector Accessories BNC Female Cap With Chain Brass Nickel Finish CONN BNC FEMALE CAP W/CHAIN connector accessory;rf coaxial;bnc female cap and 100mm chain;for plugs RF Connector Accessories BNC JACK CAP AND CHAIN CAP, BNC COAXIAL CONNECTOR
47-10150
Amphenol Connex
Crimpers CRIMP TOOL W/DIE .178/.128/.068 TOOL CRIMP W/DIES .178/.128/.068 tool;ratcheted hand crimp tool w/die set;cavities: .178;.128;.068 (see notes) Crimp Tool With Die CRIMP TOOL W/DIE SET, RATCHET,COAXIAL CABLE tool, ratcheted hand crimp tool w/die set, cavities: .178, .128, .068 (see notes)
47-20004
amphenol connex
Crimp Die Set Punches & Dies CRIMP DIE .178/ .128/.068 TOOL DIE SET .178/.128/.068 DIE FOR RG174, MINI 59 BNC/TNC

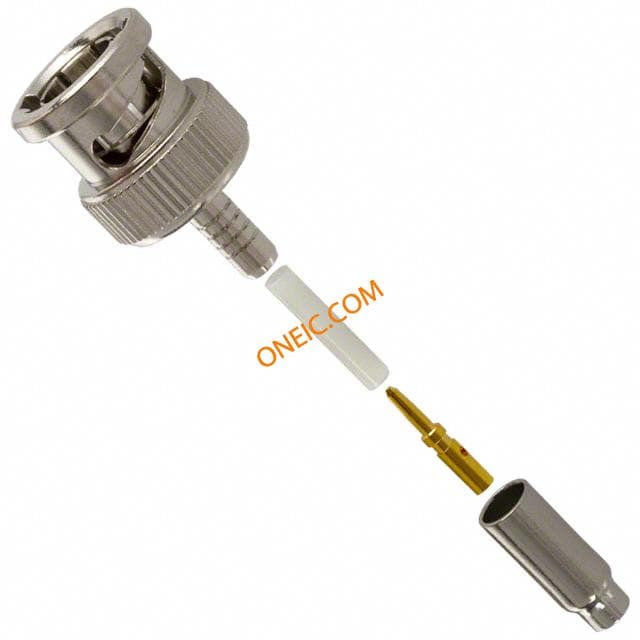

31-71013
