点击放大查看
31-2367-RFX
| 制造商 | |
| 描述 | Conn TNC PL 0Hz to 11GHz 50Ohm Crimp ST Cable Mount Gold connector;rf coaxial;tnc commercial str plug;crimp-crimp;for rg58;141;50 ohm RF Connectors / Coaxial Connectors SRT PLUG RG58/LMR195 31-2367-RFX TNC Male Crimp Connector, Cable Group C, (Commercial Grade) Amphenol |
| 分类 |
商业参数
| 产品 | Connectors | 零件号别名 | 031-2367-RFX 16R0572 713-9022 93F1427 |
| 产品类别 | RF Connectors / Coaxial Connectors | 标准包装数量 | Bulk |
合规参数
| RoHS | Compliant | ||
电气参数
| 频率 | 0 to 11 GHz | 阻抗 | 50 Ohm |
| 耦合系数 | Threaded | 最大频率 | 11 GHz |
机械参数
| 电缆类型 | RG-58, RG-141, RG-58C | 本体表面处理 | Nickel |
| 方向 | Straight | 端接方式 | Crimp |
| 重量（g） | 13.60000 | 基体材料 | Brass |
| 安装类型 | Cable Mount | 接触镀层 | Gold |
| 触头材料 | Brass | 端接样式 | Cable - Crimp |
| 接触件端接 | Crimp | 供应商器件封装 | Straight |
产品信息
| 类型 | TNC | 连接器性别 | PL |
| 极性 | Standard | 连接类型 | Coaxial Cable |
| 射频系列/标准 | TNC | ||
环境参数
| 插拔次数 | 500 | 工作温度 | - 65 C to + 165 C |
文档与媒体
相关型号
7807A 0101000
Belden Wire & Cable
Coaxial Cables 17AWG 1C SHIELD 1000ft SPOOL BLACK BLACK RG58 (RF200) TYPE-17AWG-SOLID .044 IN. BARE COPPER-DUOFOIL+95%-TIN COPPR B Coax - RG-58 Type RF200 Wireless 50 OHM Coax PE Black
7807R 010500
Belden Wire & Cable
Coaxial Cables 17AWG 1C SHIELD 500ft SPOOL BLACK RG-58, 17 AWG SOLID .044 IN. BARE COPPER, DUOFOIL, GAS INJECTED FOAM HDPE, BLACK
7807A 010500
Belden Wire & Cable
Coaxial Cables 17AWG 1C SHIELD 500ft SPOOL BLACK COAXIAL CABLE, RG-58, 500FT, BLACK BLACK RG58 (RF200) TYPE-17AWG-SOLID .044 IN. BARE COPPER-DUOFOIL+95%-TIN COPPR B
31-5678
amphenol
Conn TNC F 0Hz to 4GHz 50Ohm Crimp ST Cable Mount Gold RF Connectors / Coaxial Connectors STRT JCK 58/LMR195 B7806A

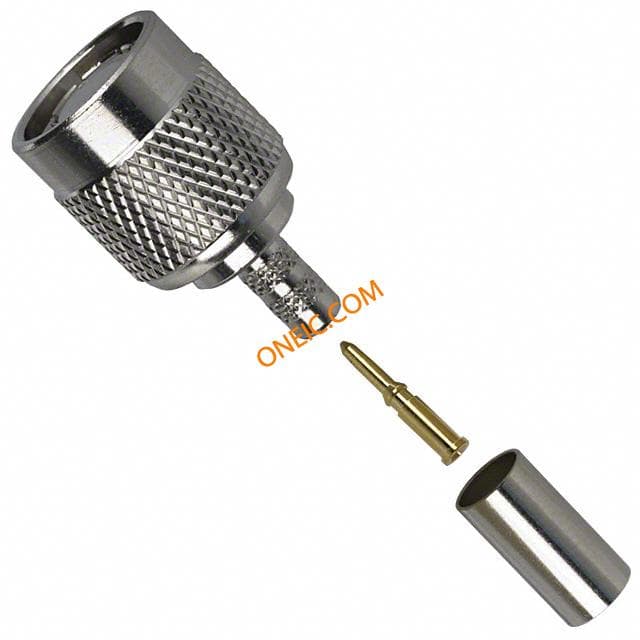

122372
