| 制造商 | |

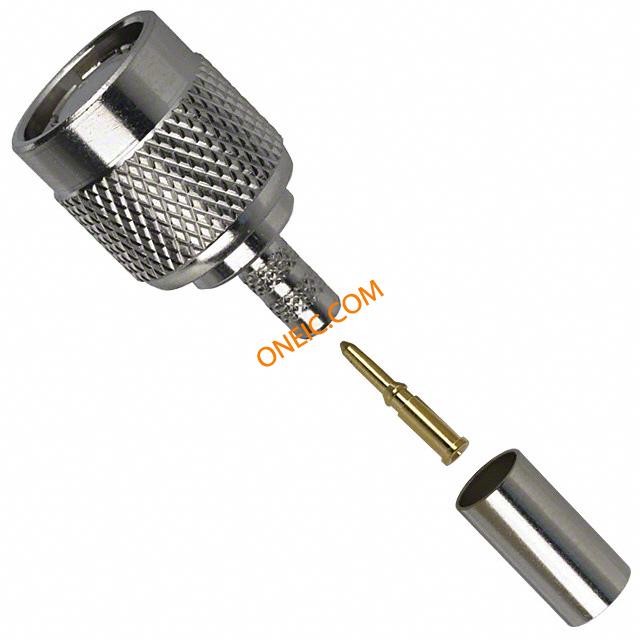

| 描述 | RF Connectors TNC STRAIGHT PLUG STANDARD CABLE Conn TNC PL 50Ohm Crimp ST Cable Mount Gold CONN TNC PLUG STR 50 OHM CRIMP connector;rf coaxial;tnc straight crimp plug;for rg142;223;400 cable;50 ohm RF Connectors / Coaxial Connectors TNC STRAIGHT PLUG STANDARD CABLE RF/COAXIAL, TNC PLUG, STR, 50 OHM, CRIMP connector, rf coaxial, tnc straight crimpplug, for rg142, 223, 400 cable, 50 ohm 122372 TNC Male Crimp Connector, Cable Group C1, Amphenol |
| 分类 |
商业参数
| 产品 | Connectors | 其他名称 | ACX1072 |
| 零件号别名 | 319-0065 99H4845 | 产品类别 | RF Connectors / Coaxial Connectors |
| 标准包装数量 | 1 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 欧盟RoHS | Compliant |
| 海关税号 | 85366910 | 抗辐射加固 | No |
电气参数
| 阻抗 | 50 Ohm | 额定电压 | 500V |
| 耦合系数 | Threaded | 最大频率 | 11GHz |
机械参数
| 深度 | Not Required mm | 高度 | Not Required mm |
| 重量 | 0.419760 oz | 直径 | 14.5 mm |
| 包装方式 | Bulk | 电缆类型 | RG-55, RG-142, RG-223, RG-400 |
| 本体表面处理 | Nickel | 电缆组 | RG-55, 142, 223 |
| 方向 | Straight | 端接方式 | Crimp |
| 基体材料 | Brass | 外壳颜色 | Silver |
| 安装类型 | Cable Mount | 行程角度 | Straight |
| 连接器类型 | Plug, Male Pin | 接触镀层 | Gold |
| 紧固类型 | Threaded | 外壳涂层 | Nickel |
| 安装样式 | Cable | 壳体镀层 | Nickel |
| 连接器样式 | TNC | 连接器用途 | Threaded |
| 触头材料 | Brass | 壳体材料 | Brass |
| 总长度 | 25 mm | 主要材料 | TNC |
| 端接样式 | Cable - Crimp | 屏蔽层端接方式 | Crimp |
| 接触件端接 | Crimp | 介电材料 | Polyoxymethylene (POM) Acetal |
| 绝缘材料 - 类型 | Delrin | 中心触点镀层工艺 | Gold |
| 中心触点材料 | Brass | 供应商器件封装 | Straight |
产品信息
| 类型 | TNC | 连接器性别 | PL |
| 产品特性 | Captivated Contact | 极性 | Standard |
| 制造商全称 | TNC Series | 连接类型 | Coaxial Cable |
| 射频系列/标准 | TNC | 应用细节 | Commercial |
环境参数
| 插拔次数 | 500 | 防护等级 | Weatherproof |
| 工作温度 | - 40 C to + 155 C | ||
文档与媒体
相关型号
31-2367-RFX
amphenol
Conn TNC PL 0Hz to 11GHz 50Ohm Crimp ST Cable Mount Gold connector;rf coaxial;tnc commercial str plug;crimp-crimp;for rg58;141;50 ohm RF Connectors / Coaxial Connectors SRT PLUG RG58/LMR195 31-2367-RFX TNC Male Crimp Connector, Cable Group C, (Commercial Grade) Amphenol
122486
amphenol connex

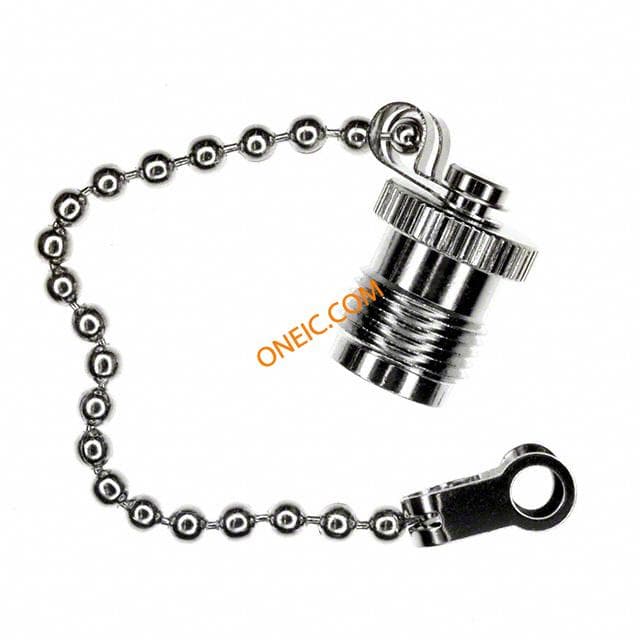

TNC JACK CAP AND CHAIN CONN CAP TNC FEMALE W/CHAIN connector accessory;rf coaxial;tnc female cap and 100 mm chain RF Connector Accessories TNC JACK CAP & CHAIN Coaxial/RF; Cap-w/Chain; TNC; Protective; Female; Brass; forMaleConnector; Straight
