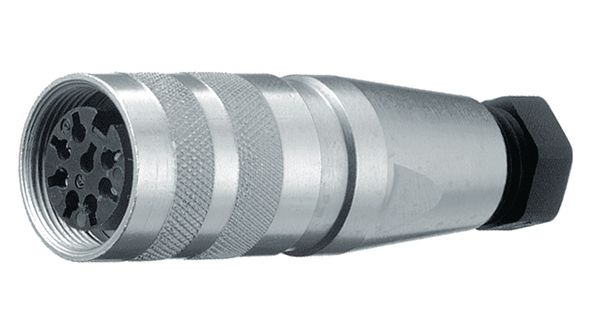

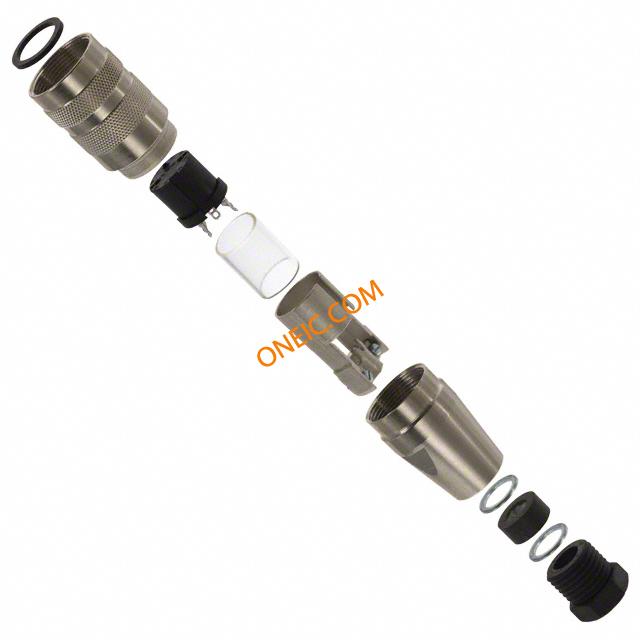

C091 31D005 100 2
| 制造商 | |
| 描述 | Circular DIN Connectors 5P DIN CABLE RECPT. Conn Circular F 5 POS Solder ST Cable Mount 5 Terminal 1 Port CONN PLUG 5POS CABLE SKT CIRCULAR CONNECTOR RECEPTACLE 5POS CABLE CONN PLUG 5POS INLINE SKT connector, circular din, str female cableconn, 5din silver-pltd solder cont, ip67 Connector: circular; Series: C091D; female; plug; silver plated Cable box, 5-pin Poles=5, C091 31D005 100 2, Amphenol |
| 分类 |
商业参数
| 零件号别名 | 100 2 31D005 34B7562 C091 U | 产品类别 | Circular DIN Connectors |
| 标准包装数量 | 50 | 工厂包装数量 | 50 |
合规参数
| RoHS | Lead free / RoHS Compliant | 欧盟RoHS | Compliant |
| 标准 | UL E63093 | 海关税号 | 85366910 |
| 认证机构标志 | UL Recognized | 材料阻燃等级 | UL94-V0 |
电气参数
| 额定电压 | 300V | 供电电压 | DIN |
| 最大额定电流 | 5A | ||
机械参数
| 重量 | 0.041 | 直径 | 18 |
| 包装方式 | Bulk | 出线方向 | Yes |
| 导线线规 | 20-26 | 方向 | Keyed |
| 外壳样式 | Plug | 端接方式 | Solder |
| 重量（g） | 13.60000 | 触头类型 | 5Signal |
| 基体材料 | metal | 安装类型 | Cable Mount |
| 外壳镀层 | Nickel | 行程角度 | Straight |
| 电缆直径 | 4 mm to 6 mm | 连接器类型 | Plug, Female Sockets |
| 接触镀层 | Silver | 紧固类型 | Threaded |
| 外壳涂层 | Nickel | 安装样式 | Wire |
| 封装形式 | Metal | 壳体镀层 | nickel |
| 连接器用途 | Threaded | 插入角度 | :- |
| 锁定特性 | threaded joint, internal thread | 本体材料 | :Brass |
| 壳体材料 | Die Cast | 总长度 | 58 |
| 包装数量 | 50 | 主要材料 | DIN |
| 尺寸/外形 | see | 连接器 - 电缆 | plug |
| 端接样式 | Solder | 第一触头极性 | F |
| 触点数 | 5 | 介电材料 | Thermoplastic |
| 位数 | 5 | 外壳尺寸-插件 | DIN (240 Degree) |
| 外壳材料及表面处理 | Die Cast, Nickel Plated | 线规或范围 - mm² | 0.5mm2 |
| 触点材料 - 镀层 | silver plated | 第一连接器安装类型 | :Cable |
| 第一连接器安装特征 | DIN EN 60130-9 | ||
产品信息
| SPG | 50 | 类型 | Circular |
| 连接器性别 | :Receptacle | 系列 | :C 091 D |
| 产品特性 | Shielded, Strain Relief | 制造商全称 | C091-D Series |
| 产品子类型 | Connectors | 适配器系列 | C091D |
| 单元数量 | 1 | 射频系列/标准 | C091D |
环境参数
| 密封等级 | IP 67 | 防护等级 | IP65/67 - Dust Tight, Water Resistant, Waterproof |
| 工作温度 | -40°C ~ 100°C | ||
文档与媒体
相关型号
C091 31C005 100 2
amphenol
Conn Circular M 5 POS Solder ST Panel Mount 5 Terminal 1 Port 05P 091D CIRCULAR CONNECTOR CONN MALE RCPT 5POS REAR MT C091D Rear Panel Mount 5 way pin Solder Circular DIN Connectors Plug 5 Pin Rear MT solder
C091 31W005 100 2
Amphenol Tuchel
Circular DIN Connectors 5P DIN PANEL MALE Conn Circular M 5 POS Solder ST Panel Mount 5 Terminal 1 Port CONN MALE RCPT 5POS FRONT MT connector, circ din, male panel recept, front mt, 5 din silver pltd pin cont, ip67 Connector: circular; Series: C091D; male; socket; silver plated Appliance plug, C091D 5-pin Poles=5, C091 31W005 100 2, Amphenol

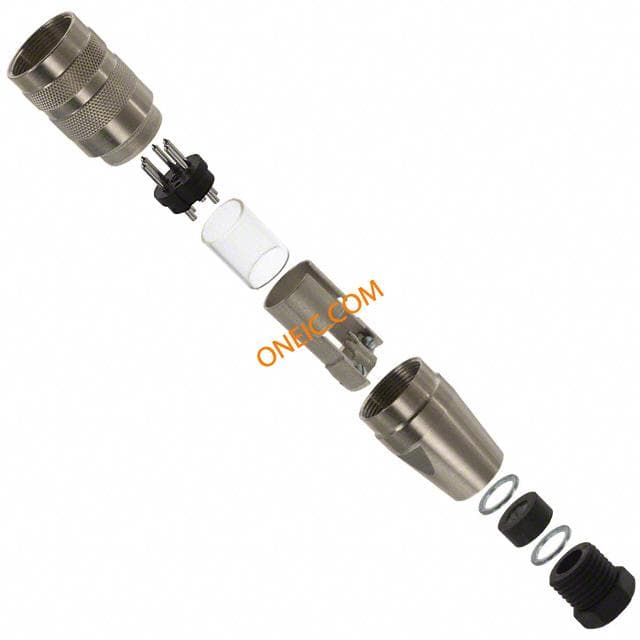

C091 31H005 100 2
