点击放大查看

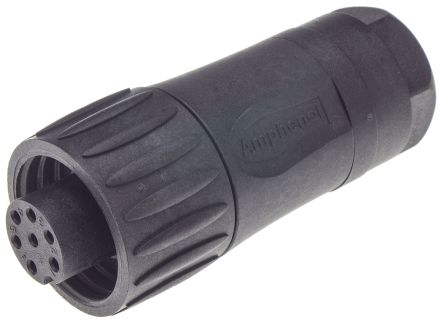

C016 10D006 010 12
| 制造商 | |
| 描述 | Circular DIN Connectors 6+PE FEM STRT BLK CRIMP INT STR REL Conn Circular F 7 POS Crimp ST Cable Mount 7 Terminal 1 Port CONN PLUG 7POS CABLE SKT CRIMP 7 Pole Male Straight Cable Mount Industrial & Automation Circular Connector with Female Contacts connector, plastic circ, str fem cable housing, for 6+gnd crimp socket cont, black Cable socket 6+PE, C016 10D006 010 12, Amphenol Amphenol Eco-Mate 系列 6 + PE路 电缆安装 直向 连接器 插座 |
| 分类 |
商业参数
| 其他名称 | C01610D00601012 | 零件号别名 | 81K1432 |
| 产品类别 | Circular DIN Connectors | 标准包装数量 | 250 |
| 工厂包装数量 | 50 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 欧盟RoHS | Supplier Unconfirmed |
| 认证机构标志 | UL Recognized/CSA/VDE | 材料阻燃等级 | UL94-V0 |
电气参数
| 额定电压 | 250 V | 极数 | 6+PE |
| 连接器阻抗 | 标准 | 最大额定电流 | 13 A |
| 额定电流 - 设备输入口 | 10 | 保护电压（VP）（2416） | IP 67 |
机械参数
| 颜色 | Black | 直径 | 30 |
| 包装方式 | Bulk | 出线方向 | Yes |
| 导线线规 | 26-16 | 方向 | Keyed |
| 外壳样式 | Plug | 端接方式 | Crimp |
| 重量（g） | 37.20000 | 触点形式 | Crimp |
| 触点尺寸 | 1.6mm | 触头类型 | 6Signal/1Ground |
| 安装类型 | Cable Mount | 外壳镀层 | Polyamide |
| 行程角度 | Straight | 电缆直径 | 6 mm to 12.5 mm |
| 电缆端类型 | 6...12.5 mm | 连接器类型 | Plug for Female Contacts |
| 接触镀层 | Silver/Gold | 紧固类型 | Threaded |
| 封装形式 | Plastic | 连接器样式 | straight |
| 连接器用途 | Threaded | 锁定特性 | Screw locking |
| 触头材料 | silver-plated | 壳体材料 | Polyamide |
| 总长度 | 73 | 主要材料 | DIN |
| 端接排数 | 压接 | 端接样式 | Crimp |
| 第一触头极性 | F | 连接器颜色 | black |
| 触点数 | 7 | 介电材料 | Polyamide |
| 位数 | 7 | 第一连接器极性 | Female |
| 外壳材料及表面处理 | Polyamide | 典型触点布局 | 6 + 1 Ground (PE) |
| 静电放电屏蔽 | 是 | ||
产品信息
| 备注 | Contacts Not Provided | 类型 | Circular |
| 连接器性别 | PL | 系列 | Eco|mate™ C016 |
| 产品特性 | Cable Clamp, Strain Relief | 主要用途 | Cable Clamp, Strain Relief |
| 制造商全称 | C016 Series | 产品子类型 | Connectors |
| 连接方式 | 1.5 | 输出配置 | Free Hanging (In-Line) |
| 应用细节 | Commercial | ||
环境参数
| 密封等级 | IP 67 | 防护等级 | IP65/67 - Dust Tight, Water Resistant, Waterproof |
| 工作温度 | +125°C | ||
文档与媒体
相关型号
TA 0500
amphenol
Crimping Tools For Stamped Contacts Hand Tools Hand crimp for single contacts TOOL CRIMP SHORT HANDLE crimp tool C16-3& ECOmate less dies/loc CRIMP TOOL, TA, 2.5MMSQ. tool, hand crimp, less crimp die set and contact locators, for eco/mate, c16-3 cont Crimping pliers without dies, TA 0500, Amphenol Amphenol 压接工具
TA 0001 146 0001
Amphenol Tuchel
Crimpers CRIMP LOCATOR 26-20 AWG TOOL LOCATOR FOR VN02 016 0003 1 CONTACT LOCATOR tool component, contact locator for 26-20awg contacts, goes with ta-0000-202 die
TA 0002 146 0001
Amphenol Tuchel
Crimpers CRIMP LOCATOR 20-16 AWG TOOL LOCATOR FOR VN02 016 0002 1 Locator for 20-16awg contacts(TA-0000) LOCATOR, TA, 16-20AWG tool component, contact locator for 20-16awg contacts, goes w/ta-0000-163 die set Amphenol TA 系列 压接工具 定位器

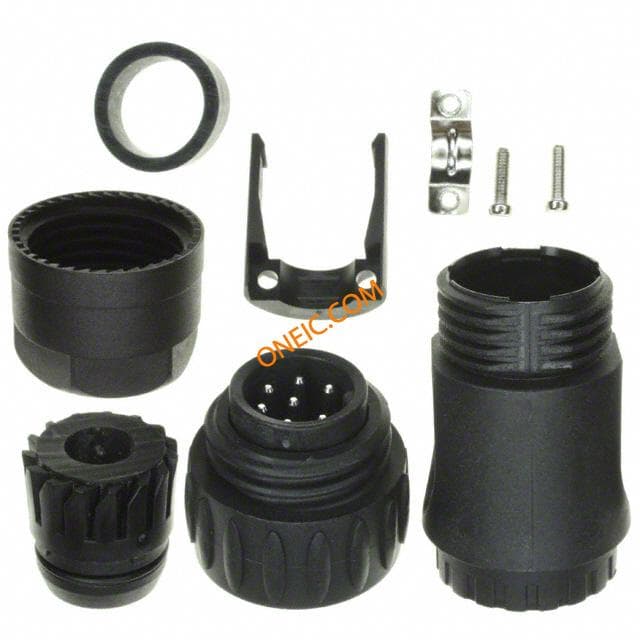

C016 30H006 110 12
Amphenol Tuchel
Circular DIN Connectors 6+PE MALE STRT BLK SODR SIL IN ST RELF CONN MALE PLUG 6+PE SILVER BLACK 7 Pole Male Straight Cable Mount Industrial & Automation Circular Connector with Male Contacts PLUG, FREE, ECOMATE, 6+PE CIRCULAR CONNECTOR, PLUG, 6+PE, CABLE connector, plastic circ, str male cable conn, 6+gnd silver plt cont, solder term, blk Connector: circular; plug; male; Series: ECOMATE (C016); PIN:7 Cable plug 6+PE, C016 30H006 110 12, Amphenol Amphenol Eco-Mate 系列 6 + PE路 电缆安装 直向 连接器 插头
C016 10C006 000 12
Amphenol Tuchel
Circular DIN Connectors 6+PE MALE RECEPT BLACK CRIMP Conn Circular M 7 POS Crimp ST Panel Mount 7 Terminal 1 Port CONN MALE RCPT 6+PE BLACK PLUG, PANEL, CRIMP, 6P+E WAY connector, plastic circ, male panel recept housing, for 6+gnd crimp pin cont, black Connector: circular; socket; w/o terminals; male; PIN:7; IP65,IP67 Appliance plug 6+PE, C016 10C006 000 12, Amphenol

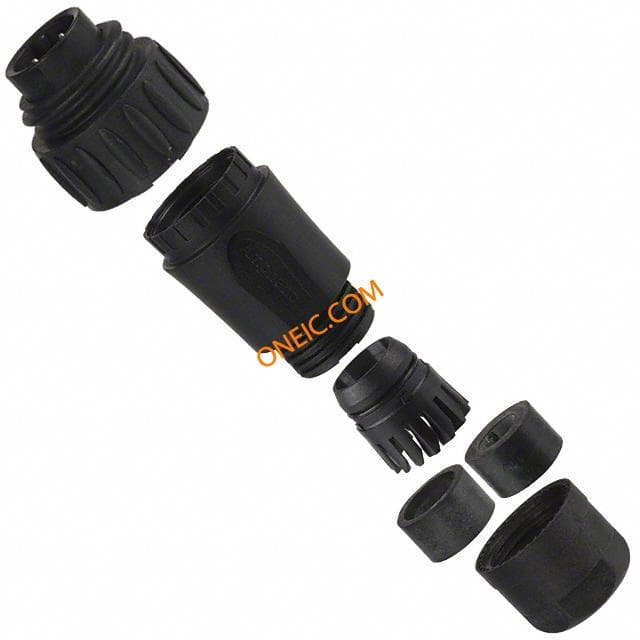

C016 30H006 100 12
Amphenol Tuchel
Circular DIN Connectors 6+PE MALE STRT BLK SOLDER SILVR CONTACT CONN MALE PLUG 6+PE SOLDR SILVR 7 Pole Male Straight Cable Mount Industrial & Automation Circular Connector with Male Contacts CIRCULAR CONNECTOR, PLUG, 6+PE, CABLE connector, plastic circ, str male cable conn, 6+gnd silver plt cont, solder term, blk Amphenol Eco-Mate 系列 6 + PE路 电缆安装 直向 连接器 插头

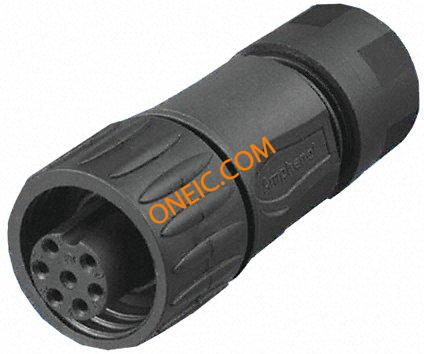

C016 10D006 010 12
