RJFTV6MG
| 制造商 | |
| 描述 | Conn RJ-45 PL 8 POS ST Cable Mount 8 Terminal 1 Port Cat 5e CONN MOD HOUSING RJ45 UNSHIELDED Modular Connectors / Ethernet Connectors RJF TV PLUG OLIVE METAL GLAND PLUG, RJ45, RJF TV, METAL GLAND connector, metal circular, str plug w/metal gland, rj45 ethernet, olive drab finish |
| 分类 |
商业参数
| 零件号别名 | 308-0050 95C0010 | 产品类别 | Modular Connectors / Ethernet Connectors |
| 标准包装数量 | Bulk | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 海关税号 | 85369010 |
| 材料阻燃等级 | UL 94 V-0 | ||
机械参数
| 颜色 | Green | 重量 | 0.082 |
| 包装方式 | Bulk | 屏蔽 | Unshielded |
| 重量（g） | 71.60000 | 安装类型 | Cable Mount |
| 连接器类型 | Housing for Prewired RJ45 Cordset | 接触镀层 | Nickel |
| 紧固类型 | Threaded | 触头材料 | :- |
| 第一连接器安装类型 | :Cable | ||
产品信息
| 备注 | Plug Not Provided | 类型 | RJ-45 |
| 连接器性别 | PL | 系列 | RJFTV |
| 产品特性 | Shock Resistant, Toolless, Vibration Resistant | USOC 编码 | RJ45 |
| 端口数 | 1 | ||
环境参数
| 插拔次数 | 500 | 防护等级 | IP67 - Dust Tight, Waterproof |
| 工作温度 | -40°C ~ 85°C | ||
文档与媒体
相关型号
RJFTVC6G
amphenol pcd
Connector Accessories Metallic Cap Plug Olive Drab Cadmium CONN ACCY CAP OLIVE Modular Connectors / Ethernet Connectors Metallic Plug Cap Olive Drab connector accessory, rj field tv, cap forstraight plug(thread coupling), green
RJFTV6MG
amphenol pcd
Conn RJ-45 PL 8 POS ST Cable Mount 8 Terminal 1 Port Cat 5e CONN MOD HOUSING RJ45 UNSHIELDED Modular Connectors / Ethernet Connectors RJF TV PLUG OLIVE METAL GLAND PLUG, RJ45, RJF TV, METAL GLAND connector, metal circular, str plug w/metal gland, rj45 ethernet, olive drab finish
RJFTV2PEM1G
amphenol pcd
Conn RJ-45 RCP 8 POS ST Panel Mount 8 Terminal 1 Port Cat 5e COUPLER MODULAR 8POS-8POS Modular Connectors / Ethernet Connectors RJF TV PM RECPT METAL GLAND BS OLIVE RECEPT, PANEL, RJ45, IP67, RJF TV connector, metal circular, recept w/bkshl, metal gland, rj45 ethernet, olive drab

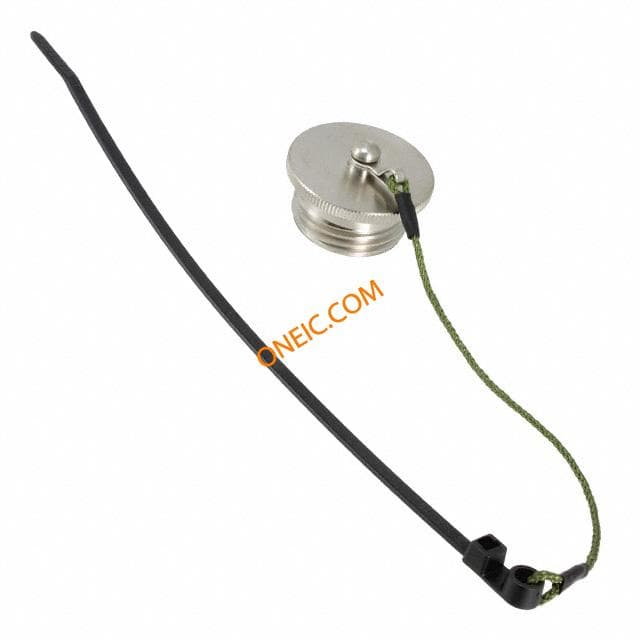

RJFTVC6N
amphenol pcd
Connector Accessories Metallic Cap Plug Nickel CONN ACCY CAP Cap for cable plug,nickel Modular Connectors / Ethernet Connectors Metallic Plug Cap Nickel connector accessory, rj field tv, cap forstraight plug(thread coupling), nickel
RJFTVC7N
amphenol pcd
Connector Accessories Metallic Cap Jam Nut Receptacle Nickel CONN ACCY CAP Cap for jam nut recept,nickel Modular Connectors / Ethernet Connectors Jam Nut Recept Cap Nickel DUST CAP, RECEPT, RJF TV, ALUMINIUM connector accessory, rj field tv, cap forjam nut receptacle(thread), nickel finish
RJF TV 6M G
AMPHENOL
