点击放大查看
132102
| 制造商 | |
| 描述 | RF Connectors SMA STRAIGHT PLUG .141 S/R GOLD Conn SMA PL 0Hz to 18GHz 50Ohm Solder ST Cable Mount Gold CONN SMA PLUG STR 50 OHM SOLDER connector;rf coaxial;sma str solder plug w/contact;for 0.141 semi-rigid;50 ohm RF Connectors / Coaxial Connectors SMA STRAIGHT PLUG .141 S/R GOLD RF/COAXIAL, SMA PLUG, STR, 50 OHM, SOLDER connector, rf coaxial, sma str solder plug w/contact, for 0.141 semi-rigid, 50 ohm |
| 分类 |
商业参数
| 产品 | Connectors | 其他名称 | ACX1176 |
| 零件号别名 | 319-0141 66H7627 | 产品类别 | RF Connectors / Coaxial Connectors |
| 标准包装数量 | 1 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 欧盟RoHS | Compliant |
| 海关税号 | 85366910 | 抗辐射加固 | No |
电气参数
| 频率 | 0 to 18 Hz | 阻抗 | 50 Ohm |
| 耦合系数 | Threaded | 最大频率 | 18GHz |
机械参数
| 深度 | 8 mm | 重量 | 0.083952 oz |
| 直径 | Not Required mm | 包装方式 | Bulk |
| 电缆类型 | RG-402/U, 0.141 Semi-Rigid | 本体表面处理 | Gold |
| 电缆组 | RG-402 (.141" Semi Rigid) | 方向 | Straight |
| 端接方式 | Solder | 基体材料 | Brass |
| 外壳颜色 | Gold | 安装类型 | Cable Mount |
| 行程角度 | Straight | 连接器类型 | Plug, Male Pin |
| 接触镀层 | Gold | 紧固类型 | Threaded |
| 外壳涂层 | Gold | 安装样式 | Cable |
| 壳体镀层 | Gold | 连接器样式 | SMA |
| 连接器用途 | Threaded | 触头材料 | Brass |
| 壳体材料 | Brass | 总长度 | 11.2 mm |
| 主要材料 | SMA | 端接样式 | Cable - Solder |
| 屏蔽层端接方式 | Solder | 接触件端接 | Solder |
| 介电材料 | Polytetrafluoroethylene (PTFE) | 绝缘材料 - 类型 | Polytetrafluoroethylene |
| 中心触点镀层工艺 | Gold | 中心触点材料 | Brass |
| 供应商器件封装 | Straight | ||
产品信息
| 类型 | SMA | 连接器性别 | PL |
| 极性 | Standard | 连接类型 | Semi-Rigid Cable |
| 射频系列/标准 | SMA | 应用细节 | Commercial |
环境参数
| 插拔次数 | 500 | 防护等级 | Weatherproof |
| 工作温度 | -65°C ~ 165°C | ||
文档与媒体
相关型号
901-9808
amphenol
Conn SMA PL 0Hz to 18GHz 50Ohm ST Cable Mount Gold Over Nickel CONN SMA PLUG STR 50 OHM SOLDER connector;rf coaxial;sma str plug;solder/plugable;for 0.141 semi-rigid;gold plt RF Connectors / Coaxial Connectors STRT PLG .141S/R GLD connector, rf coaxial, sma str plug, solder/plugable, for 0.141 semi-rigid, gold plt
132348
amphenol connex
Connector Accessories SMA Female Cap with Chain Brass Gold Finish RF Connectors SMA FEMALE CAP WITH CHAIN CONN FEMALE CAP W/CHAIN SMA RF Connector Accessories SMA FEMALE CAP WITH CHAIN Coaxial/RF; Cap-w/Chain; SMA; Protective; Male; Brass; forSMAFemale; Straight

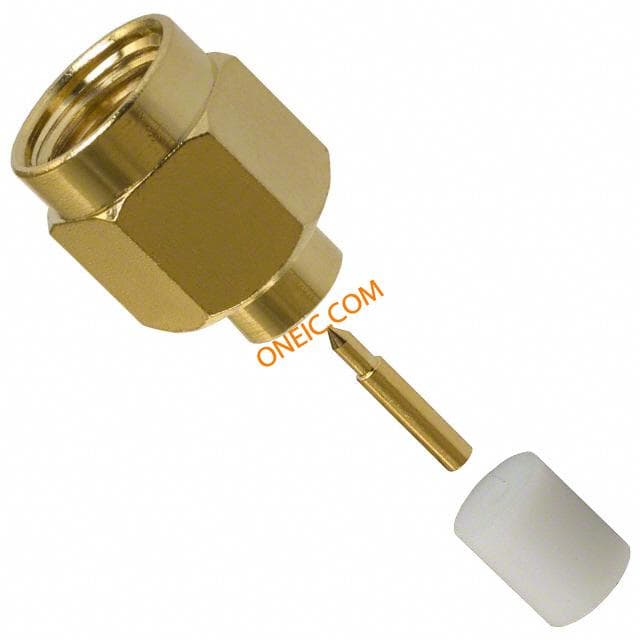

901-9868-RFX
