112507
| 制造商 | |

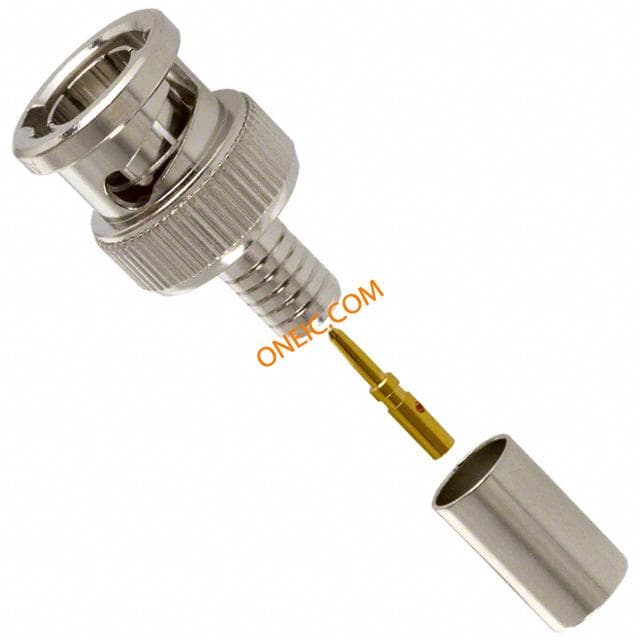

| 描述 | Conn BNC PL 0Hz to 1GHz 75Ohm Crimp ST Cable Mount Gold CONN BNC PLUG STR 75 OHM CRIMP connector;rf coaxial;bnc str crimp plug;captive cont;for rg59;62 20awg cc;75 ohm RF Connectors / Coaxial Connectors BNC CRIMP PLUG RG 59/U-75 OHM RF/COAXIAL, BNC PLUG, STR, 75 OHM, CRIMP connector, rf coaxial, bnc str crimp plug, captive cont, for rg59, 62 20awg cc, 75 ohm |
| 分类 |
商业参数
| 产品 | Connectors | 其他名称 | ACX1005 |
| 零件号别名 | 08H0102 319-0005 | 产品类别 | RF Connectors / Coaxial Connectors |
| 标准包装数量 | Bag | 工厂包装数量 | 100 |
合规参数
| RoHS | Lead free / RoHS Compliant | 欧盟RoHS | Compliant |
| 海关税号 | 85366910 | ||
电气参数
| 频率 | 0 to 1 GHz | 阻抗 | 75 Ohm |
| 额定电压 | 500V | 耦合系数 | Bayonet |
| 最大频率 | 4GHz | ||
机械参数
| 重量 | 0.349918 oz | 直径 | 14.5 |
| 包装方式 | Bulk | 电缆类型 | RG-59/U, Belden 1515, Belden 9104, Belden 9108 |
| 本体表面处理 | Nickel | 电缆组 | RG-59, 20AWG |
| 方向 | Straight | 端接方式 | Crimp |
| 重量（g） | 12.00000 | 基体材料 | Brass |
| 外壳颜色 | Silver | 安装类型 | Cable Mount |
| 行程角度 | Straight | 连接器类型 | Plug, Male Pin |
| 接触镀层 | Gold | 紧固类型 | Bayonet Lock |
| 外壳涂层 | Nickel | 壳体镀层 | Nickel |
| 连接器样式 | BNC | 连接器用途 | Bayonet |
| 触头材料 | Brass | 壳体材料 | Brass |
| 总长度 | 25 | 主要材料 | BNC |
| 端接样式 | Cable - Crimp | 屏蔽层端接方式 | Crimp |
| 接触件端接 | Crimp | 介电材料 | Polyoxymethylene (POM) Acetal |
| 绝缘材料 - 类型 | Delrin | 中心触点镀层工艺 | Gold |
| 中心触点材料 | Brass | 供应商器件封装 | :Straight Plug |
产品信息
| 类型 | BNC | 连接器性别 | PL |
| 产品特性 | Captivated Contact | 极性 | Standard |
| 连接类型 | RG59/U Cable | 射频系列/标准 | 112507 |
| 应用细节 | Commercial | ||
环境参数
| 插拔次数 | 500 | 工作温度 | - 40 C to + 155 C |
