点击放大查看

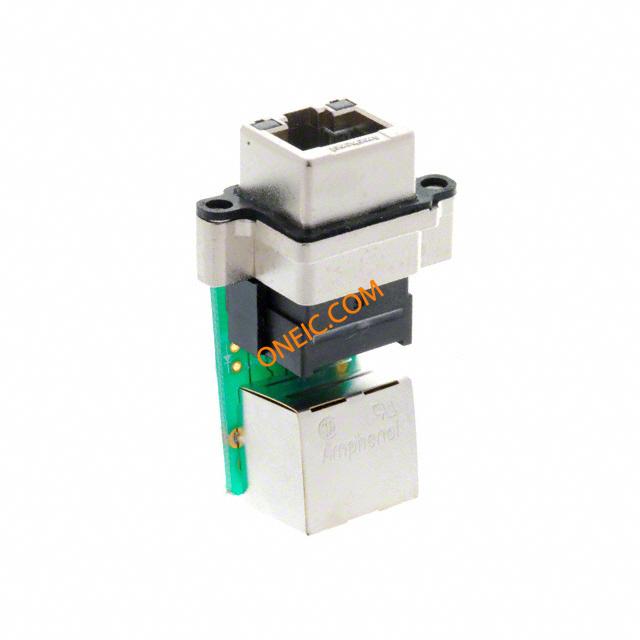

MRJ-5780-01
| 制造商 | |
| 描述 | Modular Connectors / Ethernet Connectors RJ45 PCB RECPT RA IP67 W/RJ45 TERMINAT COUPLER MODULAR 8POS-8POS connector;rj45 receptacle;pcb mount;right angle;w/rj 45 termination;no leds;ip67 RECEPTACLE, RJ45, R/A, CAT5E, 1PORT connector, rj45 receptacle, pcb mount, right angle, w/rj 45 termination, no leds, ip67 |
| 分类 |
商业参数
| 其他名称 | MRJ578001 | 零件号别名 | 01M3135 720-3126 |
| 产品类别 | Modular Connectors / Ethernet Connectors | 标准包装数量 | 20 |
| 工厂包装数量 | 20 | ||
合规参数
| RoHS | Compliant | 海关税号 | 85369010 |
电气参数
| 额定电压 | 100 V | 最大额定电流 | 1.5 A |
机械参数
| 颜色 | Black | 重量 | 0.018 |
| 屏蔽 | Shielded | 重量（g） | 2.40000 |
| 安装类型 | Panel Mount; Through Hole, Right Angle | 行程角度 | Right |
| 连接器类型 | :RJ45 | 接触镀层 | Gold |
| 触头材料 | Phosphor Bronze | 壳体材料 | Metal |
| 主要材料 | Modular | 触点数 | :8 |
| 接触件端接 | :Through Hole Right Angle | 外壳材料及表面处理 | Zinc, Nickel Plated |
| 接触镀层厚度 | 50µin (1.27µm) | ||
产品信息
| 类型 | Coupler | 连接器性别 | Female |
| 系列 | MRJ | USOC 编码 | RJ45 |
| 性能 | Cat 5 | 制造商全称 | MRJ |
| 规格说明 | RJ45 | 端口数 | 1 |
| 性能类别 | Cat 5e | 转换端（适配器端） | Jack, 8p8c (RJ45) |
| 转换自（适配器端） | Jack, 8p8c (RJ45) | ||
环境参数
| 额定等级 | Cat5e | 密封等级 | IP67 |
| 防护等级 | IP67 - Dust Tight, Waterproof | 工作温度 | -40°C ~ 105°C |
文档与媒体
相关型号
MRJ-2586-10BP
amphenol canada, corp.
Connector Accessories Dust Cover For Receptacle Connector Gray CONN ACCY DUST CAP GRAY DustCover; Accessory; forRJ45Connector; MRJSeries Protection cover; IP67
MRJ-2586-20BP
Amphenol Commercial Products
Modular Connectors / Ethernet Connectors RJ RUGGED DUST COVER CONN ACCY DUST CAP BLACK MRJ SERIES DUST COVER BLACK
MRJ258610BP
Amphenol Commercial Products
モジュラーコネクタ/Ethernetコネクタ RJ45 dust cover Connector Accessories Dust Cover For Receptacle Connector Gray MRJ, Dust cap, receptacles, grey Modular Connectors / Ethernet Connectors RJ45 dust cover DUST CAP, RJ45, GREY connector accessory, rugged i/o, dust cover for rj45 receptacle Amphenol RJ 连接器防尘盖
MRJ-5780-01
Amphenol Commercial Products
Modular Connectors / Ethernet Connectors RJ45 PCB RECPT RA IP67 W/RJ45 TERMINAT COUPLER MODULAR 8POS-8POS connector;rj45 receptacle;pcb mount;right angle;w/rj 45 termination;no leds;ip67 RECEPTACLE, RJ45, R/A, CAT5E, 1PORT connector, rj45 receptacle, pcb mount, right angle, w/rj 45 termination, no leds, ip67

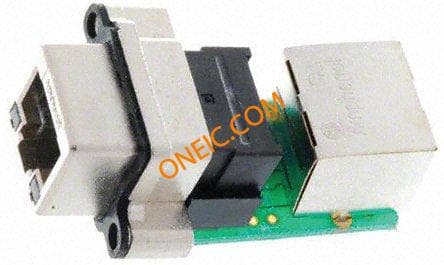

MRJ578001
