点击放大查看

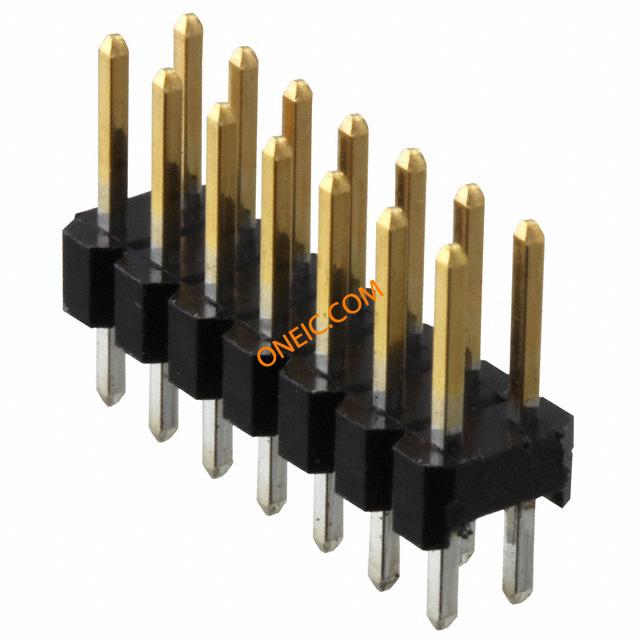

2314-6121-TG
| 制造商 | 3M Company |
| 描述 | CONN HEADER 14POS STR .230" GOLD |
| 分类 |
商业参数
| 标准包装数量 | 500 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | ||
机械参数
| 颜色 | Black | 间距 | 0.100" (2.54mm) |
| 包装方式 | Bulk | 排间距 | 0.100" (2.54mm) |
| 端接方式 | Solder | 触头类型 | Male Pin |
| 安装类型 | Through Hole | 连接器类型 | Header, Unshrouded |
| 接触镀层 | Gold | 排数 | 2 |
| 位数 | 14 | 接触长度 - 配合 | 0.230" (5.84mm) |
| 接触镀层厚度 | 10µin (0.25µm) | ||
产品信息
| 加载位置数 | All | ||
相关型号
CHG-2014-001010-KEP
3M Electronic Solutions Division
Headers & Wire Housings 14P 2 ROW IDC SOCKET .100" Ã .100" Pak 100 Wiremount, Two Row for .100" Pitch Notched Flat Cable or Discrete Wire CONN RECEPT IDC 14POS 24-22 AWG
CHG-2014-J01010-KEP
3M Electronic Solutions Division
Headers & Wire Housings 14P PLRZD IDC SOCKET .100" Ã .100" Polarized Wiremount, 2 row for .100" Pitch Notched Flat Cable or Discrete Wire CONN RECEPT IDC 14POS 24-22 AWG WIRE-BOARD CONN, SOCKET, 14POS, 2.54MM
CHG-2014-J01010-KCP
3M Electronic Solutions Division
Headers & Wire Housings 14P PLRZD IDC SOCKET .100" Ã .100" Polarized Wiremount, 2 row for .100" Pitch Notched Flat Cable or Discrete Wire CONN RECEPT IDC 14POS 28-26 AWG
939852-01-07-RA
3M Electronic Solutions Division
Headers & Wire Housings .100 BRDMNT SKT+BRF GLD 07 CNTCT 10 G/T .100" and .100" Ã .100" Straight, Solder Tails, 1 row (1-40 contacts) or 2 row (2-80 contacts) CONN RCPT 14POS DL STR .100" AU
CHG-2014-001010-KCP
3m interconnect solutions
Conn IDC Connector SKT 14 POS 2.54mm IDT ST Cable Mount .100" Ã .100" Pak 100 Wiremount, Two Row for .100" Pitch Notched Flat Cable or Discrete Wire CONN RECEPT IDC 14POS 28-26 AWG
