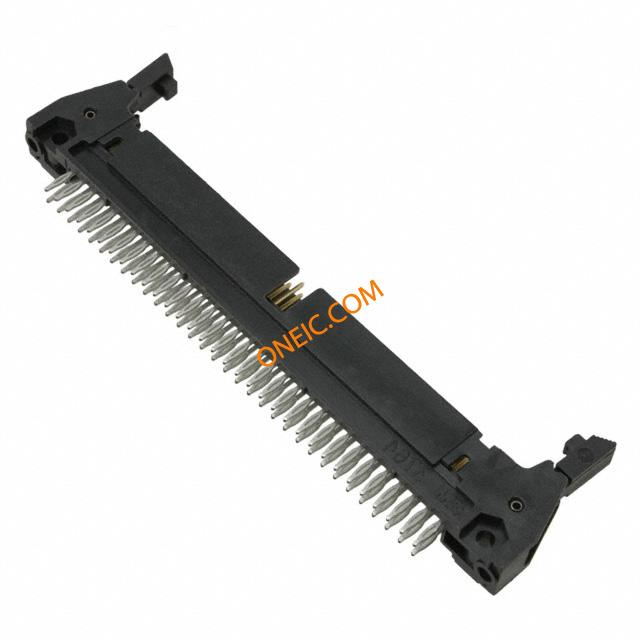

点击放大查看
N3764-630T02RB
| 制造商 | 3M Company |
| 描述 | Conn Ejector Header HDR 64 POS 2.54mm Press Fit ST Thru-Hole .100" Ã .100" Latch/Ejector, Straight, Compliant Pin CONN HEADER 64POS STR LONG LATCH Headers & Wire Housings 64P 4-WALL HDR .100IN |
| 分类 |
商业参数
| 零件号别名 | 05111165990 80000902660 | 产品类别 | Headers & Wire Housings |
| 标准包装数量 | Bulk | 工厂包装数量 | 100 |
合规参数
| RoHS | Lead free / RoHS Compliant | RoHS合规（认证） | Yes |
机械参数
| 颜色 | Black | 间距 | 2.54 mm |
| 包装方式 | Bulk | 排间距 | 0.100" (2.54mm) |
| 端接方式 | Press Fit | 触头类型 | Male Pin |
| 安装类型 | Through Hole | 连接器类型 | Header, Shrouded |
| 接触镀层 | Gold Over Nickel | 紧固类型 | Latch, Long/Eject Hooks |
| 排数 | 2 | 触点数 | 64 |
| 位数 | 64 | 接触长度 - 配合 | 0.240" (6.10mm) |
| 接触镀层厚度 | 30µin (0.76µm) | ||
产品信息
| 类型 | Ejector Header | 连接器性别 | HDR |
| 系列 | 3000 | 产品子类型 | Headers |
| 加载位置数 | All | ||
