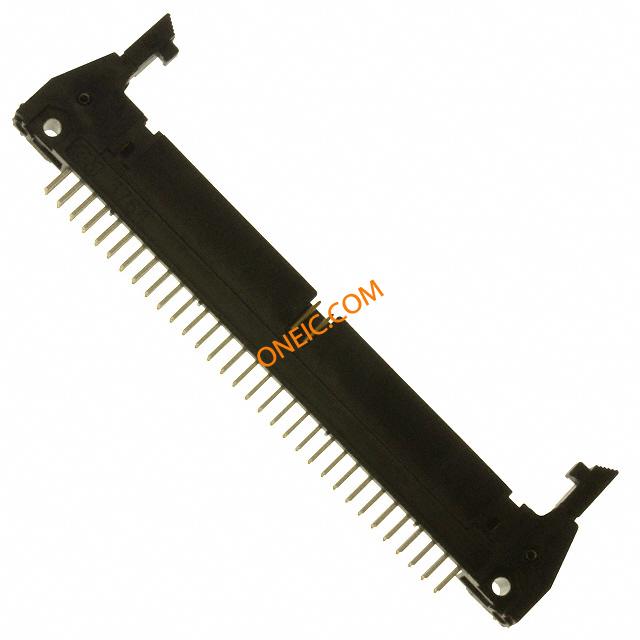

点击放大查看
N3764-6303RB
| 制造商 | 3M Company |
| 描述 | Conn Ejector Header HDR 64 POS 2.54mm Solder ST Thru-Hole .100" Ã .100" Latch/Ejector, Straight and Right Angle CONN HEADER 64POS STR LONG LA 3M 3000 Series 2.54mm Pitch 64 Way 2 Row Straight PCB Header, Solder Termination, 5A Headers & Wire Housings BOARDMT HDR 64P HEADER, STRAIGHT, L/LATCH, 64WAY HeaderBox3000Series64way 3M 3000 系列 2.54mm节距 64路 (2排) 直 PCB 针座, 焊接端接, 5A , 通孔 64P WALL HEADER LONG LAT/EJE |
| 分类 |
商业参数
| 零件号别名 | 05111165820 80000901233 | 产品类别 | Headers & Wire Housings |
| 标准包装数量 | Bulk | 工厂包装数量 | 100 |
合规参数
| RoHS | Lead free / RoHS Compliant | 海关税号 | 85366990 |
电气参数
| 量程（°/s） | :3M - 3000 Series | 最大额定电流 | 5A |
机械参数
| 颜色 | Black | 间距 | 2.54 mm |
| 重量 | 0.107 | 包装方式 | Bulk |
| 排间距 | 0.100" (2.54mm) | 端接方式 | Solder |
| 触头类型 | Male Pin | 安装类型 | Through Hole |
| 连接器类型 | Header, Shrouded | 接触镀层 | Gold Over Nickel |
| 紧固类型 | Latch, Long/Eject Hooks | 排数 | 2 |
| 触头材料 | Copper Alloy | 壳体材料 | Polyester |
| 端接样式 | Through Hole | 触点数 | 64 |
| 接触件端接 | :Through Hole Vertical | 位数 | 64 |
| 接触长度 - 配合 | 0.240" (6.10mm) | 接触镀层厚度 | 30µin (0.76µm) |
产品信息
| 类型 | Ejector Header | 连接器性别 | HDR |
| 系列 | 3000 | 产品子类型 | Headers |
| 加载位置数 | All | ||
相关型号
7964-6500EC
3M Electronic Solutions Division
Headers & Wire Housings 64P WIREMOUNT SOCKET .100" Ã .100" Wiremount, 64 Position for .050" Pitch Cable IDC SOCKET CONN 64 POS GOLD 64 way IDC bump polarised socket Conn IDC Connector SKT 64 POS 2.54mm IDT RA Cable Mount SOCKET, IDC, 64WAY Socket,PLClip,64position Multipole socket DIN 41651 64P, 7964-6500EC, 3M 3M 2行 64路 2.54mm节距 直角 电缆安装 母 IDC 连接器

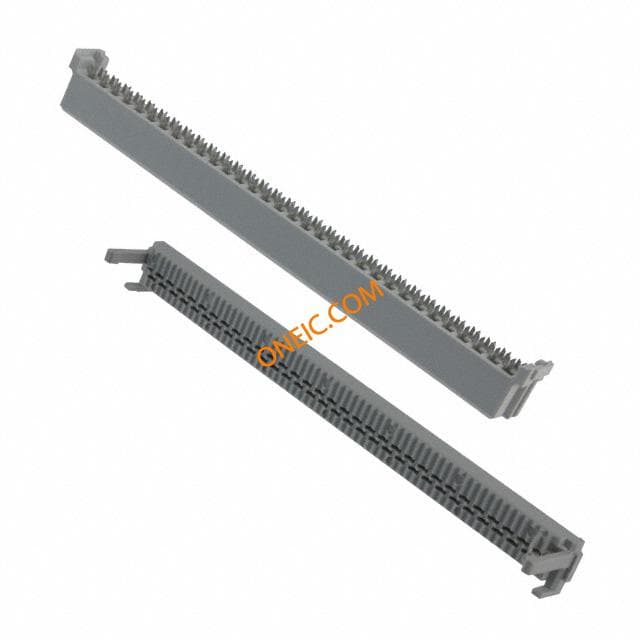

62B64-1000EC
3m interconnect solutions
Conn IDC Connector SKT 64 POS 2.54mm IDT RA Cable Mount .100" x .100" Version, Type B (Rows A and B Filled) CONN EUROSOCKET 64POS 30GOLD 64/64 way IDC cable socket w/o mount ear DIN 41612 Connectors .100 X 100 EUROSOCKET SOCKET, IDC, DIN41612, 64WAY IDCDIN4161264/64W 3M 62B64 系列 2行 64路 2.54mm节距 直角 电缆安装 母 IDC 连接器
CHG-2064-001010-KCP
3m interconnect solutions
64/2R/WM SKT/.100/28AWG/30 GOLD CONN RECEPT IDC 64POS 28-26 AWG Headers & Wire Housings 64/2R/WM SKT/.100 28AWG/30 GOLD
3341-5
3m interconnect solutions
Connector Accessories Header Mounting Hardware D-Sub Tools & Hardware PAN HD CUT SCREW Headers & Wire Housings PAN HD CUT SCREW SCREW PANHEAD THRD CUT 4-24X5/16 Self tapping mounting screws for header SCREW, PAN HEAD MOUNTINGSCREW 3M 自攻安装螺钉, 使用于管座
9164-4500PL
3m interconnect solutions
Conn Socket Strip SKT 64 POS 2.54mm Solder ST Thru-Hole .100" Ã .100" Centerbump Polarization with Straight Solder Tails, 20 - 64 contacts CONN SOCKET 64POS .100" STR GOLD Headers & Wire Housings POLARIZED BDMNT SCKT 64 PIN
CHG-2064-J01010-KCP
3m interconnect solutions
Conn IDC Connector SKT 64 POS 2.54mm Crimp ST Cable Mount .100" Ã .100" Polarized Wiremount, 2 row for .100" Pitch Notched Flat Cable or Discrete Wire CONN RECEPT IDC 64POS 28-26 AWG Headers & Wire Housings 64P PLR WIREMNT SKT 2R W/CENTERBUMP
CHG-2064-S01010-KEP
3M Electronic Solutions Division
ヘッダ & ワイヤハウジング 64/2R/WM SKT/.110/ POL/22G/30G .100" Ã .100" Polarized Wiremount, 2 row for .100" Pitch Notched Flat Cable or Discrete Wire CONN RCPT IDC 64POS 24-22AWG Headers & Wire Housings 64/2R/WM SKT/.110/ POL/22G/30G

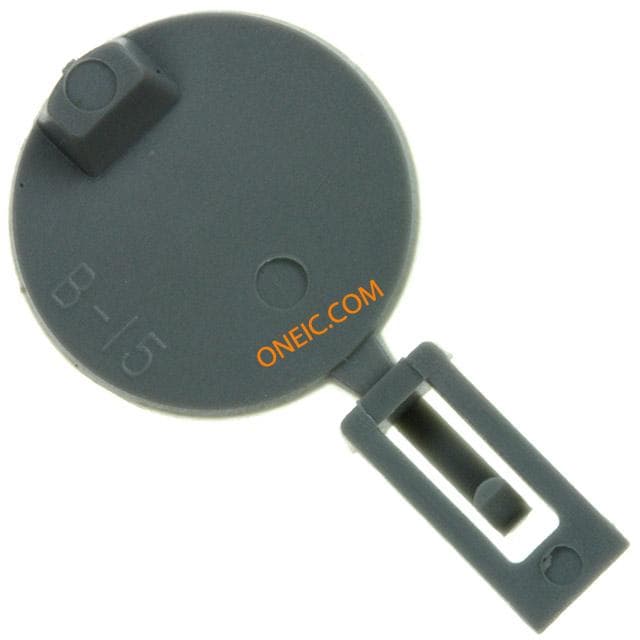

3518
3M Electronic Solutions Division
ヘッダ & ワイヤハウジング POLARIZING KEY .100" Ã .100" Low Profile, SMT Straight, Straight and Rt Angle Through-Hole, 2500 Series KEY POLARIZING GRAY POLY (PBT) Headers & Wire Housings POLARIZING KEY Connector Accessories Polarizing Key Polybutylene Terephthalate Gray Accessory,PlugConnector;PolarizingKey;Wiremountsocket Coding pins PU=10 ST, 3518, 3M
CHG-2064-J01010-KEP
3M Electronic Solutions Division
ヘッダ & ワイヤハウジング WIREMT SKT 64 POSITION .100" Ã .100" Polarized Wiremount, 2 row for .100" Pitch Notched Flat Cable or Discrete Wire CONN RECEPT IDC 64POS 24-22 AWG Headers & Wire Housings WIREMT SKT 64 POSITION WIRE-BOARD CONN, SOCKET, 64POS, 2.54MM
CHG-2064-001010-KEP
3M Electronic Solutions Division
Headers & Wire Housings 64 CONTACTS 26/28AWG SOLID/STRANDED CONN RECEPT IDC 64POS 24-22 AWG

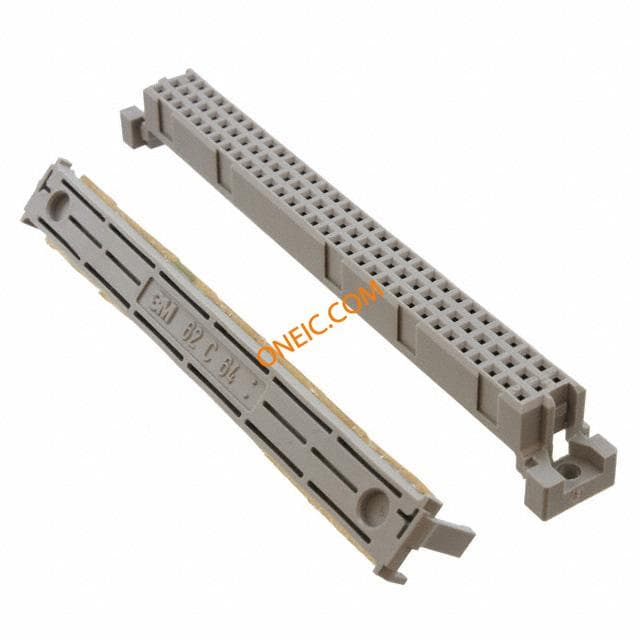

62C64-1101EC
