点击放大查看

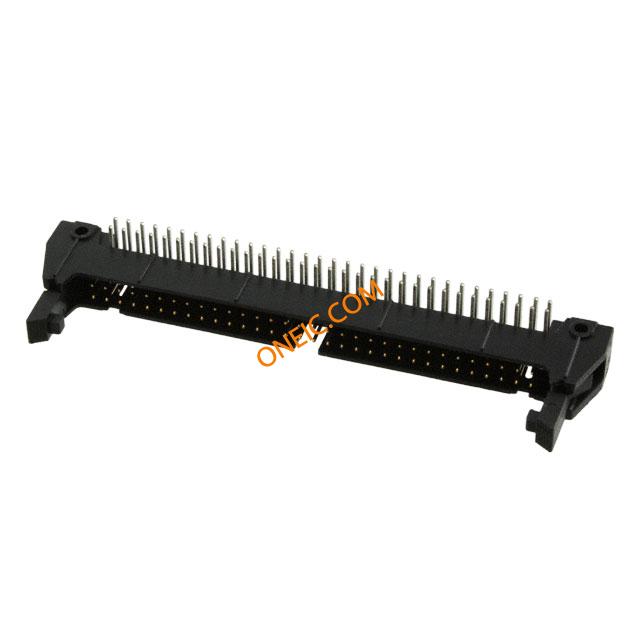

N3764-5302RB
| 制造商 | 3M Company |
| 描述 | Conn Ejector Header HDR 64 POS 2.54mm Solder RA Thru-Hole .100" Ã .100" Latch/Ejector, Straight and Right Angle CONN HEADER 64POS R/A LONG LA 3M 3000 Series 2.54mm Pitch 64 Way 2 Row Right Angle PCB Header, Solder Termination, 2A Headers & Wire Housings 64P R/A LONG PIN SOLDER TAIL 30u GOLD |
| 分类 |
商业参数
| 零件号别名 | 05111164898 80400031987 | 产品类别 | Headers & Wire Housings |
| 标准包装数量 | Bulk | 工厂包装数量 | 100 |
合规参数
| RoHS | Lead free / RoHS Compliant | RoHS合规（认证） | Yes |
电气参数
| 最大额定电流 | 2A | ||
机械参数
| 颜色 | Black | 间距 | 2.54 mm |
| 包装方式 | Bulk | 排间距 | 0.100" (2.54mm) |
| 端接方式 | Solder | 触头类型 | Male Pin |
| 安装类型 | Through Hole, Right Angle | 连接器类型 | Header, Shrouded |
| 接触镀层 | Gold Over Nickel | 紧固类型 | Latch, Long/Eject Hooks |
| 排数 | 2 | 触头材料 | Copper Alloy |
| 端接样式 | Through Hole | 触点数 | 64 |
| 位数 | 64 | 接触长度 - 配合 | 0.240" (6.10mm) |
| 接触镀层厚度 | 30µin (0.76µm) | ||
产品信息
| 类型 | Ejector Header | 连接器性别 | HDR |
| 系列 | 3000 | 产品子类型 | Headers |
| 加载位置数 | All | ||
