点击放大查看
N2510-5002RB
| 制造商 | 3M Company |
| 描述 | Conn Shrouded Header HDR 10 POS 2.54mm Solder RA Thru-Hole 10P FOUR WALL HEADER 3M 2500 Series 2.54mm Pitch 10 Way 2 Row Right Angle PCB Header, Solder Termination, 2A Headers & Wire Housings 10P R/A SOLDER TAIL HIGH TEMP HEADER, RIGHT ANGLE, 10WAY Socket; IDC; male; PIN:10; angled 90°; THT; gold plated; 2A; 2.54mm Pin header DIN 41651 10P, N2510-5002RB, 3M 3M 2500 系列 2.54mm节距 10路 (2排) 直角 PCB 针座, 焊接端接, 2A , 通孔 |
| 分类 |
商业参数
| 最小起订量 | 784 | 单位包装 | 784 |
| 零件号别名 | 05111162721 80400031292 | 产品类别 | Headers & Wire Housings |
| 标准包装数量 | Bulk | 工厂包装数量 | 100 |
合规参数
| RoHS | Compliant | 海关税号 | 85369010 |
| 无铅定义 | RoHS-conform | 认证机构 | UL E68080 |
| 材料阻燃等级 | :UL94V-0 | ||
电气参数
| 量程（°/s） | :3M - 2500 Series | 额定电压 | 1000V |
| 工作电压 | :350V | 接触电阻 | :20mohm |
| 最大额定电流 | 5A | 绝缘电阻 | :1000Mohm |
机械参数
| 深度 | 12.44 mm | 间距 | 2.54 mm |
| 高度 | 8.59 mm | 重量 | 0.002 |
| 出线方向 | NO | 方向 | angled 90° |
| 端接方式 | Solder | 触头类型 | FEMALE |
| 引脚间距 | :2.54mm | 柱间距 | 2.54mm |
| 外壳颜色 | Black | 安装类型 | Right Angle |
| 连接器类型 | male | 接触镀层 | Gold Over Nickel |
| 安装样式 | Through Hole | 排数 | 2 |
| 触头材料 | Copper Alloy | 总长度 | 20.02 mm |
| 包装数量 | 784 | 连接器 - 电缆 | socket |
| 端接样式 | IDC | 连接器颜色 | :Black |
| 触点数 | 10 | 接触件端接 | :Through Hole Right Angle |
| 位数 | 10 | 安装孔直径 | :0.89mm |
| 触点材料 - 镀层 | GOLD | 第一连接器安装特征 | 2x5 |
产品信息
| SPG | 784 | 类型 | Shrouded Header |
| 连接器性别 | HDR | 系列 | 2500 |
| 匹配码 | N25105002RB | CAD图纸 | 3D CAD Model |
| 产品子类型 | Headers | 单元数量 | 1 |
| 标准交期 | 6 weeks | 其他规格 | NO |
环境参数
| 插拔次数 | 1 | 测试温度 | :70°C |
| 工作温度 | -55 TO 105°C | ||
相关型号
2-1761605-3
te connectivity / amp
Conn Shrouded Header HDR 10 POS 2.54mm Solder RA Thru-Hole Pin and Pinless Headers (AMP-LATCH) CONN HEADER LOPRO R/A 10POS 30AU TE Connectivity AMP LATCH Series 2.54mm Pitch 10 Way 2 Row Right Angle PCB Header, Solder Termination, 1A Headers & Wire Housings IDC LOW PRO HDR 10P RA BLUE Conn Shrouded Header HDR 10 POS 2.54mm Solder RA Thru-Hole Product Highlights:Connector Type = Pin HeaderLow ProfileNumber of Positions = 102.54 x 2.54 mm Centerline, MatrixPCB Mount Angle = Right AngleSearch Keywords:ribbon cable connector system, input/output, LATCH Universal Header, HEADER, R/A, 10WAY HEADER,PIN,IDC,AMP-LATCH,10POS,LOWPROFILE,PCB,RIGHTANGLE,BLUE TE Connectivity AMP-LATCH 系列 2.54mm节距 10路 (2排) 直角 PCB 针座, 焊接端接, 1A , 通孔 IDC LOW PRO HDR 10P RA BLUE
8510-4500PL
3m interconnect solutions
Conn Socket Strip SKT 10 POS 2.54mm Solder ST Thru-Hole STRAIGHT BM SOCKET 10P .100" Ã .100" Centerbump Polarization with Straight Solder Tails, 10 - 64 contacts CONN SOCKET PCB VERT 10POS .1" 3M 2.54mm 10 Way 2 Row Straight PCB Socket Through Hole Socket Strip Headers & Wire Housings 10P STRT PLRZD SKT RECEPTACLE, THT, 2.54MM, 2ROW, 10WAY PolarizedBoardmountSocket(10pos).100centerlinestraightsoldertails Socket; IDC; female; PIN:10; straight; THT; gold plated; 3A; 2.54mm 3M 8500 系列 2行 10路 直 2.54mm节距 通孔 印刷电路板插座, 插座板

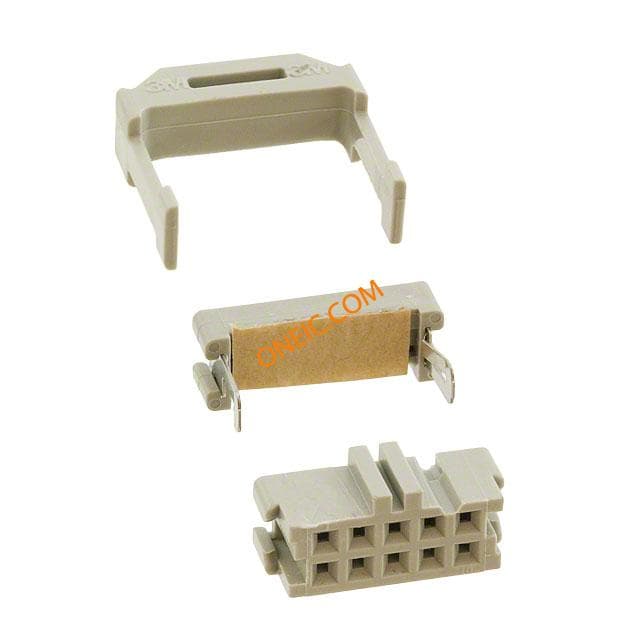

3473-6610
